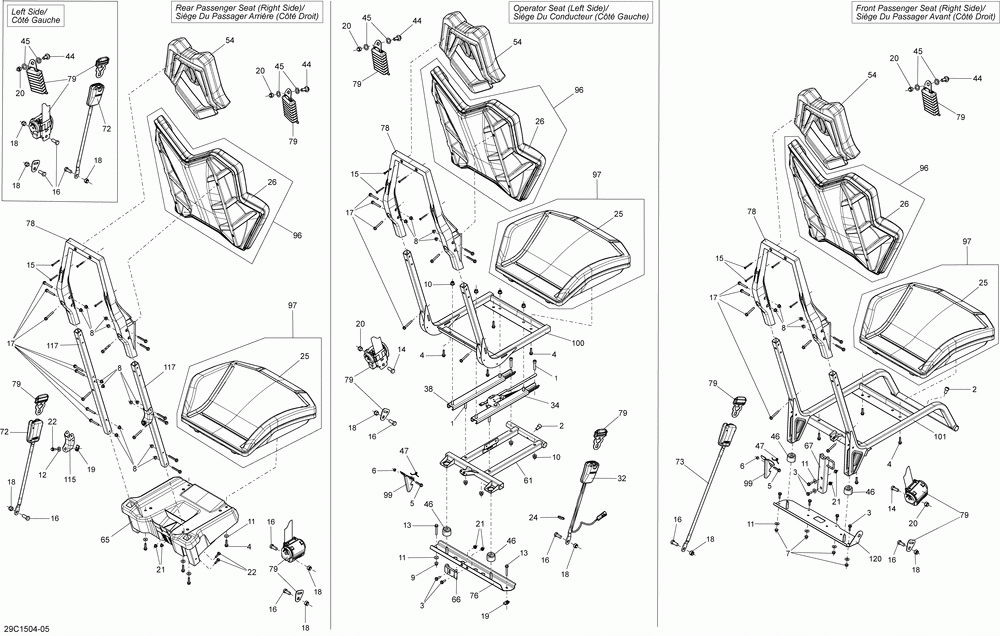

Сидение

Cam-am Commander MAX 1000_LTD
Cam-am
#oem кодцена
1
205084044
Socket Head Screw M8 X 40 (5.000 Per Pack)
2
205501644
Socket Screw M10 X 16
3
207562054
Flanged Hex. Screw S.grip M6 X 20
4
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
5
207663034
Винт M6 X 30 (5 шт в упаковки)
6
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
7
233061414
Hex. Flanged Nut M6 (10.000 Per Pack)
8
233161464
Hex. Elastic Flange Nut M6
9
233261414
Резиновая гайка фиксатор М6
10
233281414
Гайка М8
11
234062670
Flat Washer (10.000 Per Pack)
12
234281474
Conical Spring Washer M8 (10.000 Per Pack)
13
250000213
Hex. Flanged Screw M6 X 1.0 X 45 (5.000 Per Pack)
14
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
15
250000490
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
16
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
17
250000672
Screw-hex.flange Din.6921s.grip
18
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
19
250100171
Panel Nut M6 X 1.0
20
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
21
293450274
Вставка
22
207562054
Flanged Hex. Screw S.grip M6 X 20
24
293750008
Tie-rap 350 Mm Model-north America, International (10.000 Per Pack)
25
708001103
Seat Cover
26
708000675
Backrest Cover
32
708000987
Driver Buckle Side Model-north America, International
34
708001739
Rh Rail
38
708000848
Lh Rail
44
708000890
Safety Belt Screw
45
708000891
Position Washer
46
708001671
Резиновый Бампер
47
708000921
Пружина
54
708001074
Head Rest
61
708001174
Seat Member
65
708001198
Seat Support
66
708001212
Фиксатор
67
708001213
Фиксатор
72
708001205
Rear Passenger Buckle
73
708001206
Passenger Buckle Side
76
708001214
Seat Support
78
708001245
Seat Support
79
708001302
Safety Belt Model-north America, International
96
708001316
Backrest Ass Y
97
708001318
Cushion Ass Y
99
708001355
Seat Latch
100
708001356
Operator Seat Frame
101
708001357
Passenger Seat Frame
115
708001474
Ancrage *anchor
117
708001476
Tube Lateral *lateral Tube
120
708001804
Суппорт
