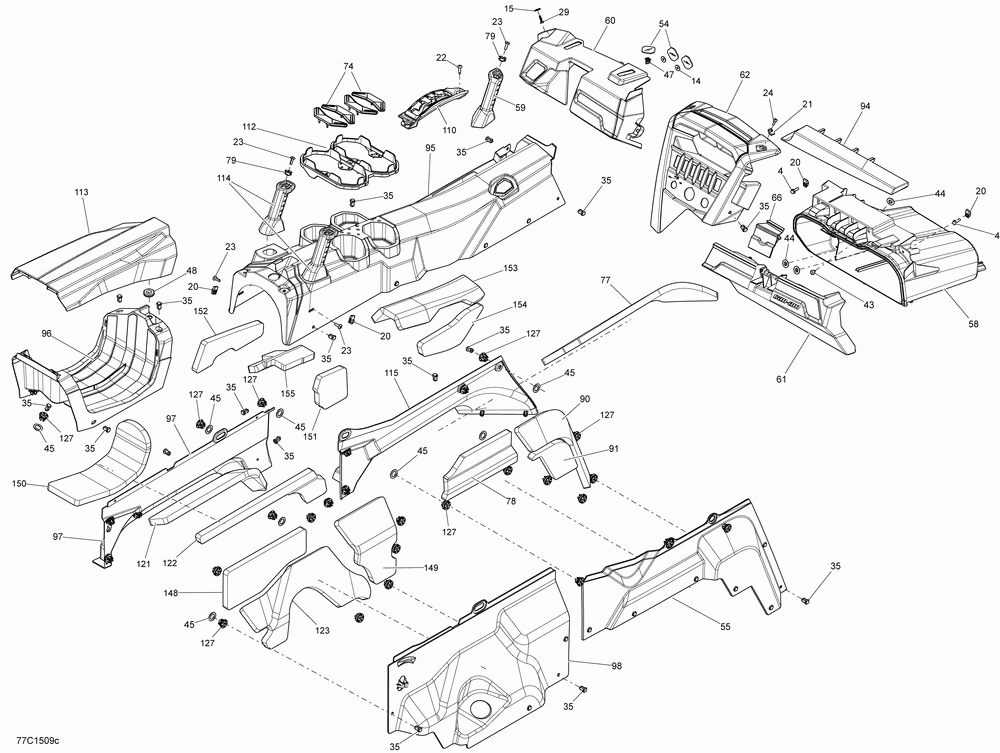

cab interior dash and console

Cam-am Maverick MAX 1000_STD_XRS-DPS
Cam-am
#oem кодцена
4
207662034
Винт М6 Х 20
14
234062410
Шайба М6
15
234062670
Flat Washer (10.000 Per Pack)
20
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
21
250000079
Гайка М5 Х 0,8
22
250000728
Torx Screw M6 X 25 (2.000 Per Pack)
23
250000722
Torx Screw M6 X 20
24
250000724
Звездообразный Винт М5 Х 20
29
250000297
Винт 50 Х 20
35
293150089
Пластиковая Заклепка
43
293830005
Rubber Bumper (5.000 Per Pack)
44
414859400
Cap (10.000 Per Pack)
45
503189273
Шайба (отпускается по 25 шт)
47
517302785
Clip (10.000 Per Pack)
48
517303756
Втулка
54
705003841
Опорная Плита
55
707900002
Rh Side Console
58
707900009
Storage Bin
59
707900011
Passenger Handle
60
715001250
Dashboard Ass Y
61
707900221
Luggage Cover Kit
62
715002178
Central Dashboard Ass Y
66
707900031
Защёлка
74
707900036
Cup Retainer
77
707900044
Lh Lower Lateral Console Foam
78
707900045
Rh Lateral Console Foam
79
707900048
Connector Tube
90
707900055
Rh Lateral Console Foam
91
707900056
Rh Lateral Console Foam
94
707900062
Trim Glove Box
95
715002193
Front Console Cover Kit
96
707900075
Rear Central Console
97
707900298
Lh Rear Console Panel
98
707900080
Rh Rear Console Panel
110
707900088
Shift Lever Indicator
112
707900100
Cup Holder
113
707900196
Rear Central Console Cover Model-red
113
707900197
Rear Central Console Cover Model-yellow
114
707900103
Ручка
115
707900001
Lh Side Console
121
707900119
Acoustic Foam
122
707900120
Acoustic Foam
123
707900121
Acoustic Foam
127
707900133
Вставка
148
707900205
Acoustic Foam
149
707900206
Acoustic Foam
150
707900307
Acoustic Foam
151
707900209
Acoustic Foam
152
707900210
Acoustic Foam
153
707900211
Acoustic Foam
154
707900212
Acoustic Foam
155
707900213
Acoustic Foam
