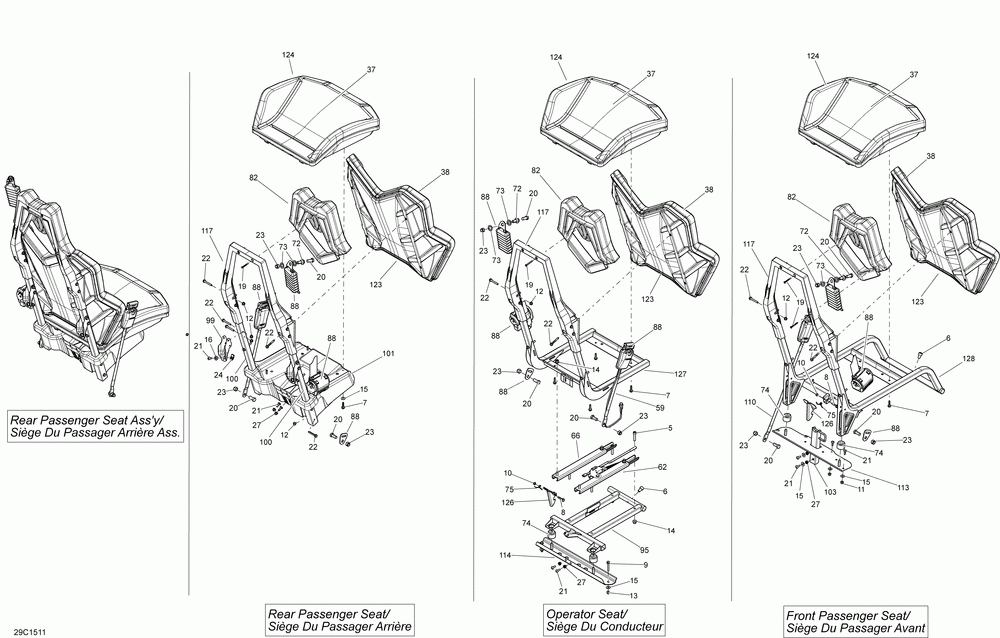

Сидение

Cam-am Maverick MAX 1000_XDS-DPS
Cam-am
#oem кодцена
5
205084044
Socket Head Screw M8 X 40 (5.000 Per Pack)
6
205501644
Socket Screw M10 X 16
7
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip (10.000 Per Pack)
8
207663034
Винт M6 X 30 (5 шт в упаковки)
9
207664544
Flanged Hex. Screw M6 X 45 (25.000 Per Pack)
10
232561600
Hex. Elastic Stop Nut M6 (5.000 Per Pack)
11
233061414
Hex. Flanged Nut M6 (10.000 Per Pack)
12
233161464
Hex. Elastic Flange Nut M6
13
233261414
Резиновая гайка фиксатор М6
14
233281414
Гайка М8
15
234062670
Flat Washer (10.000 Per Pack)
16
234281474
Conical Spring Washer M8 (10.000 Per Pack)
19
250000490
Hex. Washer Head Screw Pt K50 X 40 (2.000 Per Pack)
20
250000521
Hex. Cap Screw 7/16 X 1 (2.000 Per Pack)
21
250000536
Tork Screw M6 X 18
22
250000672
Screw-hex.flange Din.6921s.grip
23
250100135
Nylon Insert Hex. Lock Nut 7/16-20 (2.000 Per Pack)
24
250100160
Panel Nut M6
27
293450274
Вставка
37
708001554
Housse *cover
38
708001574
Backrest Cover
59
708000987
Driver Buckle Side
62
708001739
Rh Rail
66
708000848
Lh Rail
72
708000890
Safety Belt Screw
73
708000891
Position Washer
74
708001671
Резиновый Бампер
75
708000921
Пружина
82
708001074
Head Rest
88
708001302
Safety Belt
95
708001174
Seat Member
99
708001195
Фиксатор
100
708001196
Tube Lateral *lateral Tube
101
708001198
Seat Support
103
708001213
Фиксатор
110
708001206
Passenger Buckle Side
113
708001804
Суппорт
114
708001214
Seat Support
117
708001245
Seat Support
123
708001573
Спинка
124
708001552
Cushion Ass Y
126
708001355
Seat Latch
127
708001356
Operator Seat Frame
128
708001357
Passenger Seat Frame
