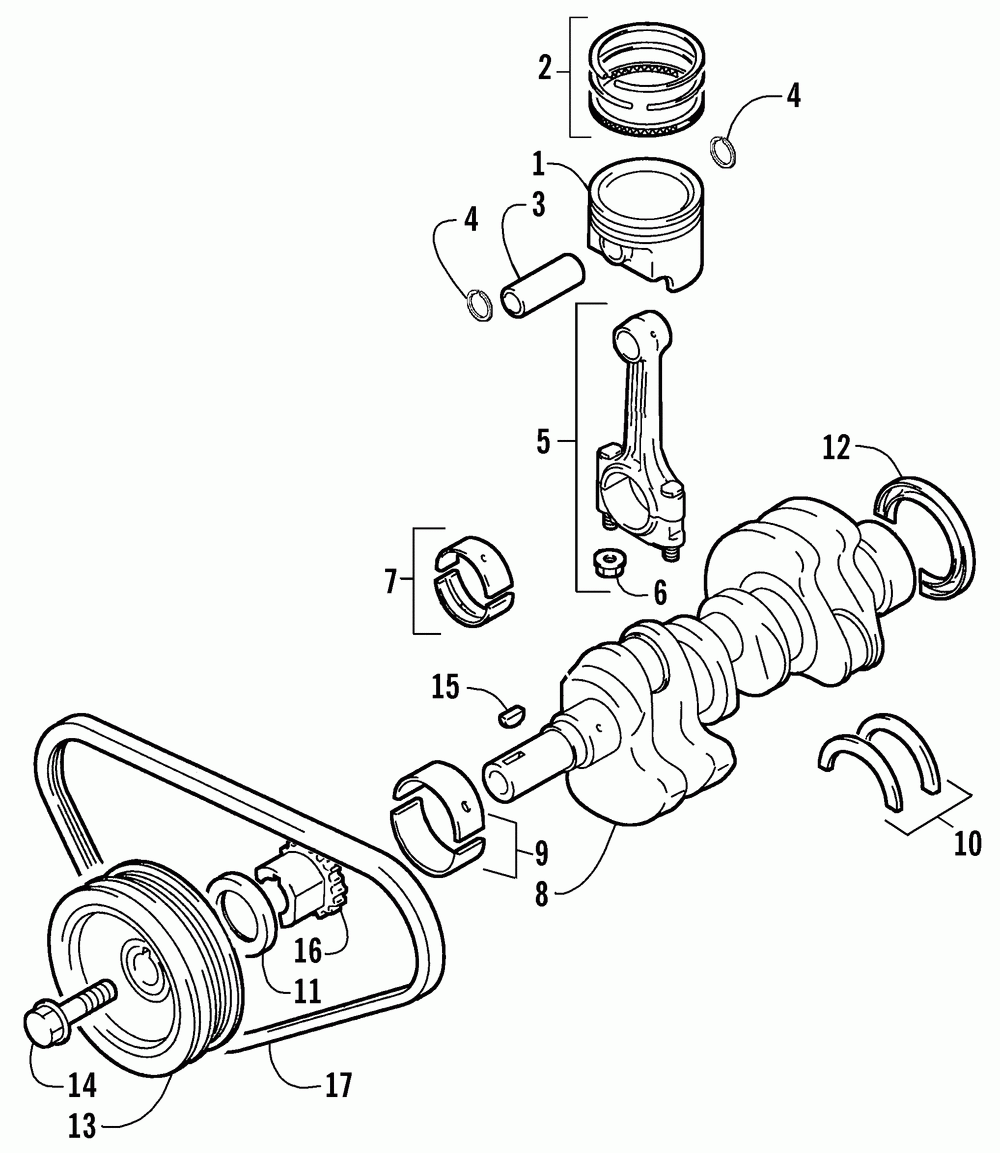

Коленчатый вал

Arctic Cat 4-STROKE TOURING
Arctic Cat
#oem кодцена
1
3006-145
Piston, Std:mark 1 '02 660 L/c (mark 1)
1
3006-146
Piston, Std:mark 2 '02 660 L/c (mark 2)
1
3006-297
Piston, (os:0.50)) '02 660 L/c (oversized 0.5 Mm) Optional
2
3006-147
Ring Set, Piston-std '02 660 L/c
2
3006-298
Ring Set, Piston, Os: 0.50 '02 660 L/c (oversized 0.5 Mm) Optional
3
3006-148
Pin, Piston '02 660 L/c
4
3006-127
Circlip, Piston Pin '02 660 L/c
5
3006-149
Connrod Assy, '02 660 L/c (inc. 6)
6
3006-110
Nut, M8x0.75x7.5 '02 660 L/c
7
3006-150
Bearing, Connrod-std '02 660 L/c (2 Per Pack)
8
3006-151
Crankshaft, '02 660 L/c
9
3006-153
Bearing Set, Crankshaft-green '02 660 L/c (green)
9
3006-154
Bearing Set, Crankshaft-black '02 660 L/c (black)
9
3006-155
Bearing Set, Crankshaft-non '02 660 L/c (no Color)
9
3006-156
Bearing Set, Crankshaft-yellow '02 660 L/ (yellow)
9
3006-152
Bearing Set, Crankshaft-brown '02 660 L/c (brown)
10
3006-157
Metal Set, Crank Thrust '02 660 L/c
10
3006-299
Bearing Set, Crank Thrust '02 660 L/c (undersized)
11
0693-562
Oil Seal, M35x47x6
12
3006-124
Seal, Oil-78x99x8 '02 660 L/c
13
3006-158
Pulley, Crankshaft '02 660 L/c
14
3006-159
Bolt, Crank Pulley '02 660 L/c
15
3004-540
Шпонка (цена за шт.(Отпускается по 5шт)
16
3006-160
Sprocket, Crankshaft Timing '02 660 L/c
17
3006-295
Ремень Вентилятора /генератора
