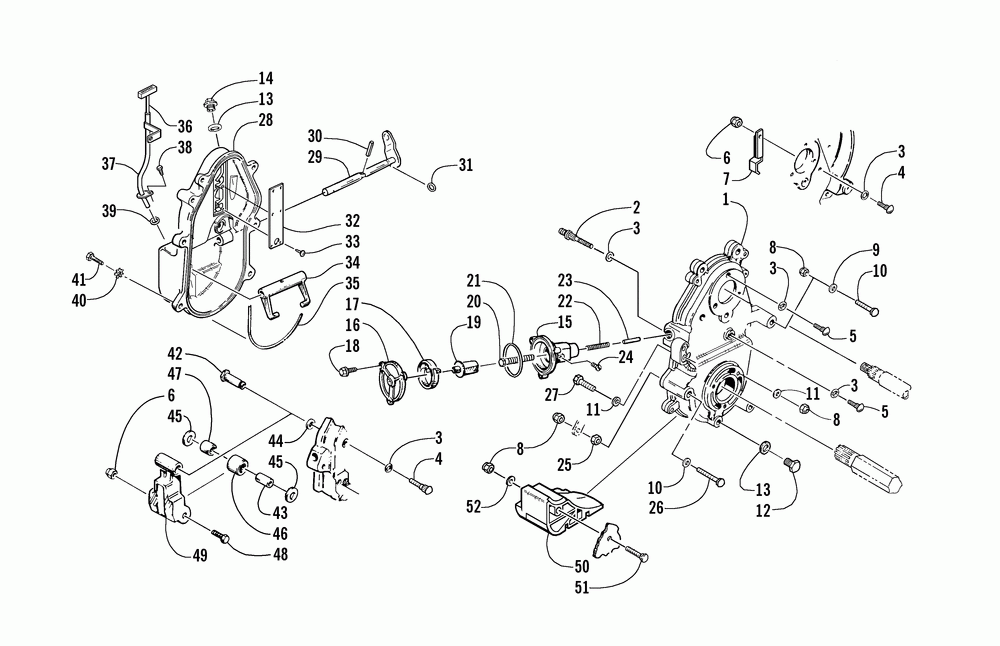

Dropcase and chain tension assembly (esr)

Arctic Cat ZL 600 EFI SS (BLACK)
Arctic Cat
#oem кодцена
1
0702-421
Dropcase, W/ Studs-unpainted (inc. 2-5) (unpainted)
2
0623-317
Stud, 5/16-18 Ribbed-dropcase (5 Per Pack)
3
0607-025
O-ring, Stud (5 Per Pack)
4
0623-117
Bolt, Rib Neck-rdh 1/4-20x1.00 Z&y (5 Per Pack)
5
0123-523
Bolt, Rib Neck-rdh 5/16-18x.625 Z&y (5 Per Pack)
6
0623-122
Nut , Flex Lock-thin 1/4-20 (5 Per Pack)
7
0702-553
Bracket, Chain Backing-weldt(0602-466)
8
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
9
8050-252
Washer, Flat- 5/16 X .875 X .063 Z&y (10 Per Pack)
10
8011-139
Bolt, Crg 5/16-18x2.50 Gr1 Z&y (5 Per Pack)
11
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
12
0602-479
Пробка с магнитом
13
1602-213
Кольцо (2 шт в упаковке)
14
0623-293
Штепсель, Дренажный
15
0602-746
Housing, Screw-chain Adjuster
16
0602-645
Cover, Adjustor Hsg
17
0602-803
Пружина натяжителя
18
0623-526
Screw, Self Tap-tspnh 10-32x.375 Tr Z&y (6 Per Pack)
19
1602-536
Shaft, Chain Adjustor
20
0602-748
Screw, Chain Adjuster
21
0602-801
O-ring-cover-chain Adjuster (2-031)
22
0602-901
Spring, Compression-adj Screw
23
0602-804
Rivet, Btnhd 3/16 X 3/4 (10 Per Pack)
24
0623-541
Screw, Mach-hh 10-32 X .25 (5 Per Pack)
25
8042-426
Nut, 5/16-18 Hex-reg-gr5 Z&y (20 Per Pack)
26
8011-143
Bolt, Crg 5/16-18x3.50 Gr1 Z&y (5 Per Pack)
27
8002-135
Screw, Cap-hh 5/16-18 X1.50 G5 Z&y (5 Per Pack)
28
1602-222
Cover, Dropcase-ptd Blk-rev (dipstick) (black) Included In Kit
29
0702-350
Вал переключения
30
0623-542
Pin, Spring-3/16 X 7/8 Coiled Blk (5 Per Pack)
31
0602-021
Уплотнительное кольцо
32
1602-151
Кожух
33
0623-081
Screw, Self Tap-phpnh 8-32x.31 F Z&y (6 Per Pack)
34
0602-085
Вилка
35
0602-437
O-ring, Dropcase Cover (2 Per Pack)
36
1602-107
Dipstick, Dropcase
37
1602-106
Tube, Dipstick - Weldment
38
0623-914
Screw, Self Tap Thd Lk-tspnh 10-24x.375 (6 Per Pack)
39
0605-014
O-ring, Rubber (5 Per Pack)
40
8053-242
Шайба (10 шт в упаковке)
41
8002-134
Screw, Cap-hh 5/16-18 X1.25 G5 Z&y (5 Per Pack)
42
0602-681
Гайка
43
0602-676
Ось
44
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
45
0623-525
Washer, Flat-.5 X 1.01 Od Hardened (2 Per Pack)
46
0702-129
Roller Assy-chain Tightener (inc. 47)
47
0602-383
Подшипник
48
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
49
0602-675
Рычаг ролика цепи
50
0616-964
Защита
51
8011-137
Bolt, Crg 5/16-18x2.0 Gr1 Z&y (5 Per Pack)
52
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
