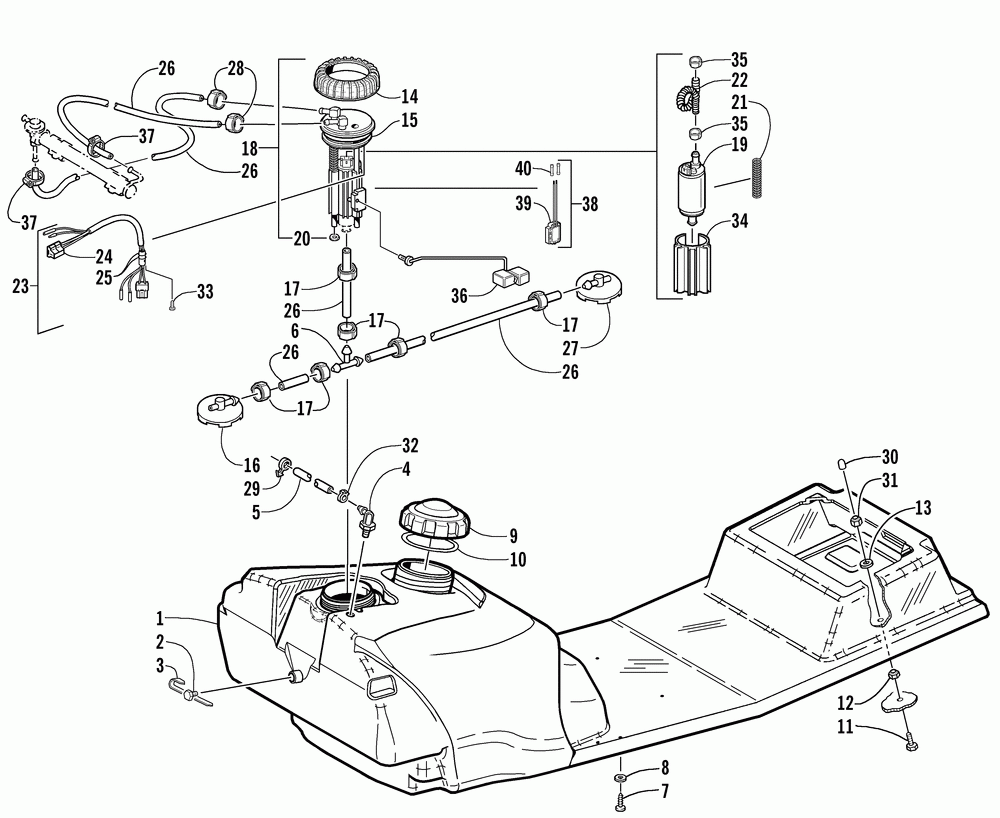

Gas tank and fuel pump assemblies

Arctic Cat ZL 500 EFI ESR
Arctic Cat
#oem кодцена
1
0770-518
Tank, Gas-assy Zl Efi/esr (inc. 2-5)
2
0670-243
Plug, Gas Tank-1/4 Npt
3
0670-289
Лента
4
0670-572
Vent, Gas Tank
5
0610-015
Hose, Gas 1/4 X100'
5
0610-016
Hose, Gas 1/4 X25'
6
0670-235
Fitting, Tee-5/16
7
0623-309
Screw, Self Tap-phpnh 12-24x3/4 A Z&y (4 Per Pack)
8
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
9
0470-541
Cap, Fuel - 3.5" (inc. 10)
10
1670-228
Прокладка крышки бака
11
8002-042
Screw, Cap-hh 1/4-20 X1.00 G5 Z&y (10 Per Pack)
12
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
13
0623-184
Washer, Flat 1/4 X 1.0 Z&y (5 Per Pack)
14
1670-119
Гайка
15
1670-118
Уплотнитель
16
1670-619
Pickup, Fuel-(mp12)small Nonvented
17
0610-415
Хоиут -10.8-13.3 Mm (5 шт в упак.)
18
1670-150
Pump,fuel-efi W/efs-assy (pfa-19) (inc. 14-15, 19-25, And 33-36)
19
1670-153
Топливный насос
20
1670-244
Стопорное кольцо
21
1670-156
Пружина компрессионая
22
2670-521
Hose, Convoluted-fuel Pump
23
1670-189
Harness, Assy,elec Fuel Pump '00 600 E (inc. 24-25)
24
0670-380
Housing, Connector
25
0670-381
Уплотнительное кольцо
26
0610-011
Hose, Oilline 5/16x25'
27
1670-618
Pickup, Fuel-small/mp-13 Vent
28
0610-419
Зажим шланга (отпускается по 4 шт)
29
0623-101
Routing Clip, Snap-in Optional (5 Per Pack)
30
0623-404
Cap, Protector-1/4 Thread (5 Per Pack)
31
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
32
0623-063
Clamp, Hose (snp02) (5 Per Pack)
33
1670-155
Screw, Assy - #10-32 X .31
34
1670-158
Housing, Fuel Pump - Extrusion
35
1670-159
Clamp, Hose - Fuel Pump
36
0670-460
Arm, Float-fuel Pump (v/n 75-584)
37
0623-373
Зажим №4 (6202) (отпускается по 2 шт)
38
2639-571
Kit, Efi Fuel Level Sensor W/conn'r
39
2639-571
Kit, Efi Fuel Level Sensor W/conn'r
40
0631-017
Connector, Splice-18 To 20 Ga (red)
