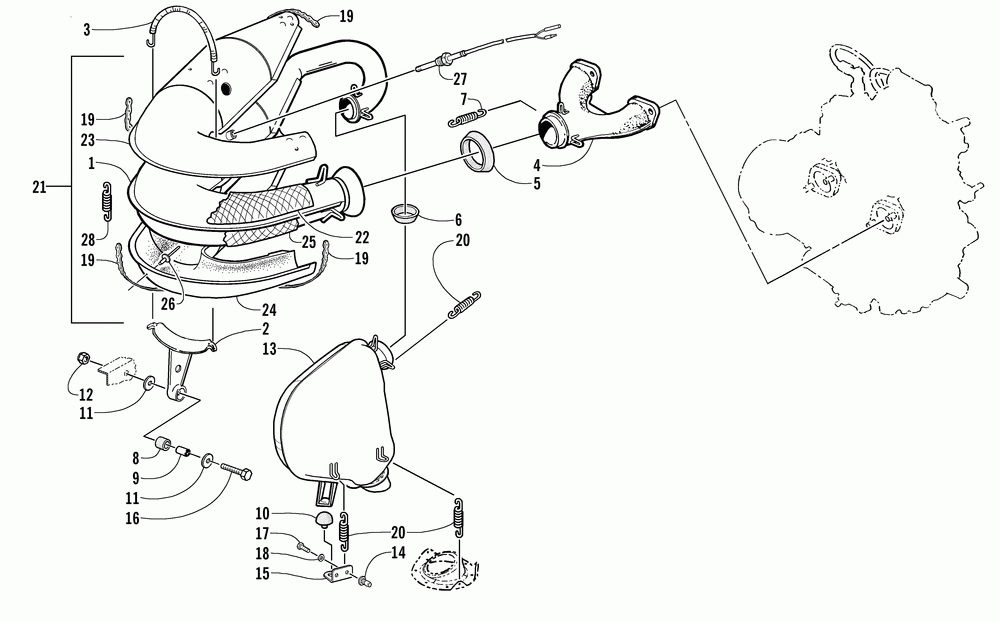

Глушитель

Arctic Cat ZR 440 SNO PRO (SNO-CROSS)
Arctic Cat
#oem кодцена
1
0712-736
Chamber, Exp-weldt
2
0712-437
Brkt, Mtg-exp Chamber-weldt (20 Sno Pro)
3
0612-027
Spring Extension
4
0712-364
Manifold, Exhaust-weldt (99 Pro)
5
0612-748
Gasket, Exhaust-headpipe
6
0612-693
Gasket, Exhaust Joint-resonator
7
2612-399
Пружина
8
0612-107
Bushing, Resonator Mtg (3 Per Pack)
9
0612-108
Spacer, Resonator Mtg (3 Per Pack)
10
0612-111
Бампер
11
0623-184
Washer, Flat 1/4 X 1.0 Z&y (5 Per Pack)
12
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
13
0712-414
Resonator, Exhaust-weld't
14
0623-582
Вставка
15
1612-308
Brkt, Resonator Mtg -chassis
16
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
17
8002-040
Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)
18
8051-217
Washer, Spr Lock-1/4 .252x.489x.077 Z&y (10 Per Pack)
19
0624-552
Ремень 5"
19
0624-541
Tie, Perforated Band-it( 25' )
20
0612-471
Spring, Exhaust (3 Per Pack)
21
0712-737
Chamber,exp-fabr (inc. 1, 19, 22-26, And 28)
22
1612-263
Packing, Exp Chamber-(20 Sno Pro)
23
0712-422
Cover, Exp Chamber-fabr-upper
24
0712-423
Cover, Exp Chamber-lower-fab
25
1612-490
Packing, Exp,chamber-lower
26
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
27
0630-145
Sensor, Exhaust Temp-1/4" Dia
28
1612-178
Пружина
