Передний амортизатор Запчасти для снегоходов Arctic Cat POWDER SPECIAL 700 (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

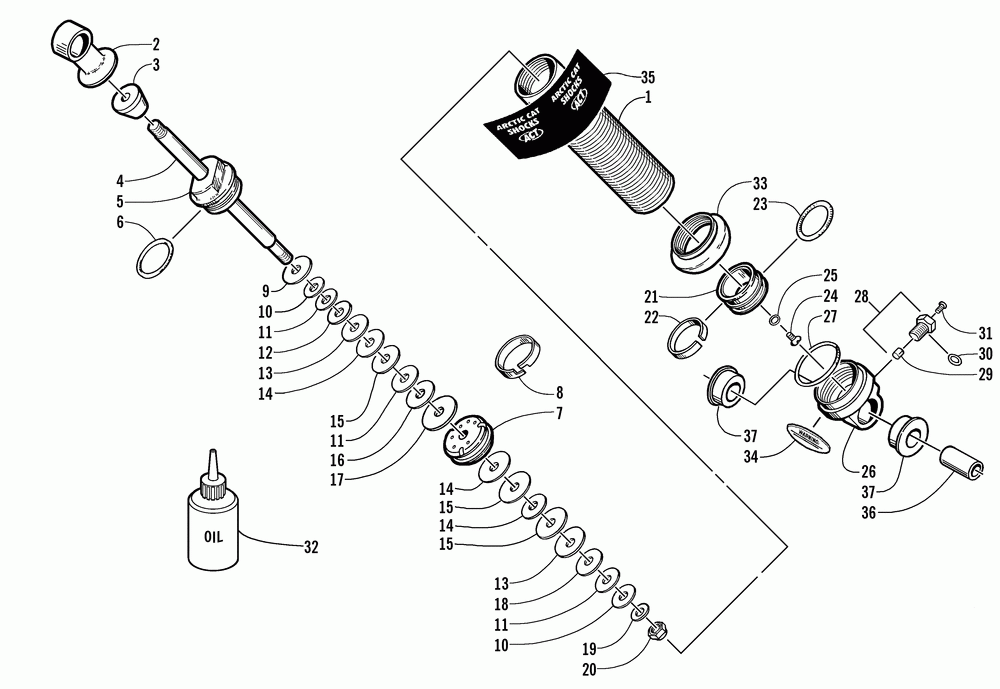

Передний амортизатор

Arctic Cat POWDER SPECIAL 700

Передний амортизатор

#

oem код

название

цена

Shock, Ski-37" (melonite)

Shock, Ski-37" (melonite)

1

Body, Shock-6.720"(melonite)

Body, Shock-6.720"(melonite)

2

Eyelet, 1.012 X 1.637 X 2.26

Eyelet, 1.012 X 1.637 X 2.26

3

Bumper, Stop

Bumper, Stop

4

Rod, Shock-7.00"(melonite)

Rod, Shock-7.00"(melonite)

5

Endcap - Assy (inc. 6)

Endcap - Assy (inc. 6)

6

O-ring, Outer

O-ring, Outer

7

Piston, .093 Orifice

Piston, .093 Orifice

8

Strap, Piston - Teflon

Strap, Piston - Teflon

9

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

10

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

11

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

12

Valve, Shock-1.000 Dia X .008

Valve, Shock-1.000 Dia X .008

13

Valve, Shock-1.100 Dia X .008

Valve, Shock-1.100 Dia X .008

14

Valve, Shock-1.250 Dia X .006

Valve, Shock-1.250 Dia X .006

15

Valve, Shock-1.300 Dia X .006

Valve, Shock-1.300 Dia X .006

16

Valve, Shock- .700 Dia X .004

Valve, Shock- .700 Dia X .004

17

Valve, Shock-.900 Dia X .006

Valve, Shock-.900 Dia X .006

18

Valve, Shock- .900 Dia X .008

Valve, Shock- .900 Dia X .008

19

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

20

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

21

Piston, Floating-assy (inc. 22)

Piston, Floating-assy (inc. 22)

22

Strap, Floating Piston - Teflon

Strap, Floating Piston - Teflon

23

O-ring, Floating Piston

O-ring, Floating Piston

24

Screw, Mach - Hsfh 10-24x3/8 Blk (inc. 25)

Screw, Mach - Hsfh 10-24x3/8 Blk (inc. 25)

25

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

26

End Cap, Shock - W/lugs

End Cap, Shock - W/lugs

27

O-ring, End Cap

O-ring, End Cap

28

Valve, Pressure - Assy (inc. 29-30)

Valve, Pressure - Assy (inc. 29-30)

30

O-ring, Pressure Valve

O-ring, Pressure Valve

31

Screw, Mach - Hsbh 8-32x1/4 Ss

Screw, Mach - Hsbh 8-32x1/4 Ss

32

S/m Shock Oil-1 Quart (6 Per Pack)

S/m Shock Oil-1 Quart (6 Per Pack)

33

Nut, Spring Adjuster

Nut, Spring Adjuster

34

Decal, Shock-warning

Decal, Shock-warning

35

Decal, Shock-"act"

Decal, Shock-"act"

36

Sleeve, Eyelet - Inner - .790 Tlg

Sleeve, Eyelet - Inner - .790 Tlg

37

Втулка изолирующая

Втулка изолирующая
