Gas tank and fuel pump assembly Запчасти для снегоходов Arctic Cat PANTERA 580 (1998)

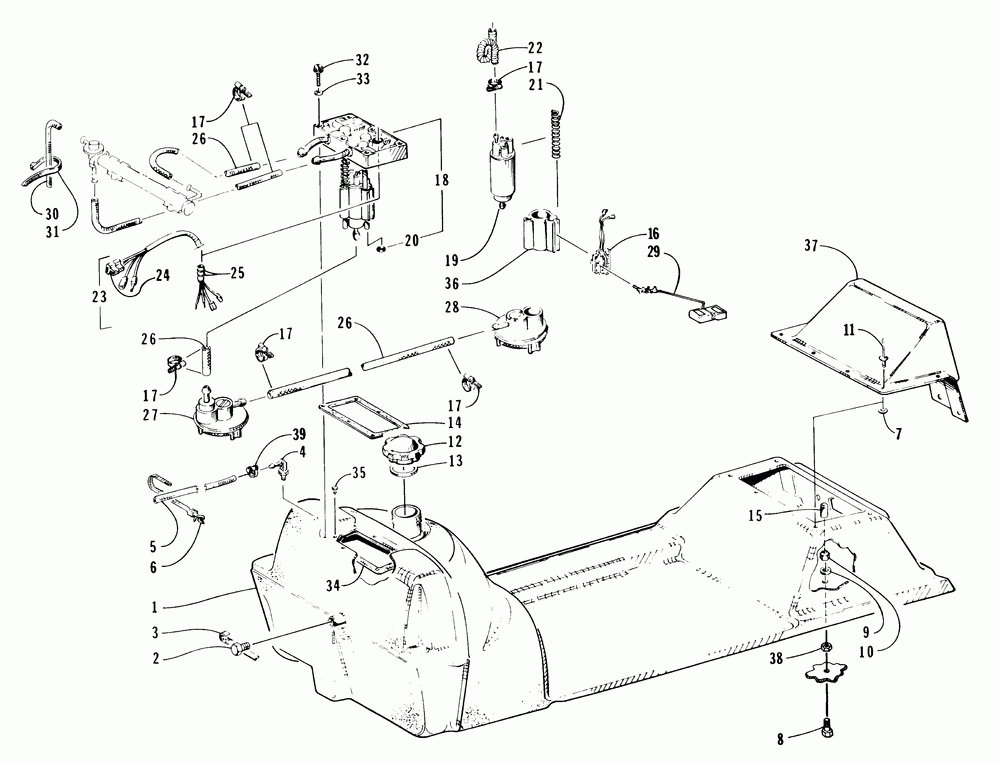

Gas tank and fuel pump assembly

Arctic Cat PANTERA 580

oem код

название

цена

0770-206

Tank, Gas- Assy 97 Pta (inc. 2-4)

0670-243

Plug, Gas Tank-1/4 Npt

0670-289

Лента

0670-572

Vent, Gas Tank

0623-164

Tie, Cable-push Mount (5 Per Pack)

0123-149

Шайба 11/64x3/8x.030 (4 шт в упаковке)

8002-042

Screw, Cap-hh 1/4-20 X1.00 G5 Z&y (10 Per Pack)

0623-184

Washer, Flat 1/4 X 1.0 Z&y (5 Per Pack)

8040-366

Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)

8061-428

Rivet, Blind-lf Aa56 Black (10 Per Pack)

0670-341

Cap, Oil Tank-w/seal

0109-733

Прокладка крышки бака

0670-410

Seal, Mounting-fuel Pump Efi

0623-404

Cap, Protector-1/4 Thread (5 Per Pack)

2639-571

Kit, Efi Fuel Level Sensor W/conn'r

0623-373

Зажим №4 (6202) (отпускается по 2 шт)

1670-635

Kit, Rebuild-fuel Pump-pfa7 & Pfa8 (inc. 16, 19-25, 29, And 36)

1670-635

Kit, Rebuild-fuel Pump-pfa7 & Pfa8

0670-316

Spring, Compression - Elec Fuel Pump

0670-315

Hose, Looped Fuel Pump

0670-378

Harness Ass'y-elect Fuel Pump W/ga (inc. 24-25)

0670-380

Housing, Connector

0670-381

Уплотнительное кольцо

0610-075

Шланг

0770-731

Kit, Fuel Pickup

1670-619

Pickup, Fuel-(mp12)small Nonvented

0670-460

Arm, Float-fuel Pump (v/n 75-584)

3003-899

Hose, Air Vent

0623-285

Cable Tie, Double Loop (5 Per Pack)

0623-521

Screw, Mach-hwh-10-24x1.25-z&y (6 Per Pack)

0623-371

Washer, Nylon(arden Lwny-016-9) (6 Per Pack)

0670-409

Ring, Retaining-efi Fuel Pump

0623-269

Клипса - елочка (отпускается по 5 шт)

0670-314

Housing/iso-pod

0616-060

Extension, Tool Box 121

8041-366

Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)

0623-063

Clamp, Hose (snp02) (5 Per Pack)
