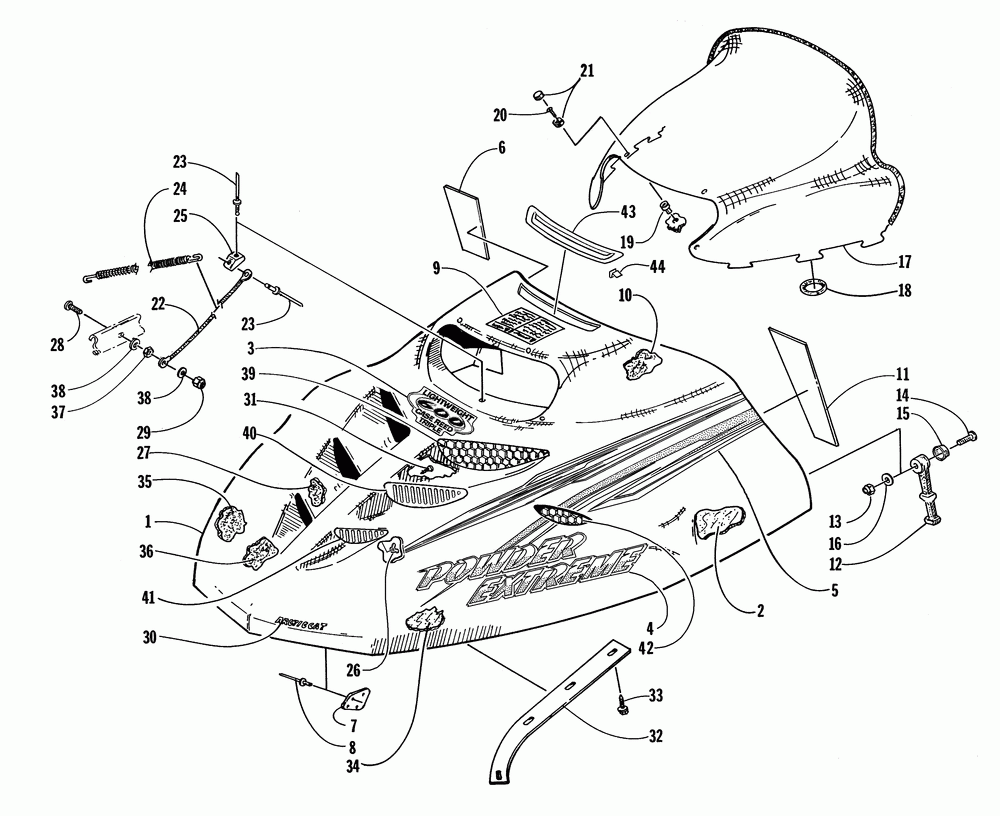

Капот и ветровое стекло

Arctic Cat POWDER EXTREME
Arctic Cat
#oem кодцена
1
0718-635
Hood, W/o Decals '98 Pwd Extreme
1
0718-613
Hood W/decals-98 Pwd Extr
2
0717-098
Foam, Hood-rh
2
0717-099
Foam, Hood-lh
3
2611-930
Decal, Hood-center
4
2611-932
Decal, Hood-upper-rh
4
2611-933
Decal, Hood-upper-lh
5
2611-934
Decal, Hood-lower-rh
5
2611-935
Decal, Hood-lower-lh
6
2611-399
Decal, Caution-eng/batt
7
0616-567
Brkt, Hinge-hood
8
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
9
1611-575
Decal, Warning-hood
10
0717-062
Foam, Hood-upper-rh
10
0717-063
Пенная шумоизоляция капота верх. левая
11
2611-400
Decal, Warning-brake
12
0115-306
Cord, Latch (2 Per Pack)
13
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
14
8009-614
Screw, Mach-crph 1/4-20x1.25 G2 Z&blk (15 Per Pack)
15
0623-261
Washer, Cup-1/4 X 1-blk (2 Per Pack)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
17
0616-771
Windshield, Formed
18
0616-032
O-ring-windshield (1 I.d.) (6 Per Pack)
19
0123-010
Nut, Expansion 10-32 (20 Per Pack)
20
0623-121
Винт (отпускается по 10шт)
21
0124-054
Крышка с шайбой (10 шт в упаковке)
22
0616-326
Cable, Hood - 43"
23
8061-686
Rivet, Blind-lf Ss64 Zinc (10 Per Pack)
24
0123-510
Spring, Extn-harness 4.50
25
1606-088
Brkt, Hood Cable
26
0623-730
Wingnut, Ny-loc-#10-24 (4 Per Pack)
27
0717-060
Foam, Hood-center-rh
27
0717-061
Foam, Hood-center-lh
28
8005-404
Screw, Cap-hsh 10-24x1.25 Z&y (5 Per Pack)
29
8040-246
Nut, Hex Lock-nyl 10-24 Z&y (10 Per Pack)
30
2611-896
Наклейка, капот
31
0623-378
Screw, Self Tap-phtrh #8-32 X .50 Ab Z&y (5 Per Pack)
32
0616-915
Guard, Heat Elec Harness
33
0623-505
Screw, Self Tap-hwh #6x5/8 Typ A Z&y (5 Per Pack)
34
0706-548
Foil, 3 X 12(0619-728)
35
0619-206
Теплозащитная фольга
36
0616-753
Foil, Hood-lower
37
8041-246
Nut, Hex Thin Lock-nyl 10-24 Z&y (5 Per Pack)
38
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
39
0716-180
Screen, Vent-hood-wld't-top Rh-blk
39
0716-181
Screen, Vent-hood-wld't-top Lh-blk
40
0716-802
Vent, Assembly-upper Rh
40
0716-803
Vent, Assembly-upper Lh
41
0716-800
Vent, Assembly-lower Rh
41
0716-801
Vent, Assembly-lower Lh
42
0716-184
Screen, Vent-hood-wld't-btm Rh-blk
42
0716-185
Screen, Vent-hood-wld't-btm Lh-blk
43
1606-399
Vent, Hood-98 Powder Extreme
44
0123-596
Clip, Push (10 Per Pack)
