Oil tank and fuel pump Запчасти для снегоходов Arctic Cat POWDER EXTREME (1998)

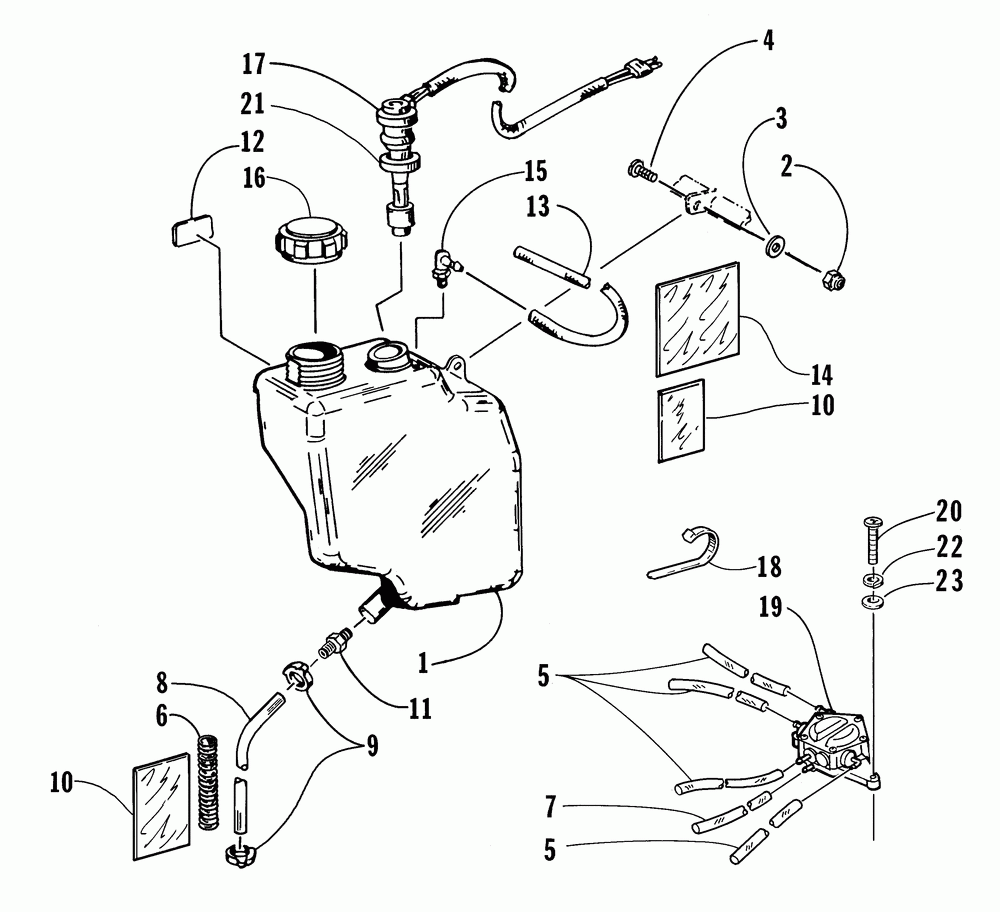

Oil tank and fuel pump

Arctic Cat POWDER EXTREME

oem код

название

цена

0670-802

Tank, Oil-w/one #10-24 Insert

8040-366

Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)

8050-217

Шайба 1/4 X .625 X .065 (отпускается по 10 шт)

8017-580

Screw, Mach-tstrh 1/4-20 X 3/4 Gr2 Z&y (10 Per Pack)

0610-017

Hose, Gas 3/16 X100'

0610-008

Hose, Gas Line-3/16x25'

0670-333

Cover, Oil Line-loom Ctl

Шланг

Hose, Gas 1/4 X100'

Hose, Gas 1/4 X25'

Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)

0706-548

Foil, 3 X 12(0619-728)

0670-117

Outlet, Oiltank-5/16 Tube

1611-564

Decal, Oil Tank

0610-010

Hose, Vent-25 Ft

0706-990

Foil 6 X12 (0619-727)

0670-242

Fitting, Vent-90 Degree (5 Per Pack)

0670-341

Cap, Oil Tank-w/seal

0609-503

Sensor, Oil Level-rotary W/seal

0123-788

Стяжка кабеля (отпуск.по 10 шт)

0670-783

Pump, Fuel

0123-549

Screw, Mach-phtrh 10-32 X 1.00 Z&y (20 Per Pack)

0609-237

Seal, Grommet-oil Sensor (ref 0609-224)

8051-152

Washer, Spr Lock-#10 .193x.334x.047 Z&y (20 Per Pack)

8050-157

Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
