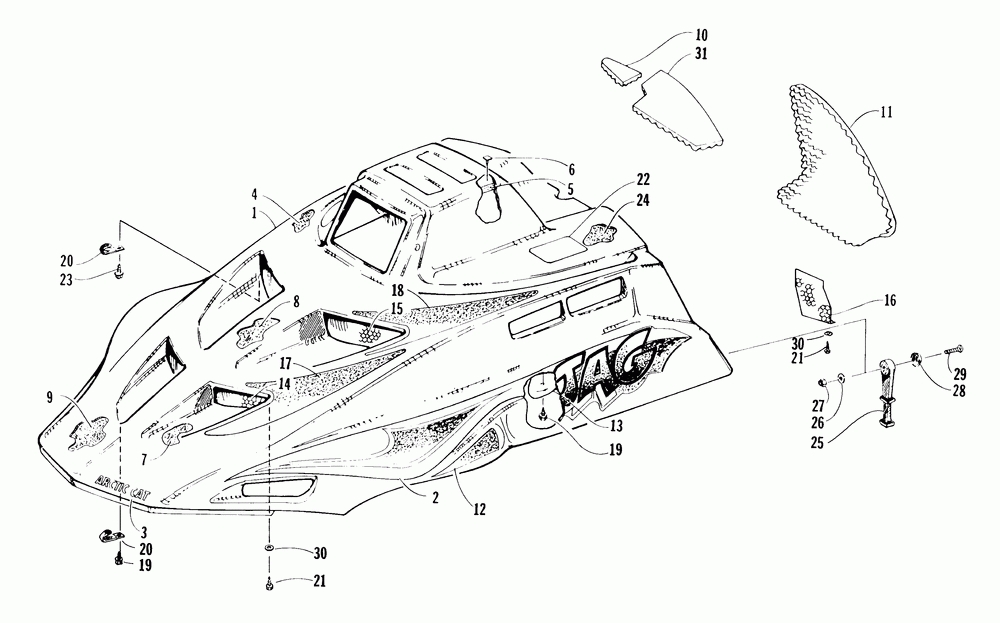

Капот

Arctic Cat JAG DELUXE
Arctic Cat
#oem кодцена
1
0718-284
Hood W/o Decals
1
0718-389
Hood W/ Decals
2
2611-242
Наклейка капота правая
2
2611-243
Наклейка капота левая
3
1611-755
Decal, Arctic Cat-silver Metallic
4
0617-122
Foam, Hood-rh Side
5
0717-012
Foam, Hood-headlight Pod
6
0623-143
Clip, Christmas Tree (2 Per Pack)
7
0117-835
Tape Alum Reflectorized 6x6 Sq(0619-727)
8
0717-030
Foam, Hood-center (vents)
10
0617-134
Foam, Duct-air Out (side)
11
0717-031
Foam, Duct-air Out (bottom)
12
2611-332
Decal, Hood-lower-rh
12
2611-333
Decal, Hood-lower-lh
14
0616-068
Screen, Vent-hood-lower Rh
14
0616-069
Screen, Vent-hood-lower Lh
15
0616-070
Screen, Vent-hood-upper Rh
15
0616-071
Screen, Vent-hood-upper Lh
16
0706-958
Screen, Ass'y-vent Hood-rear Rh
17
2611-330
Decal, Hood-center-rh
17
2611-331
Decal, Hood-center-lh
18
2611-244
Decal, Hood-upper-rh
18
2611-245
Decal, Hood-upper-lh
19
0623-257
Screw, Self Tap-hwh #8x1/2 Type A (10 Per Pack)
20
1623-984
Зажим (2 шт в упаковке)
21
0623-311
Screw, Self Tap-hwh #8x3/8 Type A (5 Per Pack)
22
1611-407
Decal, Warning-hood
23
0623-297
Screw, Self Tap-hwh #8x3/4 Type A (2 Per Pack)
24
0617-111
Foam, Hood Center-upper
25
0115-306
Cord, Latch (2 Per Pack)
26
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
27
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
28
0623-261
Washer, Cup-1/4 X 1-blk (2 Per Pack)
29
8009-614
Screw, Mach-crph 1/4-20x1.25 G2 Z&blk (15 Per Pack)
30
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
31
0617-135
Foam, Hood-air Out
