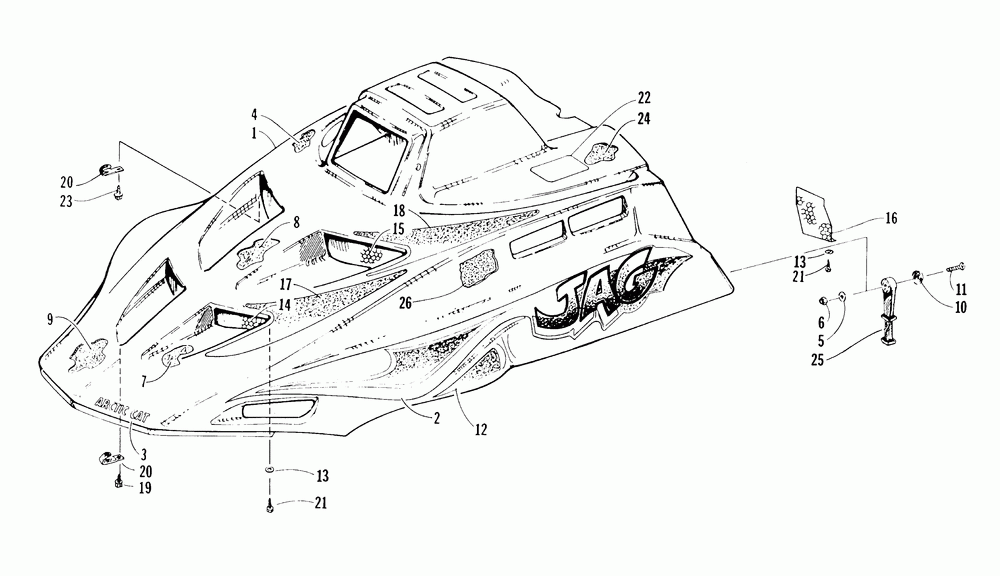

Капот

Arctic Cat JAG LIQUID
Arctic Cat
#oem кодцена
1
0718-387
Hood W/o Decals
1
0718-388
Hood W/ Decals
2
2611-190
Наклейка капота правая
2
2611-191
Наклейка капота левая
3
1611-756
Decal, Arctic Cat-hot Green
4
0617-122
Foam, Hood-rh Side
5
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
6
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
7
0117-835
Tape Alum Reflectorized 6x6 Sq(0619-727)
8
0717-030
Foam, Hood-center (vents)
10
0623-261
Washer, Cup-1/4 X 1-blk (2 Per Pack)
11
8009-614
Screw, Mach-crph 1/4-20x1.25 G2 Z&blk (15 Per Pack)
12
2611-337
Decal, Hood-lower-lh
13
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
14
0616-068
Screen, Vent-hood-lower Rh
14
0616-069
Screen, Vent-hood-lower Lh
15
0616-070
Screen, Vent-hood-upper Rh
15
0616-071
Screen, Vent-hood-upper Lh
16
0706-848
Screen, Vent-hood-rear Rh
17
2611-334
Decal, Hood-center-rh
17
2611-335
Decal, Hood-center-lh
18
2611-232
Decal, Hood-upper-rh
18
2611-233
Decal, Hood-upper-lh
19
0623-257
Screw, Self Tap-hwh #8x1/2 Type A (10 Per Pack)
20
1623-984
Зажим (2 шт в упаковке)
21
0623-311
Screw, Self Tap-hwh #8x3/8 Type A (5 Per Pack)
22
1611-407
Decal, Warning-hood
23
0623-297
Screw, Self Tap-hwh #8x3/4 Type A (2 Per Pack)
24
0717-029
Foam, Hood, Rear Lh
24
0717-028
Шумоизоляция задняя правая
25
0115-306
Cord, Latch (2 Per Pack)
26
0717-027
Foam, Hood-lh
26
0617-122
Foam, Hood-rh Side
