Фара и приборная панель Запчасти для снегоходов Arctic Cat PANTERA (1996)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

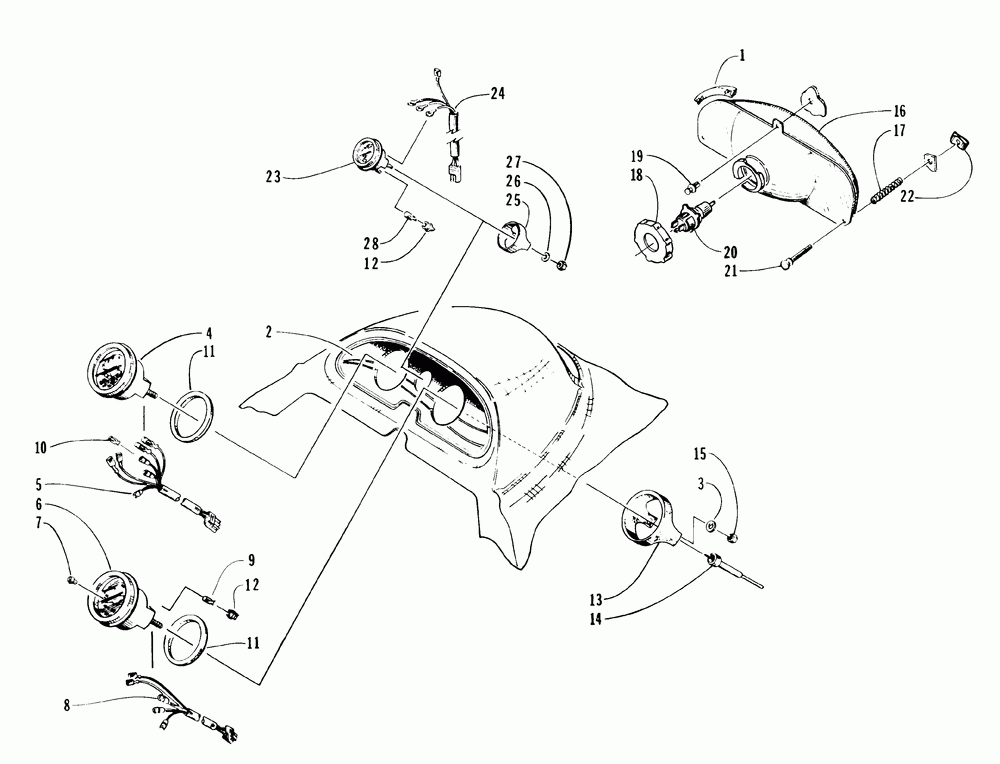

Фара и приборная панель

Arctic Cat PANTERA

Фара и приборная панель

#

oem код

название

цена

1

Seal, Headlight .50 X .75 X 30

Seal, Headlight .50 X .75 X 30

1

Seal, Headlight .50 X .75 X 30

Seal, Headlight .50 X .75 X 30

2

Decal, Instrument

Decal, Instrument

2

Decal, Instrument

Decal, Instrument

3

Washer, Flat- #10 X .469 X .049 Z&y (20 Per Pack)

Washer, Flat- #10 X .469 X .049 Z&y (20 Per Pack)

3

Washer, Flat- #10 X .469 X .049 Z&y (20 Per Pack)

Washer, Flat- #10 X .469 X .049 Z&y (20 Per Pack)

4

Tachometer, Electric-12 Pole Faria 5

Tachometer, Electric-12 Pole Faria 5

4

Tachometer, Electric-12 Pole Faria 5

Tachometer, Electric-12 Pole Faria 5

5

Harness, Tach-batt, Warmer & Reverse

Harness, Tach-batt, Warmer & Reverse

5

Harness, Tach-batt, Warmer & Reverse

Harness, Tach-batt, Warmer & Reverse

6

Speedometer, Gauge-100mph-faria 5

Speedometer, Gauge-100mph-faria 5

6

Speedometer, Gauge-100mph-faria 5

Speedometer, Gauge-100mph-faria 5

7

Ручка

Ручка

7

Ручка

Ручка

8

Harness, Speedo-beam, Temp & Oil

Harness, Speedo-beam, Temp & Oil

8

Harness, Speedo-beam, Temp & Oil

Harness, Speedo-beam, Temp & Oil

9

Bulb, Tach Speedo Assy

Bulb, Tach Speedo Assy

10

Bulb, Tach/speedo-1.5wt-1 1/4

Bulb, Tach/speedo-1.5wt-1 1/4

10

Bulb, Tach/speedo-1.5wt-1 1/4

Bulb, Tach/speedo-1.5wt-1 1/4

11

Кольцо, резиновое

Кольцо, резиновое

11

Кольцо, резиновое

Кольцо, резиновое

12

Bulb, Tach Speedo Assy

Bulb, Tach Speedo Assy

12

Bulb, Tach Speedo Assy

Bulb, Tach Speedo Assy

13

Backclamp, Tach/speedo Faria 5

Backclamp, Tach/speedo Faria 5

13

Backclamp, Tach/speedo Faria 5

Backclamp, Tach/speedo Faria 5

14

Трос спидометра

Трос спидометра

14

Трос спидометра

Трос спидометра

15

Nut, Hex 10-32 W/lockwasher (4 Per Pack)

Nut, Hex 10-32 W/lockwasher (4 Per Pack)

16

Lens/reflector-headlight(ref0609-244)

Lens/reflector-headlight(ref0609-244)

16

Lens/reflector-headlight(ref0609-244)

Lens/reflector-headlight(ref0609-244)

17

Spring, Adjustment-headlight (2 Per Pack)

Spring, Adjustment-headlight (2 Per Pack)

17

Spring, Adjustment-headlight (2 Per Pack)

Spring, Adjustment-headlight (2 Per Pack)

18

Collar, Locking-headlight (thin)

Collar, Locking-headlight (thin)

18

Collar, Locking-headlight (thin)

Collar, Locking-headlight (thin)

19

Клепка пластик (5 шт в упаковке)

Клепка пластик (5 шт в упаковке)

19

Клепка пластик (5 шт в упаковке)

Клепка пластик (5 шт в упаковке)

20

Лампа Н4

Лампа Н4

20

Лампа Н4

Лампа Н4

21

Винт

Винт

22

Nut, Speed 1/4-20 U-type (5 Per Pack)

Nut, Speed 1/4-20 U-type (5 Per Pack)

22

Nut, Speed 1/4-20 U-type (5 Per Pack)

Nut, Speed 1/4-20 U-type (5 Per Pack)

23

Fuel Ga, 2 Dc

Fuel Ga, 2 Dc

23

Fuel Ga, 2 Dc

Fuel Ga, 2 Dc

24

Harness, Fuel Gauge

Harness, Fuel Gauge

24

Harness, Fuel Gauge

Harness, Fuel Gauge

25

Backclamp, 2 Faria Fuel Gauge 0620-148

Backclamp, 2 Faria Fuel Gauge 0620-148

25

Backclamp, 2 Faria Fuel Gauge 0620-148

Backclamp, 2 Faria Fuel Gauge 0620-148

26

Washer, Flat- #8 X .438 X .049 Z&y (20 Per Pack)

Washer, Flat- #8 X .438 X .049 Z&y (20 Per Pack)

27

Nut, Hex 8-32 W/lockwasher (5 Per Pack)

Nut, Hex 8-32 W/lockwasher (5 Per Pack)

27

Nut, Hex 8-32 W/lockwasher (5 Per Pack)

Nut, Hex 8-32 W/lockwasher (5 Per Pack)

28

Лампа 12 V 3.4w

Лампа 12 V 3.4w

28

Лампа 12 V 3.4w

Лампа 12 V 3.4w
