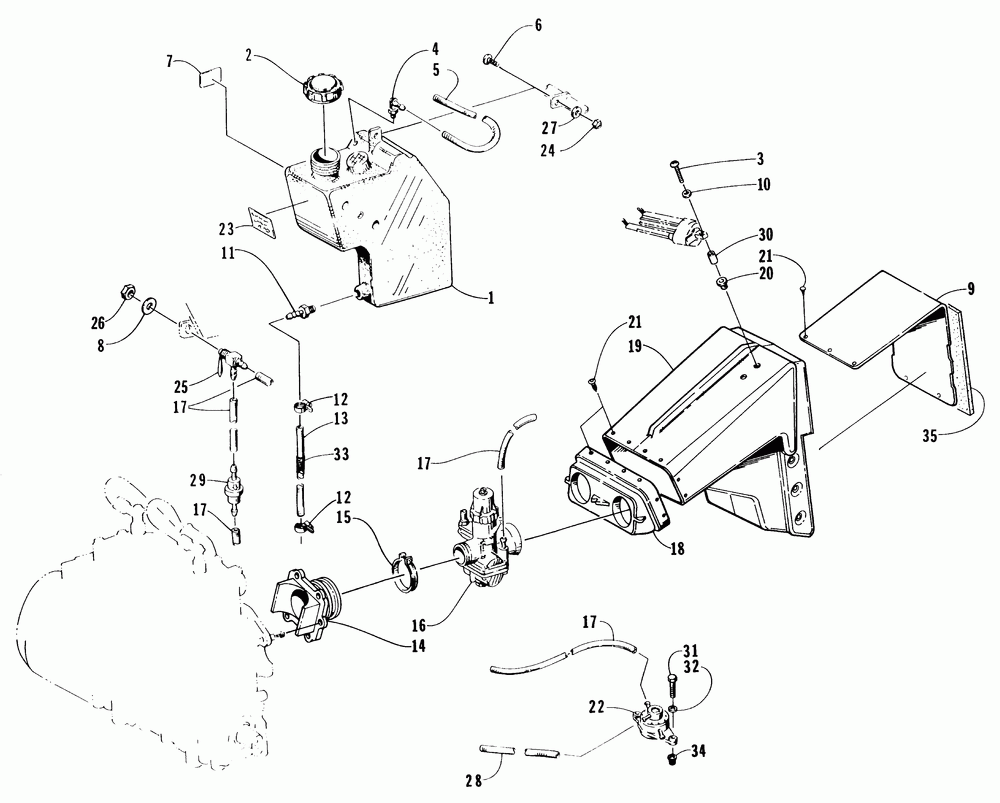

Intake, oil tank and fuel pump

Arctic Cat ZR 440

Intake, oil tank and fuel pump

#

oem код

название

цена

1

Tank, Oil-w/o Sensor

Tank, Oil-w/o Sensor

2

Cap, Oil Tank-w/seal

Cap, Oil Tank-w/seal

3

Screw, Mach-phtrh #10-32x1.75 Z&y (5 Per Pack)

Screw, Mach-phtrh #10-32x1.75 Z&y (5 Per Pack)

4

Fitting, Vent-90 Degree (5 Per Pack)

Fitting, Vent-90 Degree (5 Per Pack)

4

Fitting, Vent-90 Degree (5 Per Pack)

Fitting, Vent-90 Degree (5 Per Pack)

5

Hose, Vent-25 Ft

Hose, Vent-25 Ft

5

Hose, Vent-25 Ft

Hose, Vent-25 Ft

6

Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)

Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)

6

Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)

Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)

7

Decal, Oil Tank

Decal, Oil Tank

7

Decal, Oil Tank

Decal, Oil Tank

8

Washer, Flat-9/16 Id

Washer, Flat-9/16 Id

8

Washer, Flat-9/16 Id

Washer, Flat-9/16 Id

9

Divider, Air Silencer

Divider, Air Silencer

9

Divider, Air Silencer

Divider, Air Silencer

10

Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)

Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)

10

Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)

Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)

11

Outlet, Oiltank-5/16 Tube

Outlet, Oiltank-5/16 Tube

11

Outlet, Oiltank-5/16 Tube

Outlet, Oiltank-5/16 Tube

12

Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)

Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)

12

Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)

Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)

13

Hose, Gas 1/4 X25'

Hose, Gas 1/4 X25'

13

Hose, Gas 1/4 X25'

Hose, Gas 1/4 X25'

13

Hose, Gas 1/4 X100'

Hose, Gas 1/4 X100'

13

Hose, Gas 1/4 X100'

Hose, Gas 1/4 X100'

14

Pipe Assy, Intake

Pipe Assy, Intake

15

Clamp, Intake,m52

Clamp, Intake,m52

15

Clamp, Intake,m52

Clamp, Intake,m52

16

Carb.-vm 34

Carb.-vm 34

16

Carb.-vm 34

Carb.-vm 34

17

Hose, Gas 3/16 X100'

Hose, Gas 3/16 X100'

17

Hose, Gas 3/16 X100'

Hose, Gas 3/16 X100'

17

Hose, Gas Line-3/16x25'

Hose, Gas Line-3/16x25'

17

Hose, Gas Line-3/16x25'

Hose, Gas Line-3/16x25'

18

Boot, Air Silencer

Boot, Air Silencer

18

Boot, Air Silencer

Boot, Air Silencer

20

Insert, Al Series Als7-1032-225 (5 Per Pack)

Insert, Al Series Als7-1032-225 (5 Per Pack)

20

Insert, Al Series Als7-1032-225 (5 Per Pack)

Insert, Al Series Als7-1032-225 (5 Per Pack)

21

Зажим 5/32 (отпускается по 5 шт)

Зажим 5/32 (отпускается по 5 шт)

21

Зажим 5/32 (отпускается по 5 шт)

Зажим 5/32 (отпускается по 5 шт)

22

Fuel Pump-assy.(df52-152)

Fuel Pump-assy.(df52-152)

22

Fuel Pump-assy.(df52-152)

Fuel Pump-assy.(df52-152)

23

Decal, Fuel Shut-off Valve

Decal, Fuel Shut-off Valve

23

Decal, Fuel Shut-off Valve

Decal, Fuel Shut-off Valve

24

Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)

Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)

24

Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)

Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)

25

Valve, Shut Off-fuel

Valve, Shut Off-fuel

25

Valve, Shut Off-fuel

Valve, Shut Off-fuel

26

Nut, Jam-9/16-18 Unf

Nut, Jam-9/16-18 Unf

26

Nut, Jam-9/16-18 Unf

Nut, Jam-9/16-18 Unf

27

Шайба 1/4 X .625 X .065 (отпускается по 10 шт)

Шайба 1/4 X .625 X .065 (отпускается по 10 шт)

28

Шланг

Шланг

28

Шланг

Шланг

29

Filter, Fuel-inline (2 Per Pack)

Filter, Fuel-inline (2 Per Pack)

29

Filter, Fuel-inline (2 Per Pack)

Filter, Fuel-inline (2 Per Pack)

30

Spacer, Fuel Pump (2 Per Pack)

Spacer, Fuel Pump (2 Per Pack)

30

Spacer, Fuel Pump (2 Per Pack)

Spacer, Fuel Pump (2 Per Pack)

31

Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)

Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)

31

Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)

Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)

32

Washer, Spr Lock-1/4 .252x.489x.077 Z&y (10 Per Pack)

Washer, Spr Lock-1/4 .252x.489x.077 Z&y (10 Per Pack)

32

Washer, Spr Lock-1/4 .252x.489x.077 Z&y (10 Per Pack)

Washer, Spr Lock-1/4 .252x.489x.077 Z&y (10 Per Pack)

33

Loom, 6" (0619-342)-.413 Id

Loom, 6" (0619-342)-.413 Id

33

Loom, 6" (0619-342)-.413 Id

Loom, 6" (0619-342)-.413 Id

34

Insert, Threaded-ats2-420 (.25 X 20).620

Insert, Threaded-ats2-420 (.25 X 20).620

34

Insert, Threaded-ats2-420 (.25 X 20).620

Insert, Threaded-ats2-420 (.25 X 20).620

35

Foam, Airbox-back

Foam, Airbox-back

35

Foam, Airbox-back

Foam, Airbox-back
