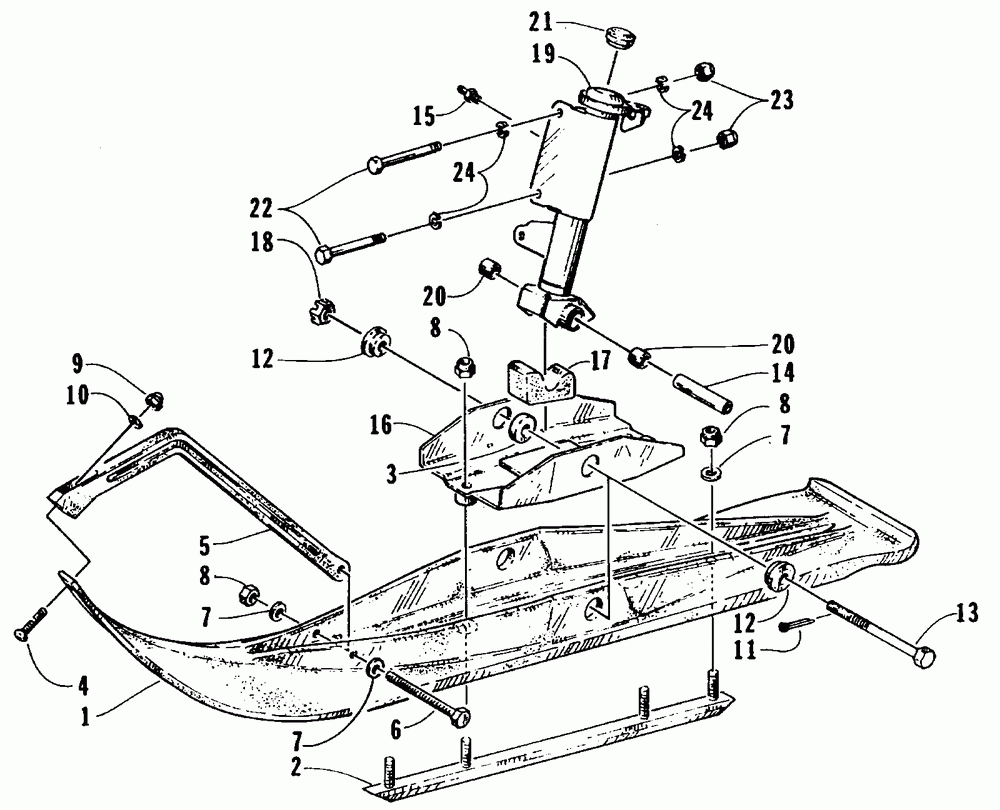

Лыжа

Arctic Cat EXT POWDER SPECIAL
Arctic Cat
#oem кодцена
1
0603-578
Ski, Plastic-mach
3
0603-591
Spacer, Spindle Afs/zr
4
8009-672
Screw, Mach-crph 5/16-18x1.0 Z&y
5
0603-357
Handle, Ski (plastic)
6
8002-231
Screw, Cap-hh 3/8-16 X3.00 G5 Z&y (5 Per Pack)
7
8050-272
Washer, Flat- 3/8 X .734 X .063 Z&y (5 Per Pack)
8
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
9
0123-107
Nut, 5/16-18 Unc Nylon (4 Per Pack)
10
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
11
0123-458
Палец 1/8x1 (отпуск по 10 шт )
12
0603-582
Sleeve, Ski-afs/zr
13
0623-477
Screw, Cap-hh 7/16-20x 5.00 W/hole
14
2603-548
Ось
15
0623-010
Zerk, Grease (long) (5 Per Pack)
16
0703-263
Saddle, Ski-weld't
17
0603-036
Отбойниклыжи- резиновый (отпуск.по 4 шт)
18
0623-174
Nut, Hex-slotted 7/16-20 Unf (2 Per Pack)
19
0703-266
Spindle/housing-mfg-ass, Y Rh
19
0703-267
Spindle/housing-mfg-ass, Y Lh
20
0603-158
Вкладыш (отпускается по 2 шт)
21
0603-049
Cap, Spindle (5 Per Pack)
22
8013-232
Screw, Cap-hh 3/8-16 X 3.25 Gr8 Z&y (5 Per Pack)
23
0623-026
Nut, Flex-lock3/8-16 Unc (5 Per Pack)
24
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
