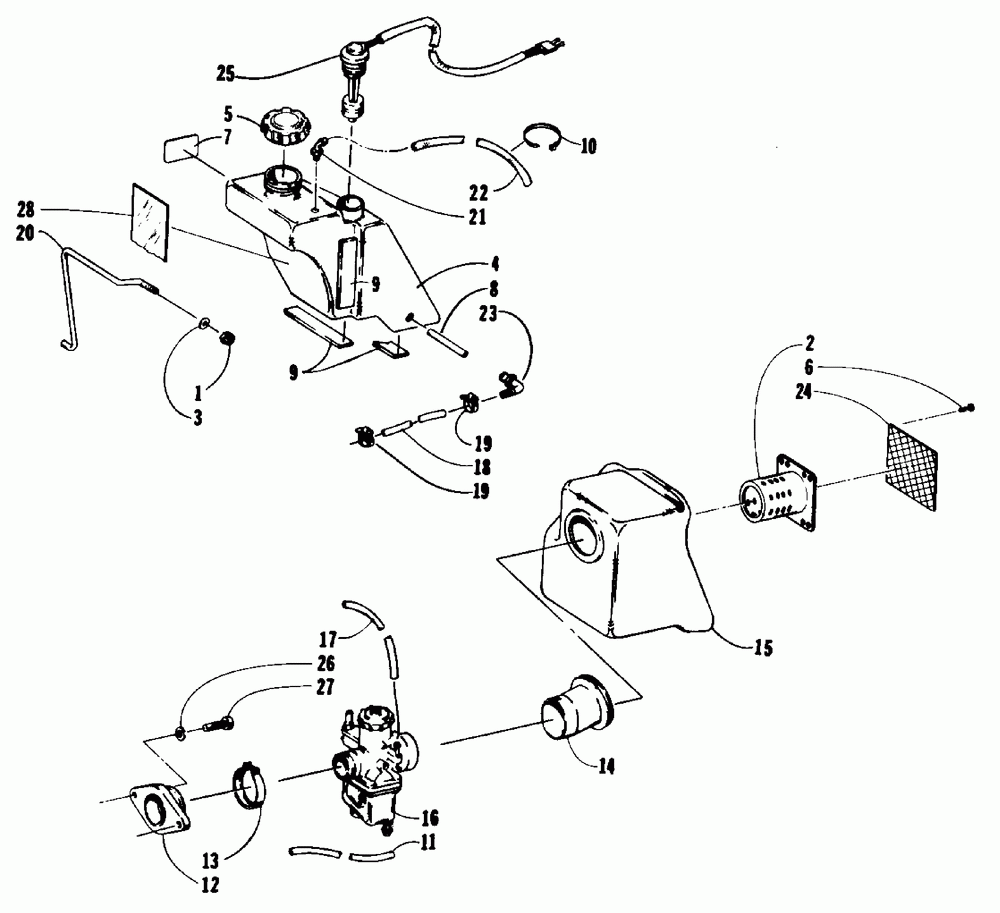

Oil tank, carburetor, fuel pump and silencer

Arctic Cat CHEETAH 340
Arctic Cat
#oem кодцена
1
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
2
0670-151
Funnel, Air Silencer
3
8050-212
Шайба 1/4 X .500 X .063 (отпуск по 10 шт)
5
0670-341
Cap, Oil Tank-w/seal
6
0623-165
Зажим 5/32 (отпускается по 5 шт)
7
0611-384
Decal, Oil Tank
8
0670-079
Extension, Oil Tank Fitting
9
0706-707
Tape, Foam - 5ft Roll
10
0123-788
Стяжка кабеля (отпуск.по 10 шт)
11
0610-007
Шланг
12
0115-544
Flange, Carb Vm32-454
13
0109-709
Хомут (32/34 Mm)
14
0670-142
Boot, Carb/airbox
15
0670-342
Silencer, Air-fabr
16
0670-337
Carb, Vm32-290
17
0610-017
Hose, Gas 3/16 X100'
18
0610-011
Hose, Oilline 5/16x25'
19
0124-045
Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)
20
0606-251
Brkt, Oil Tank
21
0670-242
Fitting, Vent-90 Degree (5 Per Pack)
22
0610-010
Hose, Vent-25 Ft
23
0670-075
Fitting, Elbow
24
0670-155
Экран, глушителя нижняя часть
25
0609-031
Sensor, Low Oil
26
3423-204
Шайба
27
0623-116
Bolt, Socket Low Head M8 X 1.25 X 25 Y&z (5 Per Pack)
28
0706-990
Foil 6 X12 (0619-727)
