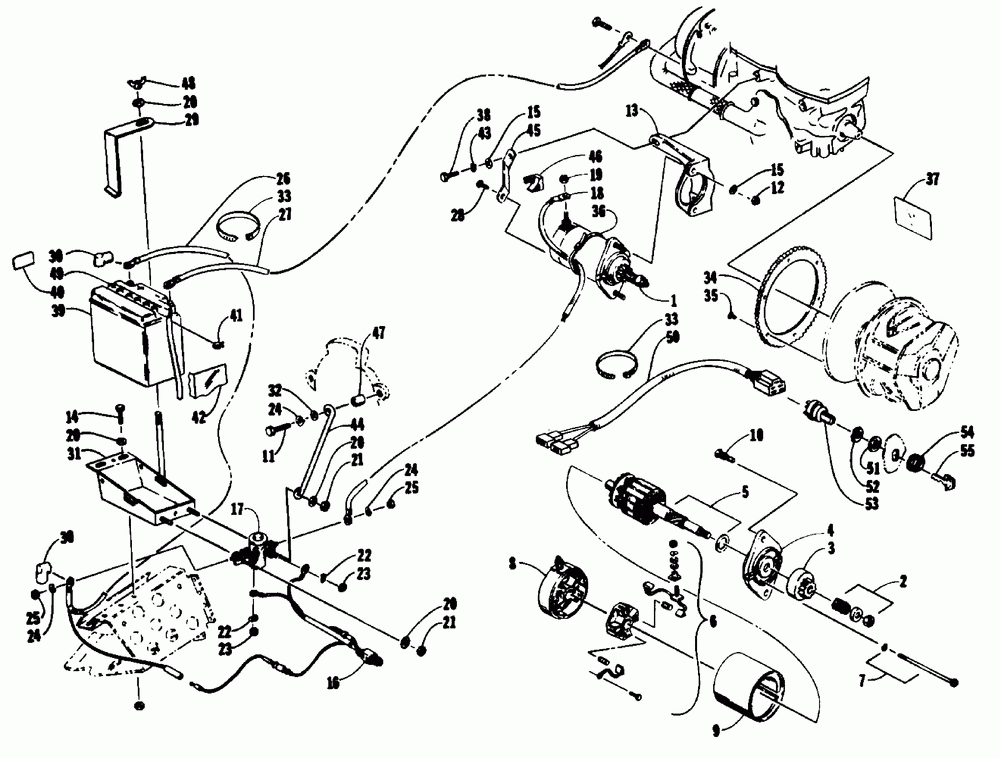

Electric start assembly

Arctic Cat COUGAR
Arctic Cat
#oem кодцена
1
0745-033
Motor, Starter W/short Bolt
2
0745-091
Kit, Pinion Stopper- Elec Start
3
0637-265
Ремонтный комплект бендикса
4
0639-197
Kit, Endcap Replacement
6
0645-275
Kit, Brush & Spring-es Hd Short
7
0645-053
Bolt, Starter Motor (5 Per Pack)
8
0645-054
Commutator Cap
10
0623-093
Bolt, 5/16-18x1 1/2 Ribbed (5 Per Pack)
10
0623-307
Bolt, Ribbed-trh 5/16-18x1 1/4
11
8002-140
Screw, Cap-hh 5/16-18 X2.75 G5 Z&y (5 Per Pack)
12
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
13
0645-090
Brkt, Starter Motor
14
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
15
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
16
0686-042
Harness, Electric Start
17
0645-078
Solenoid, Electric Start(comes W/ Kit 1)
18
0645-115
Cable, Solenoid-to-starter [52"]
19
0623-122
Nut , Flex Lock-thin 1/4-20 (5 Per Pack)
20
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
21
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
22
8051-152
Washer, Spr Lock-#10 .193x.334x.047 Z&y (20 Per Pack)
23
8042-272
Nut, 10-32 Hex-reg-gr2 Z&y (5 Per Pack)
24
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
25
8043-452
Гайка
26
0645-015
Cable, Batt-sol 14.3
27
0645-080
Cable, Batt-grd 30
28
0623-275
Screw, Self Tap-hwh 1/4-20x3/4 (5 Per Pack)
29
0645-160
Strap, Battery Holdown
30
0645-019
Пыльник
31
0745-041
Tray, Battery-weldment
32
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
33
0123-788
Стяжка кабеля (отпуск.по 10 шт)
34
0620-053
Gear, Ring
35
0623-212
Screw, Flat Soc/hd-1/4-20x9/16 (6 Per Pack)
36
0623-144
Стяжка кабеля 17.5 (отпускается по 5 шт)
37
1611-414
Decal, Caution-battery & Engine
38
3007-846
Bolt, M8x1.25x35
40
0645-151
Наклейка предостережения
41
0645-152
Зажим
42
0645-082
Кожух АКБ
43
8051-247
Washer, Spr Lock-5/16 .314x.593x.097 Z&y (5 Per Pack)
44
0645-156
Bracket, Support-battery Tray
45
0645-110
Brkt, Support-starter
46
0645-119
Snubber, Starter
47
0645-158
Spacer, Batt Support
48
0623-325
Nut, Wing - 1/4-20 Nylon Sl (5 Per Pack)
49
0645-045
Крышка (отпуск.по 6шт)
50
0686-043
Harness, Switch-electric Start
51
0123-899
Washer, Ignition (5 Per Pack)
52
0123-900
Гайка
53
0609-082
Выключатель зажигания
54
0609-113
Nut, Retaining 13/16-20 Black Plastic (5 Per Pack)
55
0609-412
Key, Ign. Switch
0630-016
Fuse, 7.5 Amp-3ag (.25 Dia X 1.25) Not Illustrated
0630-002
Diode, Charging Not Illustrated
