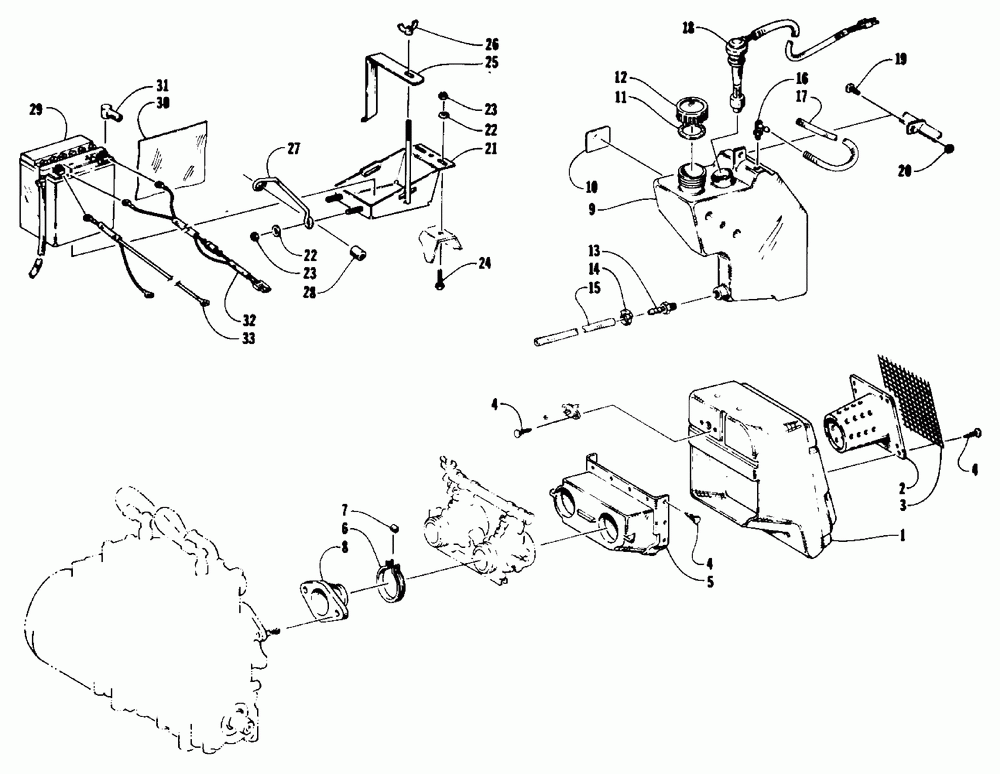

Air silencer, battery, and oil tank

Arctic Cat EXT EFI
Arctic Cat
#oem кодцена
1
0670-293
Silencer, Air
2
0670-151
Funnel, Air Silencer
3
0670-155
Экран, глушителя нижняя часть
4
0623-165
Зажим 5/32 (отпускается по 5 шт)
5
0670-221
Boot, Air Silencer
6
0670-200
Clamp, Carb Flange-vm40 W/spacer
7
0670-210
Проставка-9мм
8
0670-198
Flange, Carb-40mm W/clamp
9
0670-244
Tank, Oil W/inserts
10
1611-564
Decal, Oil Tank
11
0109-733
Прокладка крышки бака
12
0670-341
Cap, Oil Tank-w/seal
13
0670-292
Fitting, Coolant Tank (2 Per Pack)
14
0124-045
Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)
15
0610-011
Hose, Oilline 5/16x25'
16
0670-242
Fitting, Vent-90 Degree (5 Per Pack)
17
0610-010
Hose, Vent-25 Ft
18
0609-503
Sensor, Oil Level-rotary W/seal
19
8007-580
Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)
20
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
21
0745-041
Tray, Battery-weldment
22
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
23
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
24
8002-044
Screw, Cap-hh 1/4-20 X1.25 G5 Z&y (5 Per Pack)
25
0645-160
Strap, Battery Holdown
26
0623-325
Nut, Wing - 1/4-20 Nylon Sl (5 Per Pack)
27
0645-156
Bracket, Support-battery Tray
28
0645-158
Spacer, Batt Support
29
0745-040
Battery Pkg(0645-063)
30
0645-102
Foil, 4x5.75-heat Shield-top
31
0645-019
Пыльник
32
0686-151
Harness, Battery Fuse
33
0686-175
Harness, Battery Ground
34
0630-014
Fuse, 10 Amp
