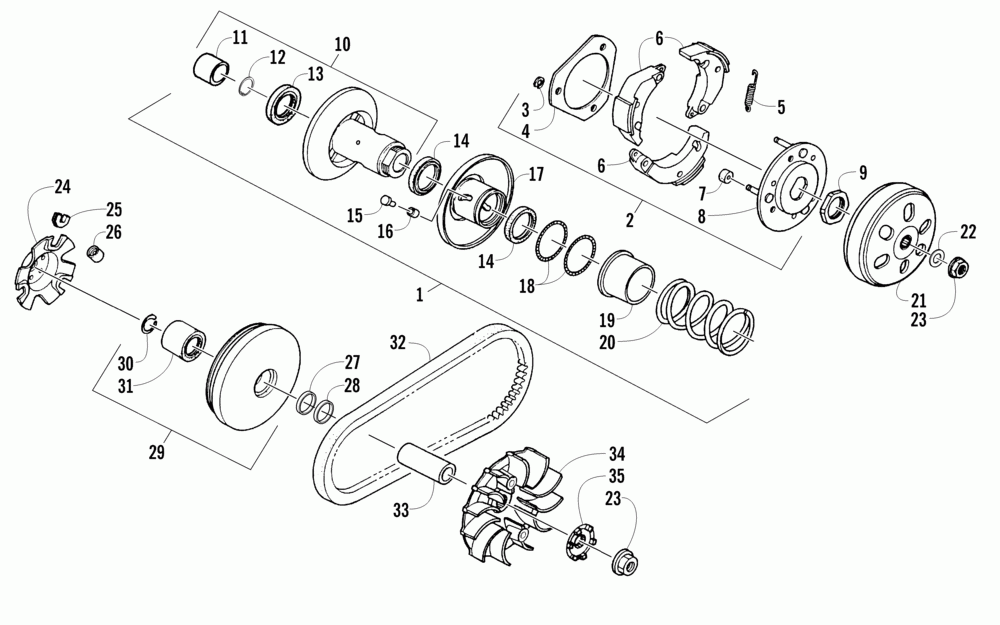

Сцепление

Arctic Cat ATV 150 UTILITY RED

Сцепление

#

oem код

название

цена

1

Pulley Sub Assy (inc. 2-20)

Pulley Sub Assy (inc. 2-20)

2

Plate Assy Drive (inc. 3-8)

Plate Assy Drive (inc. 3-8)

3

Cir Clip 7mm (5 Per Pack)

Cir Clip 7mm (5 Per Pack)

4

Plate Clutch Side

Plate Clutch Side

5

Spring Clutch (3 Per Pack)

Spring Clutch (3 Per Pack)

6

Weight Clutch (3 Per Pack)

Weight Clutch (3 Per Pack)

7

Rubber Clutch Damper (2 Per Pack)

Rubber Clutch Damper (2 Per Pack)

8

Plate Comp Drive

Plate Comp Drive

9

Nut Special 28mm

Nut Special 28mm

10

Face Assy Driven (inc. 11-13)

Face Assy Driven (inc. 11-13)

11

Brg Ndl 20*29*18

Brg Ndl 20*29*18

12

Cir Clip In 28mm (5 Per Pack)

Cir Clip In 28mm (5 Per Pack)

13

Brg Ball Radial 6902u 15*28*7

Brg Ball Radial 6902u 15*28*7

14

Seal Driven Face 34*41*4 (2 Per Pack)

Seal Driven Face 34*41*4 (2 Per Pack)

15

Pin Roller Guide

Pin Roller Guide

16

Roller Guide (4 Per Pack)

Roller Guide (4 Per Pack)

17

Face Comp Movable Driven

Face Comp Movable Driven

18

O-ring Pinion Cap

O-ring Pinion Cap

19

Collar Seal

Collar Seal

20

Spg Driven Face

Spg Driven Face

21

Outer Clutch

Outer Clutch

22

Washer Thrust

Washer Thrust

23

Nut Flange 12mm (10 Per Pack)

Nut Flange 12mm (10 Per Pack)

24

Plate Ramp

Plate Ramp

25

Piece Slide (3 Per Pack)

Piece Slide (3 Per Pack)

26

Roller Comp Weight (6 Per Pack)

Roller Comp Weight (6 Per Pack)

27

Collar Drive Face

Collar Drive Face

28

Collar Drive Face

Collar Drive Face

29

Face Comp Movable Drive (inc. 30-31)

Face Comp Movable Drive (inc. 30-31)

30

Clip Piston Pin 33mm (5 Per Pack)

Clip Piston Pin 33mm (5 Per Pack)

31

Collar Drive Face

Collar Drive Face

32

Belt Drive

Belt Drive

33

Boss Drive Face

Boss Drive Face

34

Face Drive

Face Drive

35

Ratchet Kick Starter

Ratchet Kick Starter
