Головка цилиндра задняя Оригинальные запчасти для мотоциклов KTM 1190 ADV GREY ENGINE (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

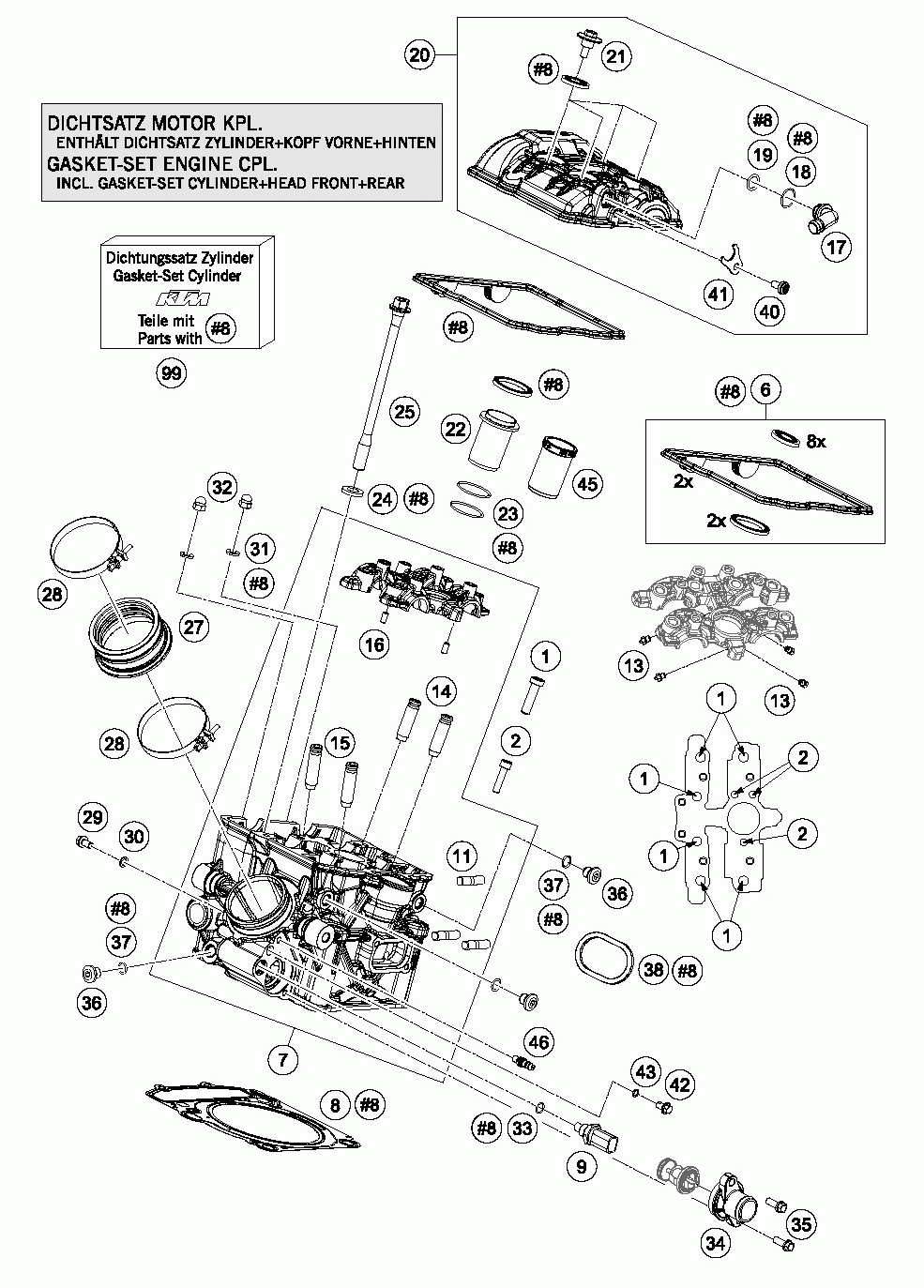

Головка цилиндра задняя

KTM 1190 ADV GREY ENGINE

Головка цилиндра задняя

#

oem код

название

цена

1

Ah Screw Din7984-m 8x30 10.9

Ah Screw Din7984-m 8x30 10.9

2

Ah Screw Din0912-m 6x25 10.9

Ah Screw Din0912-m 6x25 10.9

6

Valve Cover Gasket Set

Valve Cover Gasket Set

7

Cyl. Head Cpl. Rear 2014

Cyl. Head Cpl. Rear 2014

8

Cylinder Head Gasket Mls

Cylinder Head Gasket Mls

9

Temperat.-sensor Water Lc8 02

Temperat.-sensor Water Lc8 02

11

Stud M 8x16 10.9

Stud M 8x16 10.9

13

Oil Jet 50 05

Oil Jet 50 05

14

Valve Guide Exhaust 08

Valve Guide Exhaust 08

15

Valve Giude Intake 6mm

Valve Giude Intake 6mm

16

Needle Roller Din5402 5x9, 8

Needle Roller Din5402 5x9, 8

17

Connecting Angle

Connecting Angle

18

O-ring 15, 00x1, 50 Viton

O-ring 15, 00x1, 50 Viton

19

O-ring 12, 00x2, 00 Nbr 70

O-ring 12, 00x2, 00 Nbr 70

20

Valve Cover Rear

Valve Cover Rear

21

Collar Screw M 6 Ws=10 03

Collar Screw M 6 Ws=10 03

22

Spark Plug Shaft

Spark Plug Shaft

23

O-ring 29, 87x1, 78 Viton

O-ring 29, 87x1, 78 Viton

24

Washer 11, 1x20x3 08

Washer 11, 1x20x3 08

25

Cylinder Head Screw 08

Cylinder Head Screw 08

27

Intake Boot

Intake Boot

28

Hose Clamp Gemi 75

Hose Clamp Gemi 75

29

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

30

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

31

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

32

Cap Nut M6 Stainless Steel

Cap Nut M6 Stainless Steel

33

O-ring 10, 00x2, 00 Silcone

O-ring 10, 00x2, 00 Silcone

34

Water Connection Cpl.

Water Connection Cpl.

35

Винт М6х20

Винт М6х20

36

Резьбовая пробка

Резьбовая пробка

37

O-ring 9x1, 5 V80 Sh

O-ring 9x1, 5 V80 Sh

38

Exhaust Pipe Flange Gasket

Exhaust Pipe Flange Gasket

41

Connecting Angle Retain. Plate

Connecting Angle Retain. Plate

42

Vent Screw M6x10 Cpl.

Vent Screw M6x10 Cpl.

43

O-ring 5, 0x1, 2 Nbr 70

O-ring 5, 0x1, 2 Nbr 70

45

Insert Spark-plug Shaft

Insert Spark-plug Shaft

46*

Vacuum Connection M6/0.75mm

Vacuum Connection M6/0.75mm

99

Gasket Kit Cylinder+head F+r

Gasket Kit Cylinder+head F+r
