Механизм переключения Оригинальные запчасти для мотоциклов KTM 1290 SUPERDUKE R BLACK ENGINE (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

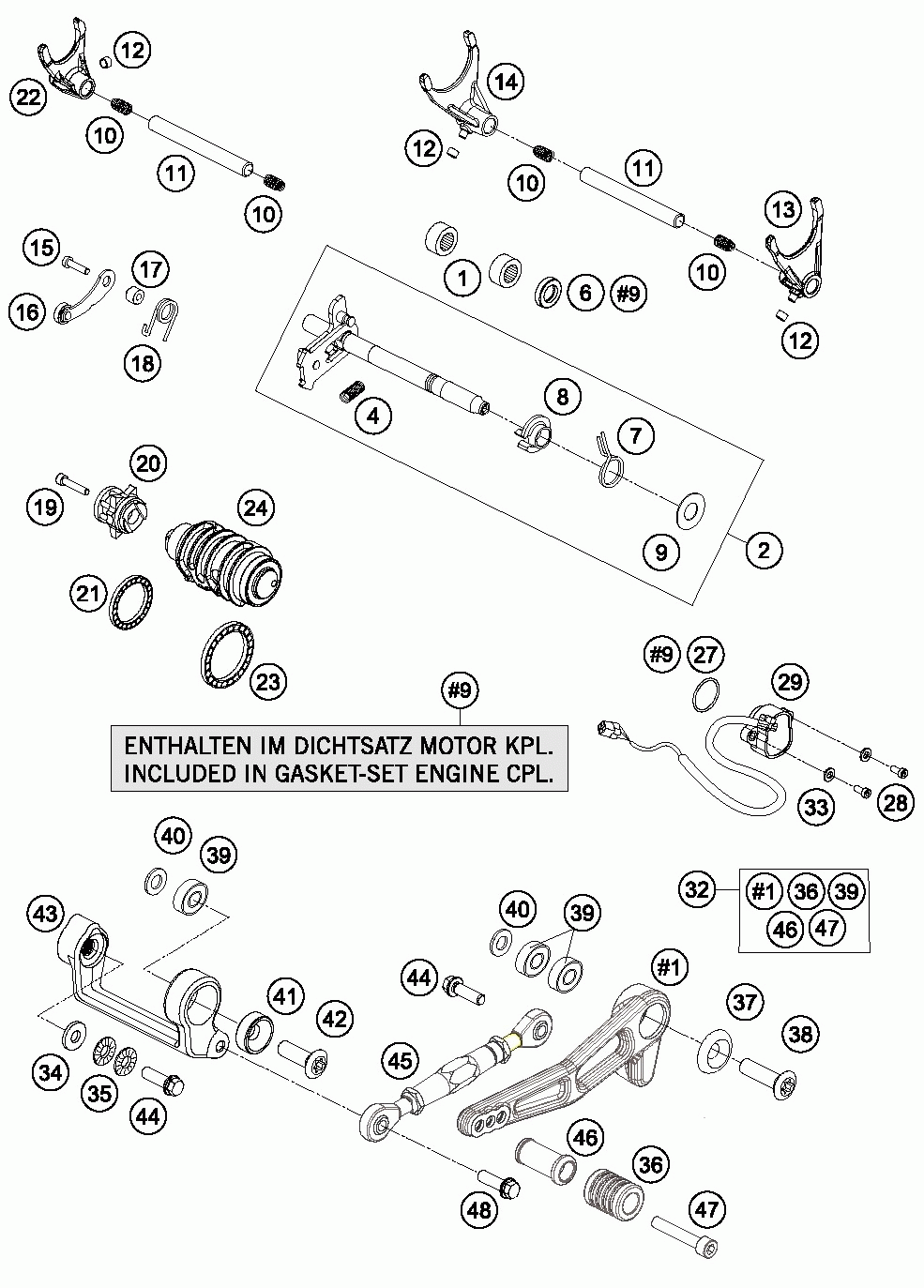

Механизм переключения

KTM 1290 SUPERDUKE R BLACK ENGINE

Механизм переключения

#

oem код

название

цена

1

Needle Bear.hk 1412 14x20x12

Needle Bear.hk 1412 14x20x12

2

Shift Shaft Cpl.

Shift Shaft Cpl.

4

Tensioning Spring 0, 8mm

Tensioning Spring 0, 8mm

6

Shaft Seal Ring 14x24x6 B

Shaft Seal Ring 14x24x6 B

7

Returnspring 2mm

Returnspring 2mm

8

Spring Guide

Spring Guide

9

Stop Disk 14x30x1

Stop Disk 14x30x1

10

Pressure Spring 0, 9mm

Pressure Spring 0, 9mm

11

Shift Rail 11, 8x105mm

Shift Rail 11, 8x105mm

12

Shifting Roller 6x8x5, 2

Shifting Roller 6x8x5, 2

13

Shift Fork 2-3 Gear

Shift Fork 2-3 Gear

14

Shifting Fork 08

Shifting Fork 08

15

Винт М6х20

Винт М6х20

16

Locking Lever Cpl. 07

Locking Lever Cpl. 07

17

Sleeve For Locking Lever 07

Sleeve For Locking Lever 07

18

Spring - Locking Lever

Spring - Locking Lever

19

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

20

Shift Drum Locating Cpl.

Shift Drum Locating Cpl.

21

Ball Bearing 61805 C3

Ball Bearing 61805 C3

22

Shift Fork 5-6 Gear

Shift Fork 5-6 Gear

23

Grooved Ball Bearing 6808 Jrc3

Grooved Ball Bearing 6808 Jrc3

24*

Shifting Drum Cpl.

Shifting Drum Cpl.

27

Уплотнительное кольцо 24x2, 5 витон

Уплотнительное кольцо 24x2, 5 витон

28

Cyl. Screw Din6912 M5x16 8.8

Cyl. Screw Din6912 M5x16 8.8

29

Gear-position Sensor

Gear-position Sensor

32

Shift Lever Cpl.

Shift Lever Cpl.

33

Шайба Din0125-в 5, 3

Шайба Din0125-в 5, 3

34

Steel Washer 6, 4x17x3

Steel Washer 6, 4x17x3

35

Pair Of Washers M 6 Nordlock

Pair Of Washers M 6 Nordlock

36

Rubber For Shift Lever 05

Rubber For Shift Lever 05

37

Special Washer D=23x7, 2mm

Special Washer D=23x7, 2mm

38

Ah-collar Screw M8x30 Isa45

Ah-collar Screw M8x30 Isa45

39

Grooved Ball Bear. 608 2rs C3

Grooved Ball Bear. 608 2rs C3

40

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

41

Special Washer D=20x6, 8mm

Special Washer D=20x6, 8mm

42

Counter-sunk Screw Isa45 M8x26

Counter-sunk Screw Isa45 M8x26

43

Relay Lever Black 07

Relay Lever Black 07

44

Винт М6х20

Винт М6х20

45

Shift Rod Cpl.

Shift Rod Cpl.

46

Step Plate Shifting Lever

Step Plate Shifting Lever

47

Ah Screw Din0912-m 6x35

Ah Screw Din0912-m 6x35

48

Hh Collar Screw M6x16 Isa 30

Hh Collar Screw M6x16 Isa 30
