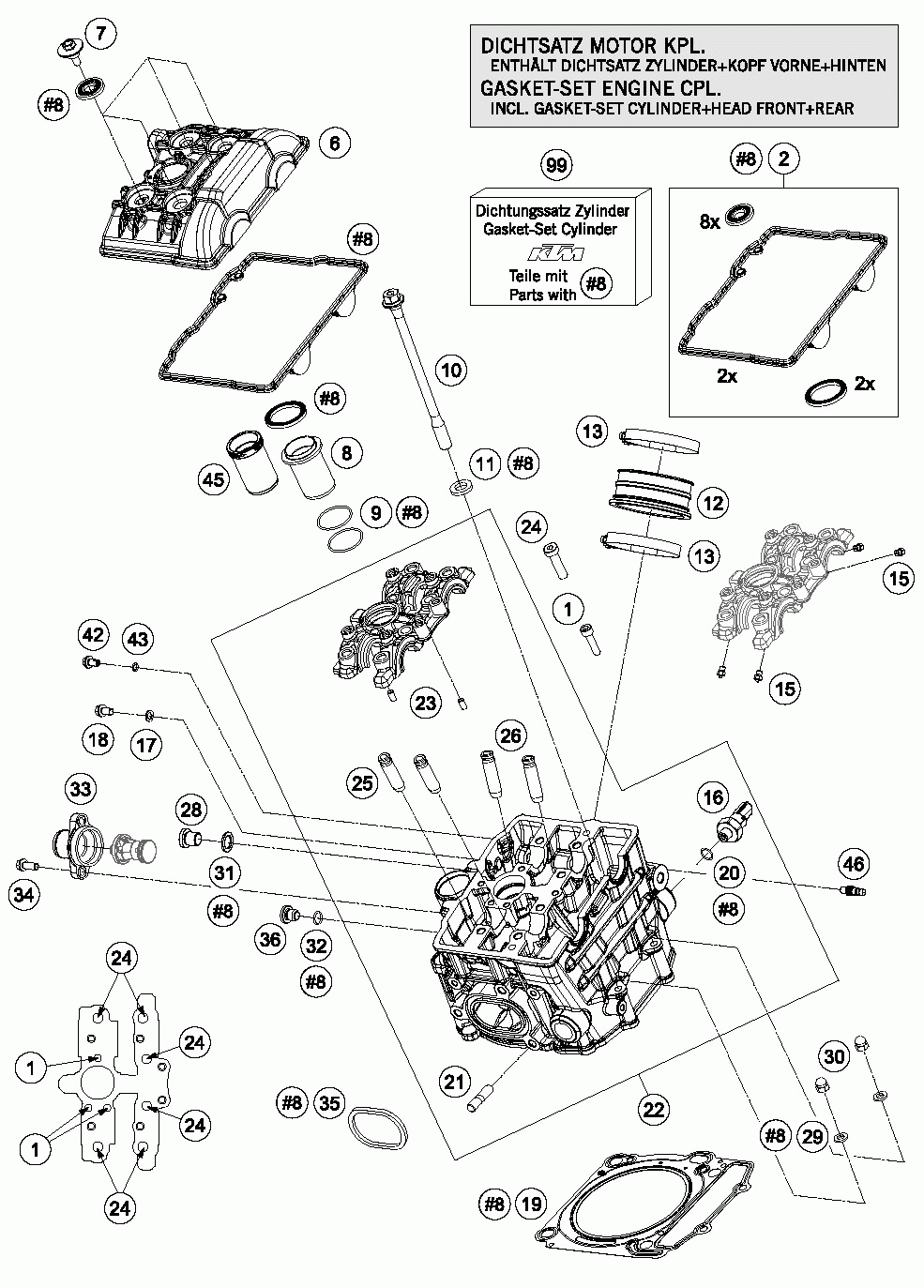

Головка цилиндра передняя

KTM 1290 SUPERDUKE R BLACK ENGINE
KTM
#oem кодцена
1
0912060255
Ah Screw Din0912-m 6x25 10.9
2
61236099100
Valve Cover Gasket Set
6
6123605210033
Valve Cover Front 09
7
60036052020
Collar Screw M 6 Ws=10 03
8
61336075100
Spark Plug Shaft
9
0770298178
O-ring 29, 87x1, 78 Viton
10
61236079000
Cylinder Head Screw 08
11
61236079050
Washer 11, 1x20x3 08
12
61336044000
Intake Boot
13
61336048000
Hose Clamp Gemi 75
15
60030063050
Oil Jet 50 05
16
61238091000
Oil Pressure Switch "bitron"
17
0603061001
Cu-seal Ring Din7603-6x10x1
18
0025060106
Hh Collar Screw M6x10 Tx30
19
61330036085
Cylinder Head Gasket 0, 85
20
0770080015
O-ring 8, 00x1, 5 Nbr 70
21
0835080165
Stud M 8x16 10.9
22
6133602010024
Cyl. Head Cpl. Front 2014
23
0402050980
Needle Roller Din5402 5x9, 8
24
0984080305
Ah Screw Din7984-m 8x30 10.9
25
61236026001
Valve Guide Exhaust 08
26
61236025001
Valve Giude Intake 6mm
28
0908120153
Plug Din0908-m12x1, 5
29
0125060003
Washer Din0125-a 6, 4
30
61230045000
Cap Nut M6 Stainless Steel
31
58038022000
Кольцо 12x18x1, 5
32
07700900151
O-ring 9x1, 5 V80 Sh
33
61235019100
Water Connection Cpl.
34
0025060206
Винт М6х20
35
69005005100
Exhaust Pipe Flange Gasket
36
77336056095
Резьбовая пробка
42
59036006090
Vent Screw M6x10 Cpl.
43
0770050012
O-ring 5, 0x1, 2 Nbr 70
45
61336074100
Insert Spark-plug Shaft
49
60036023200
Vacuum Connection M6/0.75mm
99
69130097000
Gasket Kit Cylinder+head F+r
