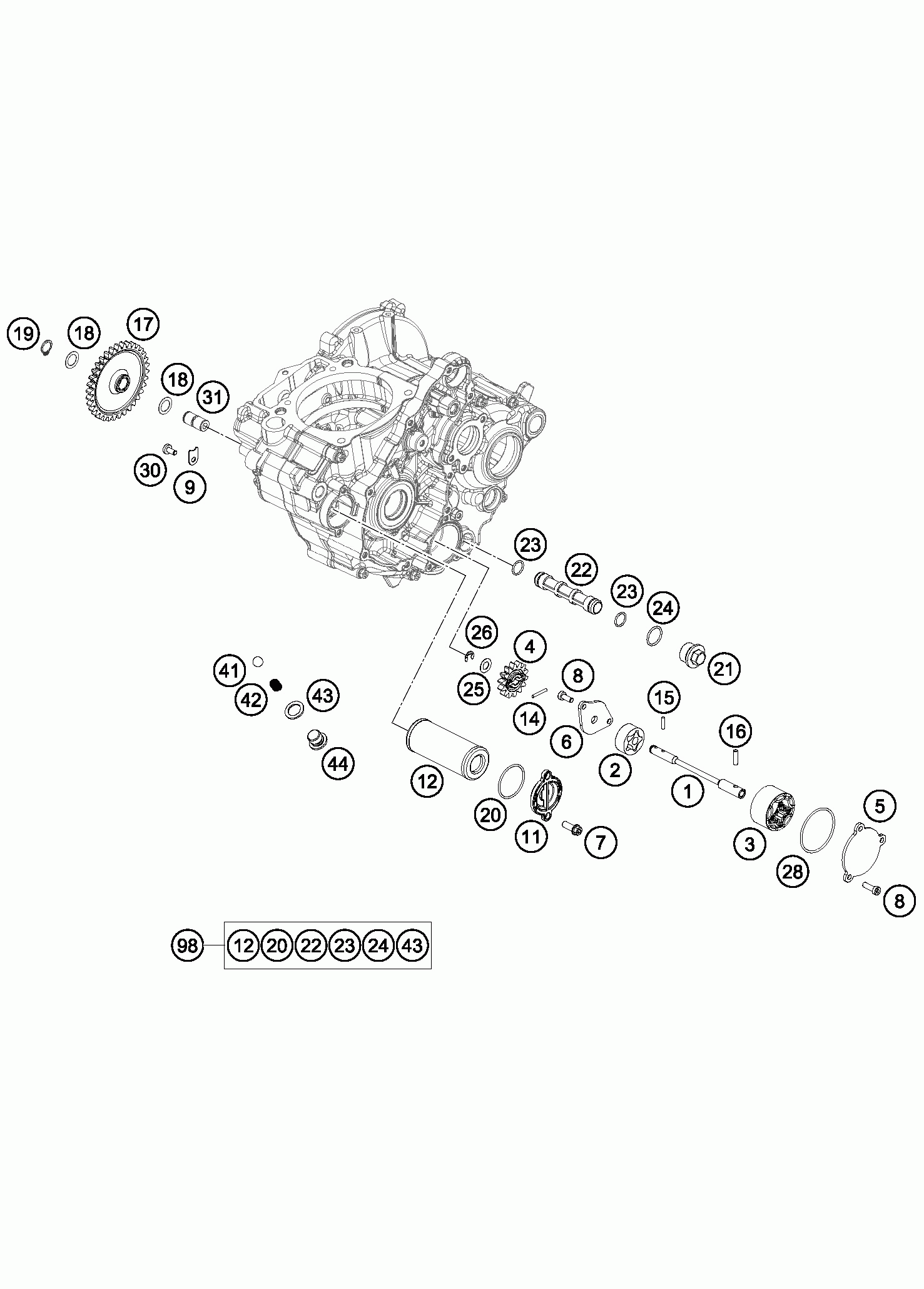

Масляная система

KTM 250 SXF FACTORY EDITION ENGINE
KTM
#oem кодцена
1
79238002000
Масляный Насос Вал
2
59038011112
Oilpump Rotor-set 12mm Cpl.
3
61238111000
Rotor-set Cpl. 22mm
4
77038001100
Oil Pump Gear 14t 08
5
79238004000
Oil Pump Cover Left
6
79238003000
Oil Pump Cover Right
7
0025060166
Винт м6х16
8
0984050143S
Cyl. Screw Din6912 M5x14 8.8
9
77238061050
Axial-circlip
11
77338041200
Oil Filter Cover 08
12
77338005100
Масляный Фильтр
14
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
15
0402251180
Needle Roller Din5402 2, 5x11, 8
16
0402041580
Needle Roller Nrb 4x15, 8 G2
17
79238006000
Oilpump Idler Gear
18
0988121805
Shim Washer Din0988-12x18x0, 50
19
0471120010
Circlip Din0471-12x1
20
07703305178
O-ring 33, 05x1, 78
21
59038017100
Plug M20x1, 5 Ws=13
22
59038016100
Oil Screen
23
07701250151
O-ring 12, 5x1, 5 Viton V75
24
0770020170
O-ring 17, 17x1, 78 Glo
25
58038007755
Stop Disk 8, 1 X 15 X 0, 5
26
0799060000
Tab Washer Din6799-rs 6, 0
28
0770440020
O-ring 44, 00x2, 00 Viton
30
0018050103
Int. Torx Oval Head M 5x10 8.8
31
77038013100
Bushing Pin
41
0401090003
Ball Din5401-9
42
58038023300
Pressure Spring L=25mm D=1mm
43
58038022000
Кольцо 12x18x1, 5
44
78036024000
Plug Screw Sas M12x1, 5
98
00050000083
Oilfilter-gasket Set 350 Sx-f
