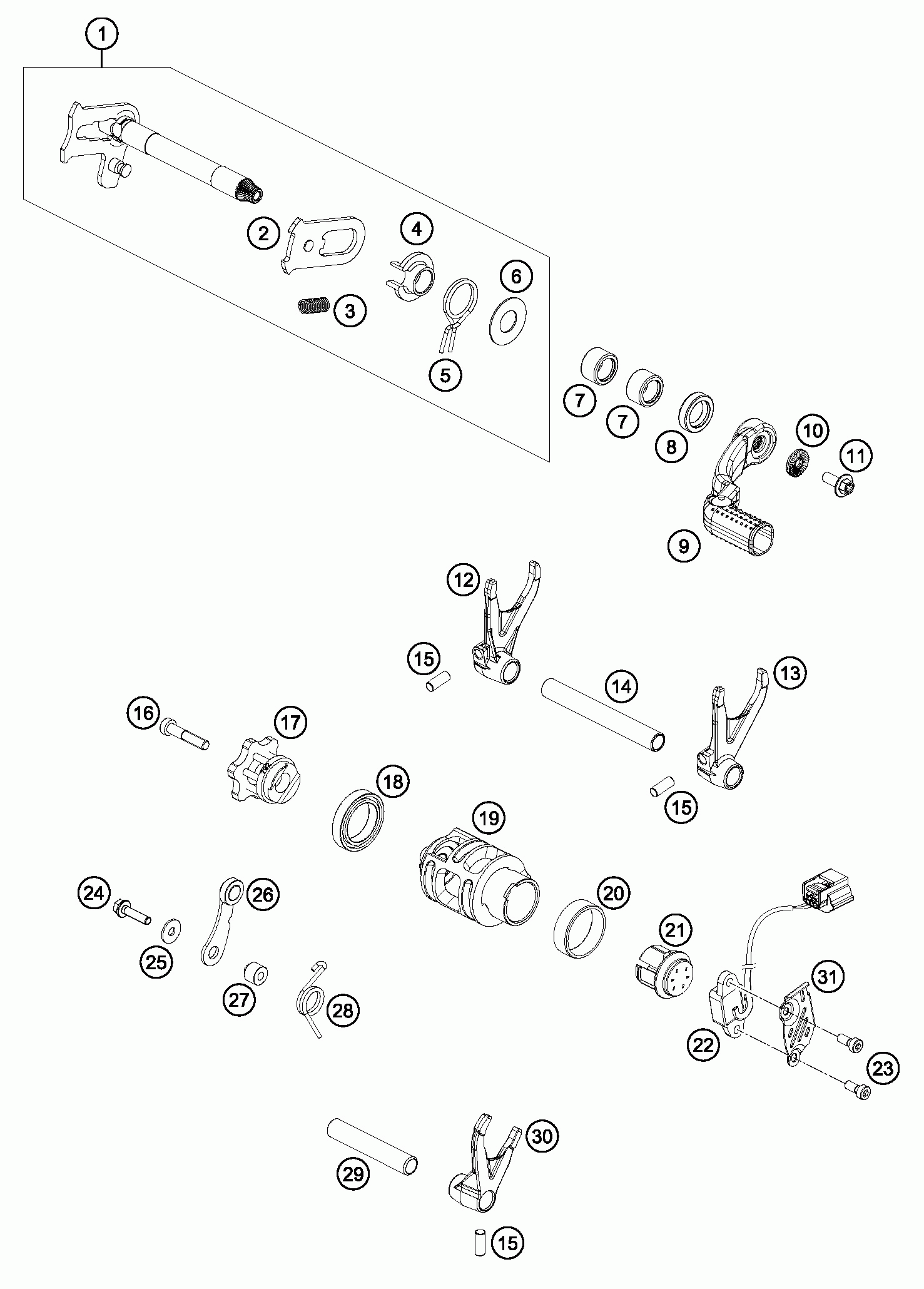

Механизм переключения

KTM 250 SXF FACTORY EDITION ENGINE
KTM
#oem кодцена
1
79234005033
Shift Shaft Cpl.
2
79234008044
Sliding Plate Cpl.
3
56534013100
Tensioning Spring 0, 8mm
4
54634020000
Spring Guide
5
54834014000
Return Spring 03
6
54634050000
Stop Disk 14x30x1
7
54632095000
Needle Bear.hk 1412 14x20x12
8
0760142460
Shaft Seal Ring 14x24x6 B
9
79234031000
Shifting Lever Cpl.
10
50233041500
Nordlock Washer M6
11
0024060156S
Hh Collar Screw M6x15 Torx30
12
79034003000
Shifting Fork 1.-3. Gear
13
79034002000
Shifting Fork 2. Gear
14
77034019000
Shifting Main L=93mm 05
15
0402061480
Needle Roller Din5402 6x14, 8
16
0984060302
Ah Screw Din6912 M 6x30
17
79234015000
Shift Drum Locating Cpl.
18
0625618050
Ball Bearing 61805 C3
19
79034012000
Gear Shift Drum 5g
20
79234012010
Friction Bearing Controller
21
79234012020
Magnet Holder Cpl.
22
79211023000
Gear Sensor
23
0984050143S
Cyl. Screw Din6912 M5x14 8.8
24
0025050206
Hh Collar Screw M5x20 Tx30
25
0021050003
Washer Din9021-a 5, 3
26
79234024044
Locking Lever Cpl.
27
54634052300
Sleeve For Locking Lever
28
54834023000
Locking Lever Spring 03
29
54834019000
Shift. Rail Main Shaft 250/300
30
79034001000
Shifting Fork 4.-5. Gear
31
79211024000
Guard Plate Motion Sensor
