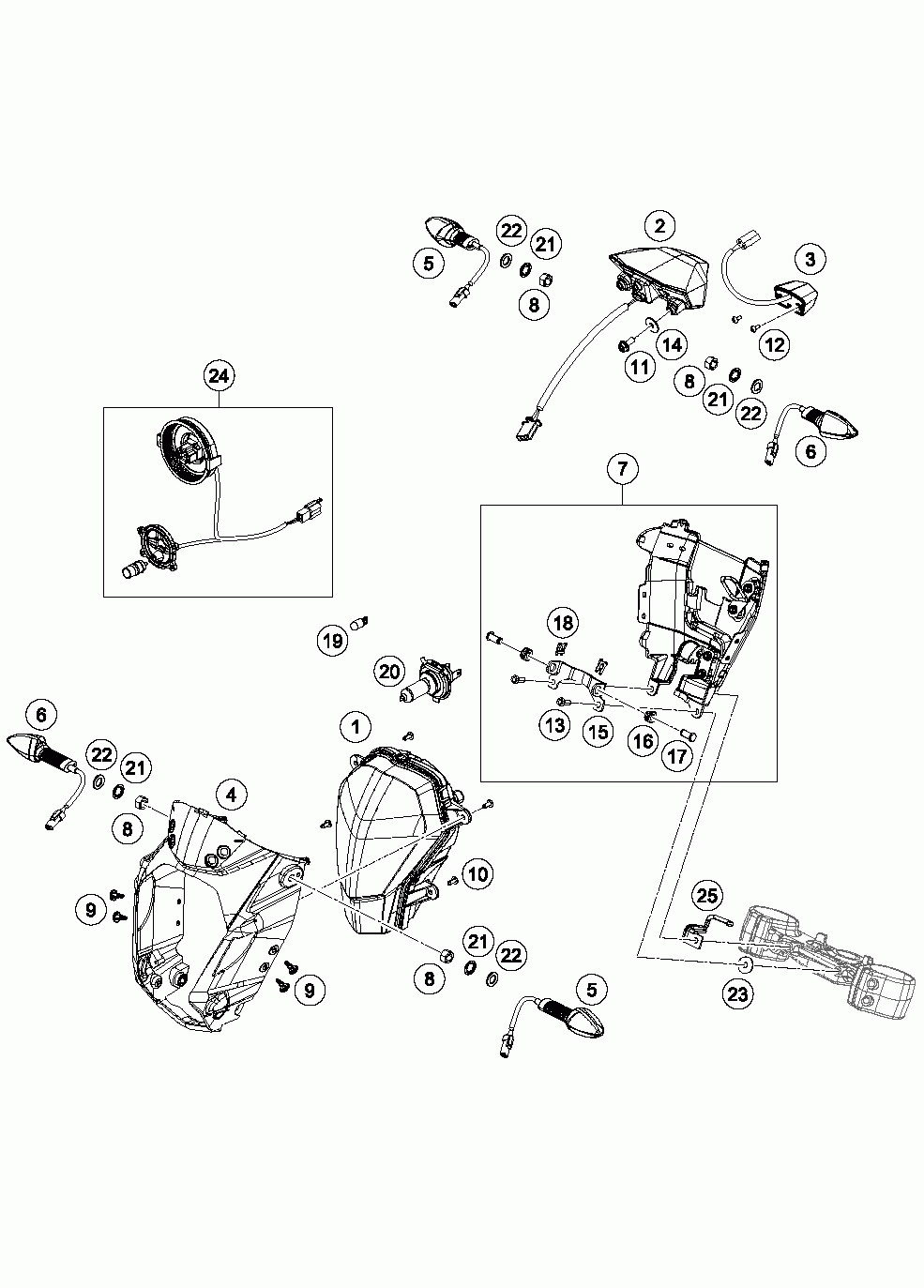

Фара

KTM 390 DUKE WHITE CHASSIS
KTM
#oem кодцена
1
90114001100
Передняя фара
2
90214540000
Rear Light Led
3
90114047000
License Plate Illumination
4
90114062000
Mask Bracket
5
90214525000
Flasher Cpl. Rear R/s
5
90214526001
Flasher Cpl. Front L/s
6
90214526000
Flasher Cpl. Rear L/s
6
90214525001
Flasher Cpl. Front R/s
7
90114064044
Head Light Cover Rear Cpl.
8
90114030000
Hex Nut M10x1, 25
9
76503075100
Скобы крепления пластика
10
0081050121
Винт 50х12
11
J025050126
Hh-collar Screw M5x12
12
J081040121
Cross Pan Screw 4x12 Ph
13
J025060163
Hh Collar Screw M6x16 Sw10
14
90114064013
Plain Washer
15
90114064010
Hinge Joint Headl.-cover
16
90114064011
Grommet Mask Carr. Pivot Bkt
17
J070080150
Safety Bolt 8x1, 5
18
90114064012
Sec. Clip Mask Carr. Pivot Bkt
19
49011435100
Светодиод 12v 5w (w2,1x9,5d)
20
57111038000
Лампа H4 60/55w
21
J797100003
Toothed Washer M10
22
J125100003
Washer Plain 10, 5
23
J126061252
Washer 6, 5x2 Mm
24
90111079000
Harness F. Headlamp
25
90103001036
Hook Bracket Abs Hose
