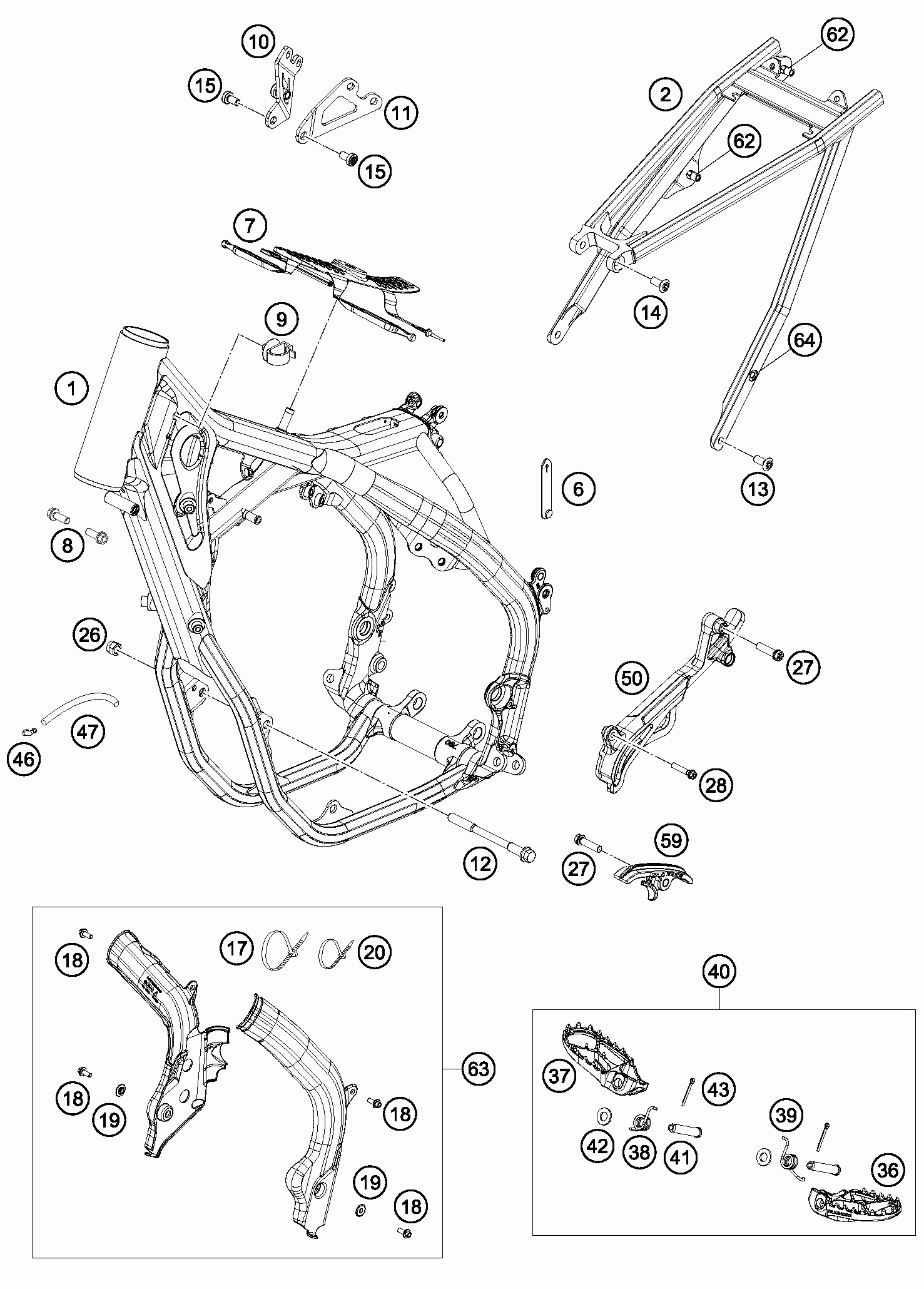

Рама

KTM 450 SXF FACTORY EDITION CHASSIS

Рама

#

oem код

название

цена

1*

Frame "794p3" Orange

Frame "794p3" Orange

2*

Subframe 2016

Subframe 2016

6

Rubber Cable Tie 75mm 03

Rubber Cable Tie 75mm 03

7*

Tank Rest Rubber

Tank Rest Rubber

8

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

9*

Хомут

Хомут

10*

Engine Brace R/s Cpl.

Engine Brace R/s Cpl.

11*

Engine Brace L/s

Engine Brace L/s

12

Enginebrac.screw M10x123 Ws=13

Enginebrac.screw M10x123 Ws=13

13*

Special Screw M8x18 Torx45 Ss

Special Screw M8x18 Torx45 Ss

14

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

15*

Ah-collar Screw M8x15 Torx45

Ah-collar Screw M8x15 Torx45

17

Cable Tie 300/4, 8mm Black

Cable Tie 300/4, 8mm Black

18*

Hh Collar Screw M 5x12 Ws=6

Hh Collar Screw M 5x12 Ws=6

19

Bush F. Frame Protection 03

Bush F. Frame Protection 03

20

Cable Tie 140/2, 5mm Black

Cable Tie 140/2, 5mm Black

26

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

27

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

28*

Воротник Винт M6x30 Tx30

Воротник Винт M6x30 Tx30

36*

Footrest L/s 2016

Footrest L/s 2016

37*

Footrest R/s 2016

Footrest R/s 2016

38*

Footrest Spring R/s 2016

Footrest Spring R/s 2016

39*

Footrest Spring L/s 2016

Footrest Spring L/s 2016

40*

Foot Pegs Set Cpl. 2016

Foot Pegs Set Cpl. 2016

41

Pin For Foot Ped 51.5x9.8 Mm

Pin For Foot Ped 51.5x9.8 Mm

42

Washer Din0125-a10, 5

Washer Din0125-a10, 5

43

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

46

Angle Piece '97

Angle Piece '97

47

Pvc-hose 7x10 Per Meter

Pvc-hose 7x10 Per Meter

50*

Sprocket Cover 450

Sprocket Cover 450

59*

Chain Slider Lower Part Cpl.

Chain Slider Lower Part Cpl.

62

Blind Rivet Nut Em6-60lf/hx

Blind Rivet Nut Em6-60lf/hx

63*

Frame Protection Set Black

Frame Protection Set Black

64*

Blind Rivet Nut M6 Knurled

Blind Rivet Nut M6 Knurled
