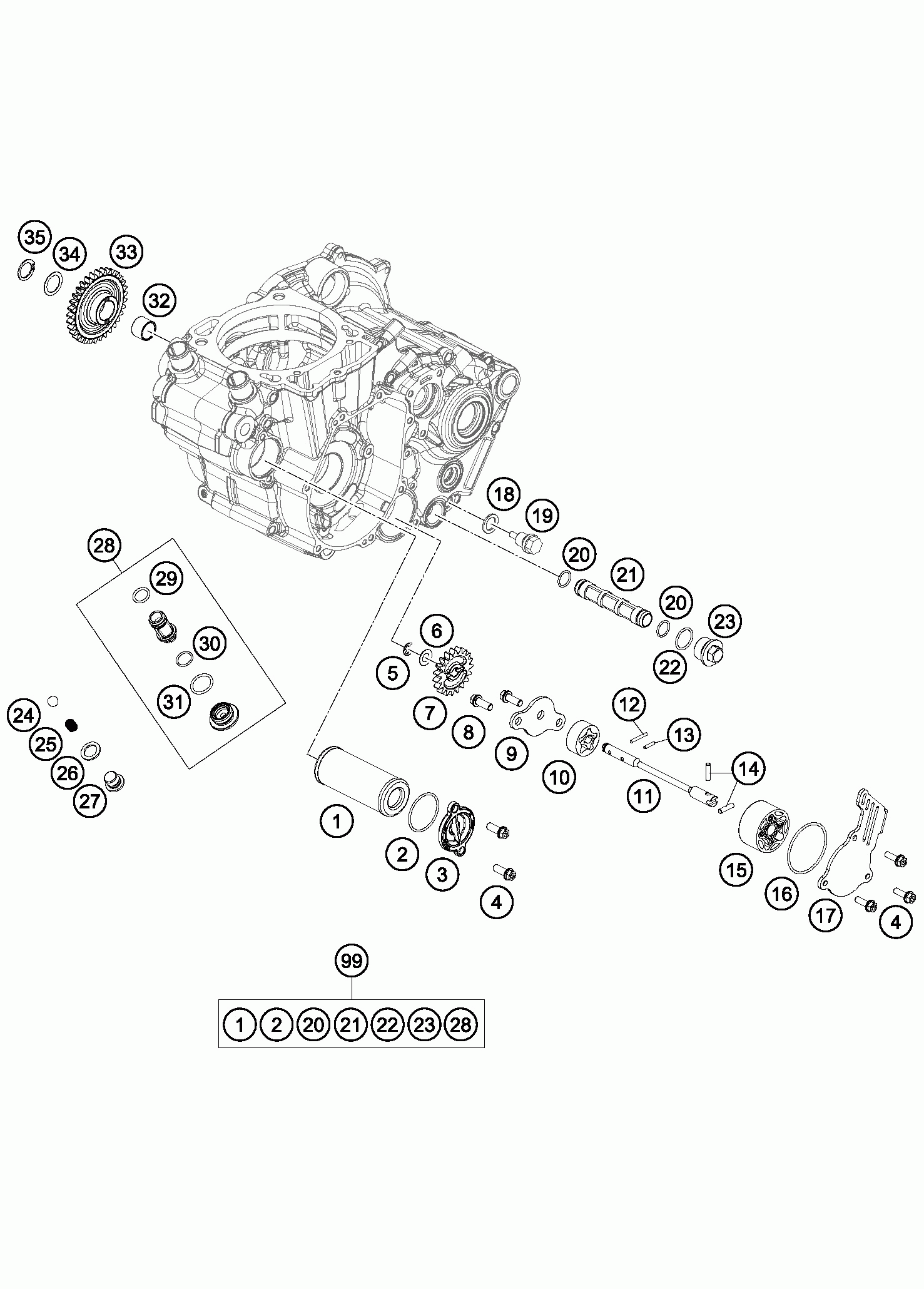

Масляная система

KTM 450 SXF FACTORY EDITION ENGINE
KTM
#oem кодцена
1*
77338005100
Масляный Фильтр
2*
07703305178
O-ring 33, 05x1, 78
3*
77338041200
Oil Filter Cover 08
4
0025050166
Hh Collar Screw M5x16 Tx30
5
0799060000
Tab Washer Din6799-rs 6, 0
6
58038007755
Stop Disk 8, 1 X 15 X 0, 5
7*
79438001019
Oil Pump Sprocket 19t
8
0025060166S
Hh Collar Screw M6x16 Isa 30
9*
79438003000
Крышка насоса
10*
59038011112
Oilpump Rotor-set 12mm Cpl.
11*
79438002000
Масляный Насос Вал
12
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
13
0402251180
Needle Roller Din5402 2, 5x11, 8
14
0402041580
Needle Roller Nrb 4x15, 8 G2
15
61238011100
Rotor Set 22mm
16
0770440020
O-ring 44, 00x2, 00 Viton
17*
79438004100
Крышка насоса
18
58038022000
Кольцо 12x18x1, 5
19
58030021000
Пробка сливная с магнитом M12x1,5
20
07701250151
O-ring 12, 5x1, 5 Viton V75
21
59038016100
Oil Screen
22
0770020170
O-ring 17, 17x1, 78 Glo
23*
59038017100
Plug M20x1, 5 Ws=13
24
0401090003
Ball Din5401-9
25*
79438026000
Pressure Spring
26
58038022000
Кольцо 12x18x1, 5
27
78036024000
Plug Screw Sas M12x1, 5
28
78138015001
Oil Screen Cpl.
29
0770012021
O-ring 12x2 Viton Green
30
0770125015
O-ring 12, 5x1, 5 Nbr
31
0770170200
O-ring 17, 00x2, 00
32*
79438001010
Needle Bearing Inner Ring
33*
79438001033
Idler Wheel 33t
34*
0988162205
Thrust Wash. Din0988-16x22x0, 5
35*
0471150010
Circlip Din0471-15x1
99
79438015010
Oilfilter Servicekit Sx-f
