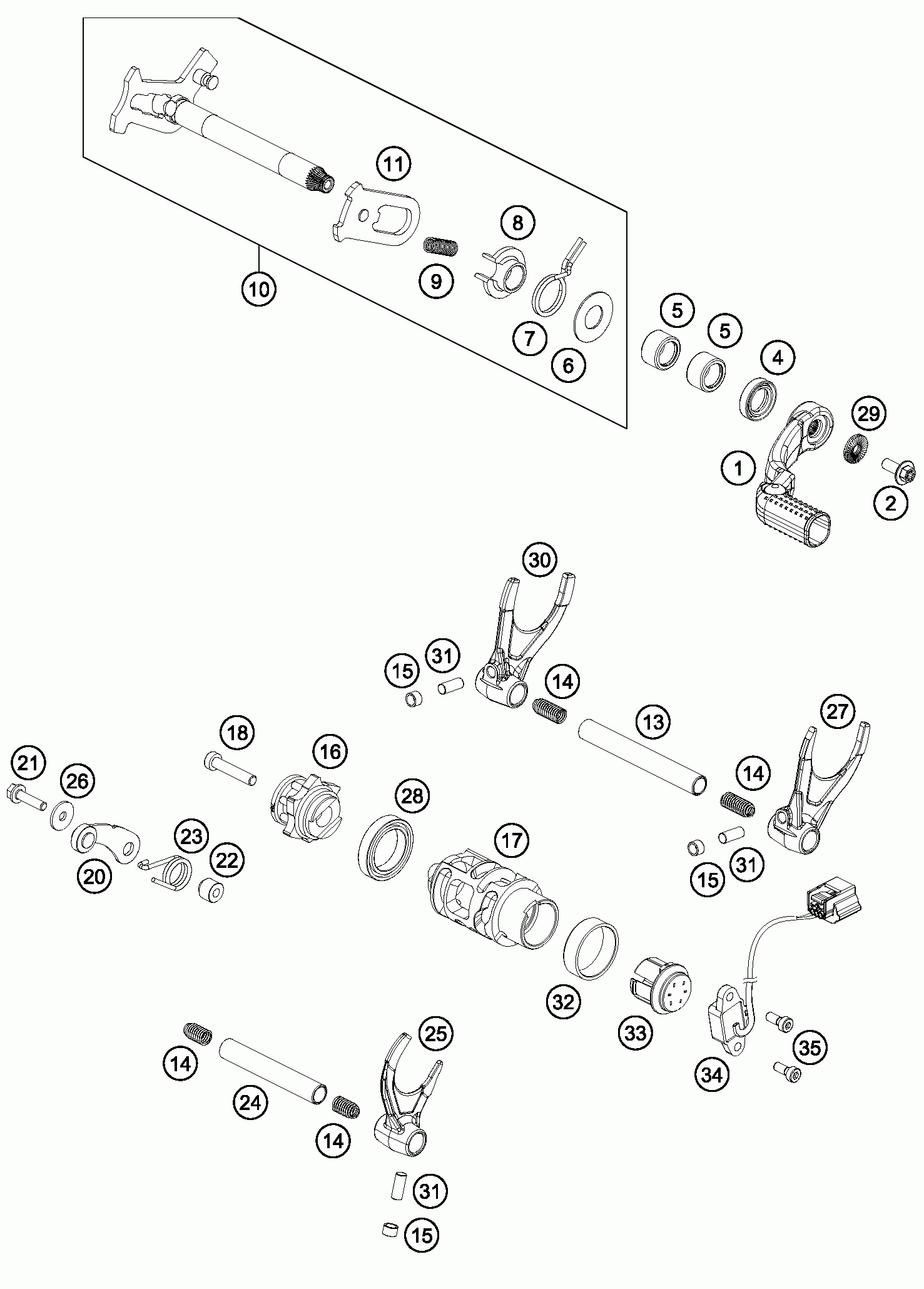

Механизм переключения

KTM 450 SXF FACTORY EDITION ENGINE
KTM
#oem кодцена
1*
79434031000
Shifting Lever Cpl.
2*
0024060156S
Hh Collar Screw M6x15 Torx30
4
0760142460
Shaft Seal Ring 14x24x6 B
5
54632095000
Needle Bear.hk 1412 14x20x12
6
54634050000
Stop Disk 14x30x1
7
54634014100
Return Spring 2, 2mm '95
8
54634020000
Spring Guide
9
56534013100
Tensioning Spring 0, 8mm
10*
79434005033
Shift Shaft Cpl.readytoinstall
11*
61234008044
Sliding Plate
14
58038023200
Pressure Spring 0, 9mm
15
50334018100
Shifting Roller 6x8x5, 2
16*
79434015000
Selector Interlock Mechan. Cpl
17*
79434112100
Shifting Controller 5 Gear
18
0912060303
Ah Screw Din0912-m 6x30
20
78134024044
Locking Lever Cpl.
21
0025050206
Hh Collar Screw M5x20 Tx30
22
54634052300
Sleeve For Locking Lever
23
60034023000
Arresting Lever Spring 03
25*
79434001100
Shifting Fork 5th-6th Gear
26
0021050003
Washer Din9021-a 5, 3
27*
79434002100
Shifting Fork 2nd-4th Gear
28
0625618050
Ball Bearing 61805 C3
29
50233041500
Nordlock Washer M6
30*
79434003100
Shifting Fork 1st-3rd Gear
31*
0402061480
Needle Roller Din5402 6x14, 8
32*
79234012010
Friction Bearing Controller
33
79234012020
Magnet Holder Cpl.
34*
79211023000
Gear Sensor
35*
0984050123S
Cylind. Scr. Din6912 M5x12 8.8
