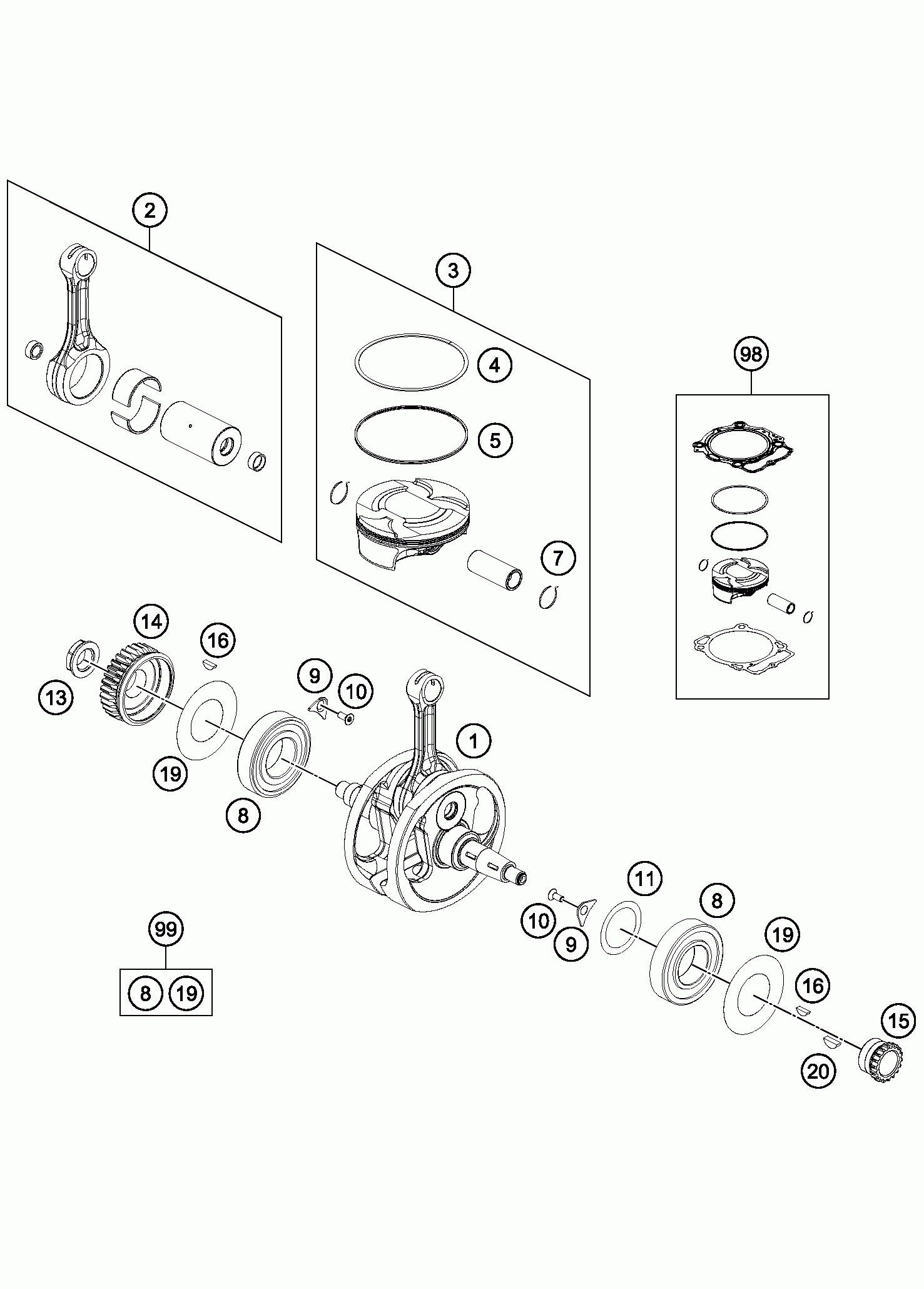

Коленвал и поршень

KTM 450 SXF FACTORY EDITION ENGINE
KTM
#oem кодцена
1*
79430018000
Crankshaft Cpl.
3*
78930007200 I
Piston I D=95mm
3*
78930007200 II
Piston Ii D=95mm
4
78930030000
Compression Ring
5
78930032000
Oil Scraper Ring
7
78930074000
СТОПОРНОЕ КОЛЬЦО
8*
79430082000
Cylinder Roller Bearing Nj207
9*
75030085000
Retaining Plate F. Cs Bearing
10*
0019050121S
Int. Torx Flat Head M5x12 T25
11*
56530081000
Shim Washer 36x48x0, 10
11*
56530081100
Shim Washer 36x48x0, 15
11*
56530081200
Shim Washer 36x48x0, 20 Steel
11*
56530081300
Shim Washer 36x48x0, 30
13
78030029200
Nut Primary Wheel M20x1, 5
14*
79432023031
Primary Gear 31t
15
78036014200
Timing Gear 18t.
16
0888030037
Woodruff Key Din6888-3x3, 7
19*
79430084000
Bearing Seal
20
0888030050
Шпонка 3x5x13
98
78930007210 I
Piston Kit Size I 450 Sx-f 15
98
78930007210 II
Piston Kit Size Ii 450 Sx-f 15
