Трансмиссия 2-контрпривод

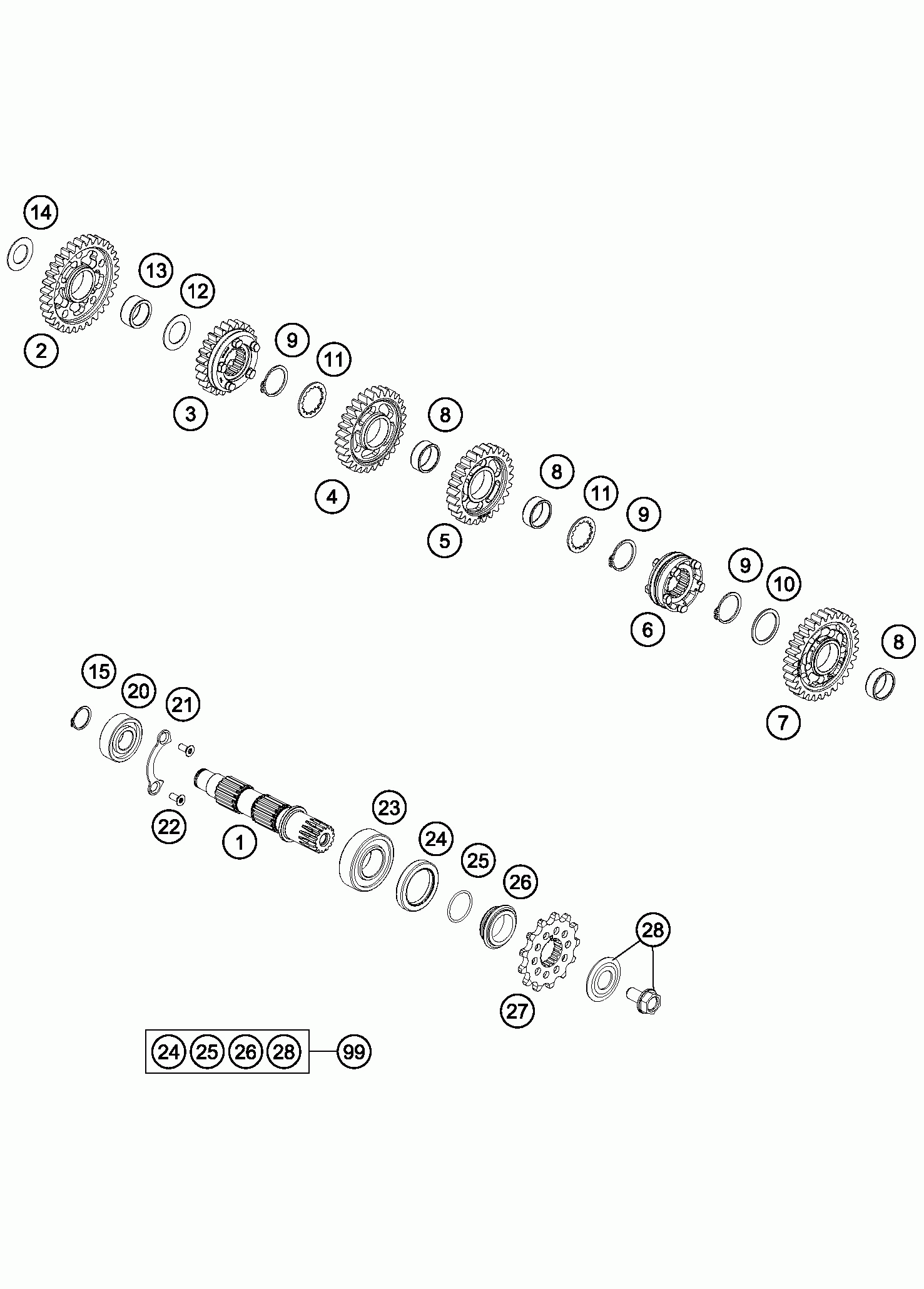

KTM 450 SXF FACTORY EDITION ENGINE
KTM
#oem кодцена
1*
79433010000
Driven Shaft
2*
79433011000
Idler Gear 1st G.
3*
79433015100
Sliding Gear 5th G.
4*
79433013000
Idler Gear 3rd G.
5*
79433014000
Idler Gear 4th G.
6*
79433017000
Shfit Collar
7*
79433012000
Idler Gear 2nd G.
8
0405222611
Needle Bear.k 22x26x10 Divided
9
0471250120
Circlip Din0471-25x1, 2
10
78033031000
Stop Disk 26 X 32 X 1, 5
11
78033033000
Stop Disk 23 X 32 X 1, 5
12
59033080000
Shim 20x32x1
13
0405202612
Needle Bearing K 20x26x12
14
56033030000
Stop Disc 17, 2x30x1
15
0471170015
Circlip Din 0471-17x1, 5
20
0625062035
Ball Bearing 6203 Jr2 C3
21
78033132000
Tab Washer Bearing Count.shaft
22*
0019050121S
Int. Torx Flat Head M5x12 T25
23
49030023000
Cyl.roll Bearing Nj205
24
0760324571
Shaft Seal Ring 32x45x7 Bslnbr
25
0770020220
O-ring 25, 12x1, 78 Nbr70
26
78133014000
Spacer Sleeve Counter
27*
79233029013
Sprocket 13t
27*
79233029014
Sprocket 14t
28
59033034044
Screw 10.9+spring Washer
99
00050000941
Counter Shaft Rep.kit 4 Stroke
