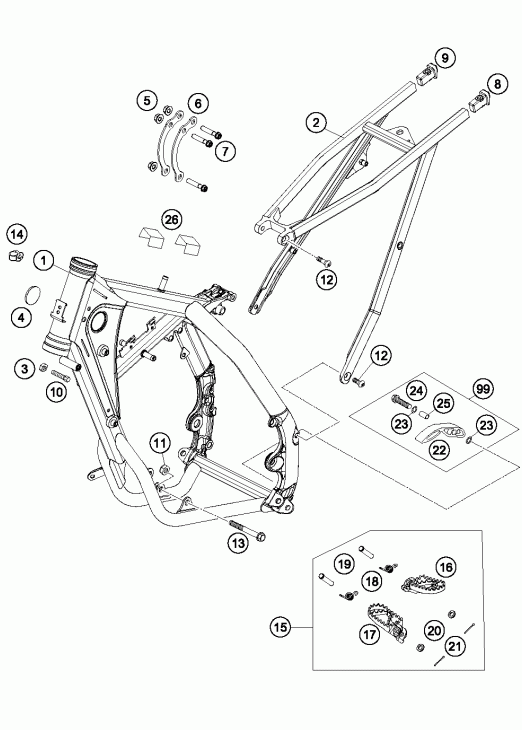

Frame, sub frame

KTM 85 SX CHASSIS
KTM
#oem кодцена
1
47103001000BE
Frame "471m3" Anthr.-met.
2
47103002000
Sub Frame
3
0934080003
Hexagon Nut Din0934-m 8
4
54606004000
Plug 37mm
5
54310086200
Self Locking Nut M8 10.9
6
47103013100
Reinforcing
7
0025080356
Hh Collar Screw M8x35 Tx40
8
78103002010
Sub Frame Application Left
9
78103002020
Sub Frame Application Right
10
59001037000
Special Screw M8x26 Ws=10
11
54310086100
Self Locking Nut M10 Cu Ws=14
12
0019080206S
Flat Head Screw M. Isa45 M8x20
13
47003013000
Engine Bracket Screw 85 Sx
14
58111076000
Хомут
15
47103040033
Footrest Cpl. 14
16
47103040000
Footrest L/s
17
47103041000
Footrest R/s
18
54603041000
Footrest Spring L/s & R/s
19
54803044000
Pin For Foot Ped 51.5x9.8 Mm
20
0125100003
Washer Din0125-a10, 5
21
0094032253
Pin Din0094-3, 2x25 Steel
22
51103053000
Chain Sliding Piece Below '97
23
36003014000
Стопорная шайба 8 мм
24
0025080306
Hh Collar Screw M8x30 Tx40
25
51103053051
Bushing 8, 2x10x20
26
50307012000
Adh. Foil Transp. 80x80 Mm 04
