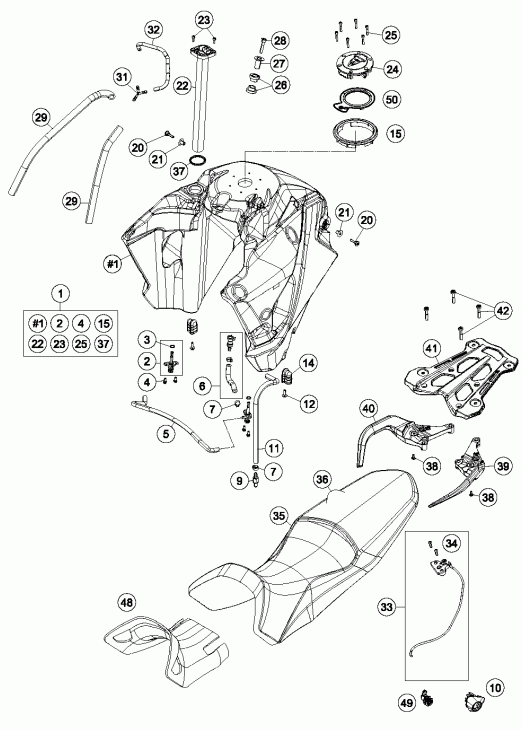

Бак,сидение

KTM 1190 ADV-R CHASSIS

Бак,сидение

#

oem код

название

цена

1

Fuel Tank Cpl.

Fuel Tank Cpl.

2

Fuel Cock Cpl.

Fuel Cock Cpl.

3

O-ring 1, 78x10, 82x14, 38 2-013

O-ring 1, 78x10, 82x14, 38 2-013

4

Винт м6х12

Винт м6х12

5*

Expansion Hose Fuel Tank

Expansion Hose Fuel Tank

6

Fuel Hose Tank/connector

Fuel Hose Tank/connector

7

Хомут зажим

Хомут зажим

8

Fuel Hose Tank/connector

Fuel Hose Tank/connector

9

Сапун

Сапун

10

Seat Lock Cover

Seat Lock Cover

11

Fuel Pipe 1

Fuel Pipe 1

12

Винт М6х20

Винт М6х20

14

Tank Rubber

Tank Rubber

15

Tank Cap Ring

Tank Cap Ring

20

Special Screw M6x32.5 Isa 40

Special Screw M6x32.5 Isa 40

21

Collar Bush. 6, 2x10x21x14mm 08

Collar Bush. 6, 2x10x21x14mm 08

22

Gas Level Sensor

Gas Level Sensor

23

Ah Screw Din0912-m 5x16

Ah Screw Din0912-m 5x16

24

% Tank Cap

% Tank Cap

25

Ah Screw Din0912-m 5x25

Ah Screw Din0912-m 5x25

26

Tank Rubber Bushing Front 05

Tank Rubber Bushing Front 05

27

Bearing Bushing Outside 05

Bearing Bushing Outside 05

28

Ah Screw Din912 M8x40

Ah Screw Din912 M8x40

29

Hose 5,4x9,4 Nbr, Meter

Hose 5,4x9,4 Nbr, Meter

31

Y-connecting Piece Ys 6-6-6 06

Y-connecting Piece Ys 6-6-6 06

32

Hose Tank Breat.

Hose Tank Breat.

33

Seat Lock Cpl.

Seat Lock Cpl.

34

Flat Head Screw Iso7380 M6x20

Flat Head Screw Iso7380 M6x20

35

Seat R

Seat R

36

Seat Covering

Seat Covering

37

Gasket Fuel Level Sensor

Gasket Fuel Level Sensor

38

Screw F. Expansion Tank

Screw F. Expansion Tank

39

Hand Grip L/s

Hand Grip L/s

40

Hand Grip R/s

Hand Grip R/s

41

Baggage Carrier Bridge

Baggage Carrier Bridge

42

Ah-collar Screw M8x40 Isa45

Ah-collar Screw M8x40 Isa45

48

Heat Protector

Heat Protector

49

Lock Cylinder Seat Lock

Lock Cylinder Seat Lock

50

Gasket Tank Cap

Gasket Tank Cap
