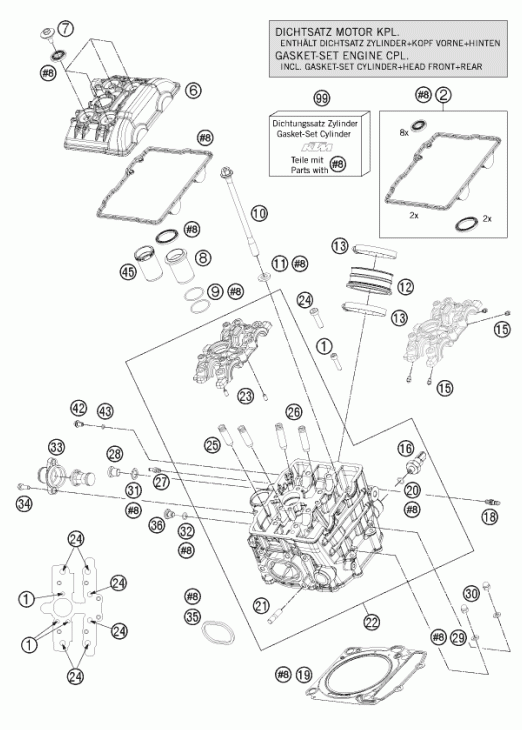

Головка цилиндра передняя

KTM 1190 RC8-R ENGINE
KTM
#oem кодцена
1
0912060255
Ah Screw Din0912-m 6x25 10.9
2
61236099100
Valve Cover Gasket Set
6
6123605210033
Valve Cover Front 09
7
60036052020
Collar Screw M 6 Ws=10 03
8
61236075000
Insert Spark-plug Shaft 08
9
0770298178
O-ring 29, 87x1, 78 Viton
10
61236079000
Cylinder Head Screw 08
11
61236079050
Washer 11, 1x20x3 08
12
61236044000
Rubbersleeve Intake Flange 08
13
61236048000
Hose Clamp Gemi 66 / 1
15
60030063050
Oil Jet 50 05
16
61238091000
Oil Pressure Switch "bitron"
18
60036023100
Vacuum Conection M6/0, 5mm
19
69130036000
Cylinder Head Gasket Mls
20
0770080015
O-ring 8, 00x1, 5 Nbr 70
21
0835080165
Stud M 8x16 10.9
22
6913602010024
Cylinder Head Front
23
0402050980
Needle Roller Din5402 5x9, 8
24
0984080305
Ah Screw Din7984-m 8x30 10.9
25
61236026001
Valve Guide Exhaust 08
26
61236025001
Valve Giude Intake 6mm
27
61036023100
Vacuum Conection 2006
28
0908120153
Plug Din0908-m12x1, 5
29
0125060003
Washer Din0125-a 6, 4
30
61230045000
Cap Nut M6 Stainless Steel
31
58038022000
Кольцо 12x18x1, 5
32
07700900151
O-ring 9x1, 5 V80 Sh
33
61235019100
Water Connection Cpl.
34
0025060206
Винт М6х20
35
69005005100
Exhaust Pipe Flange Gasket
36
77336056095
Резьбовая пробка
42
59036006090
Vent Screw M6x10 Cpl.
43
0770050012
O-ring 5, 0x1, 2 Nbr 70
45
60236075000
Insert Spark-plug Shaft
99
69130097000
Gasket Kit Cylinder+head F+r
