Бугель

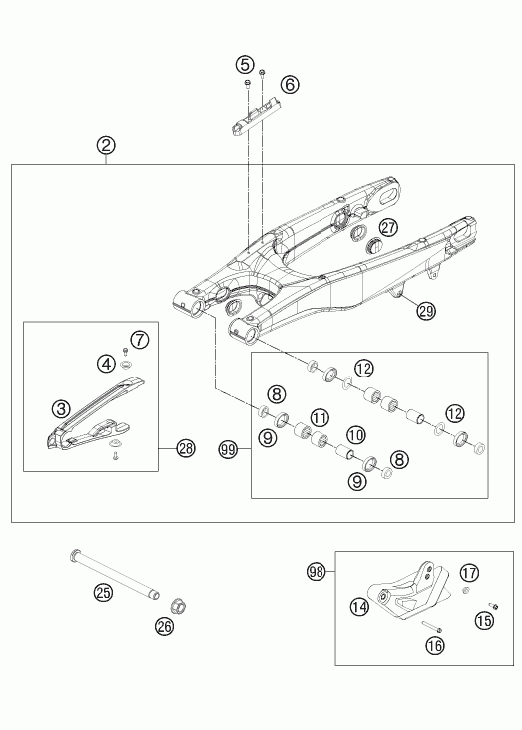

KTM 125 SX CHASSIS
KTM
#oem кодцена
2*
77704030144
Swingarm Cpl. 2014
3
77204066100
Chain Sliding Protection
4
77304066050
Bushing F. Chain Sliding Pr.07
5
0009050106
Ejot Spiral Screw Sf M5x10-k
6
76504042000
Brake Line Guide 08
7
59009062013
Special Screw M6x13 Ws=8 10.9
8
54804034000
Bucket F. Shaft Seal Ring 03
9
0760253270
Shaft Seal Ring 25x32x7
10
54804032000
Bushing Sleeve F. Swing Arm 03
11
58033097000
Needle Bearing Hk 2216
12
54603036000
Stop Disk 22, 2x31, 7x1
14*
77704070000
Chain Guide Rear Cpl. Sx 2013
15
59009062019
Special Screw M6x19 Ws=8 10.9
16
0025060456
Hh Collar Screw M6x45 Tx30
17
77304070130
Bush. F. Chain Fail. Prot. 07
25
77304037000
Swingarm Bolt M16x1, 5 07
26
54804038000
Self Lock.nut M16x1, 5 Ws=19 03
27
77204041000
Closing Cover
28
77204066010
Chain Guard Cpl. 11-15
29
54603055051
Press In Nut M6 Steel Zinc
98*
77704070210
Chain Guide Kit Rear Sx-f 14
99
54804230210
Swingarm Repair Kit 05-15
