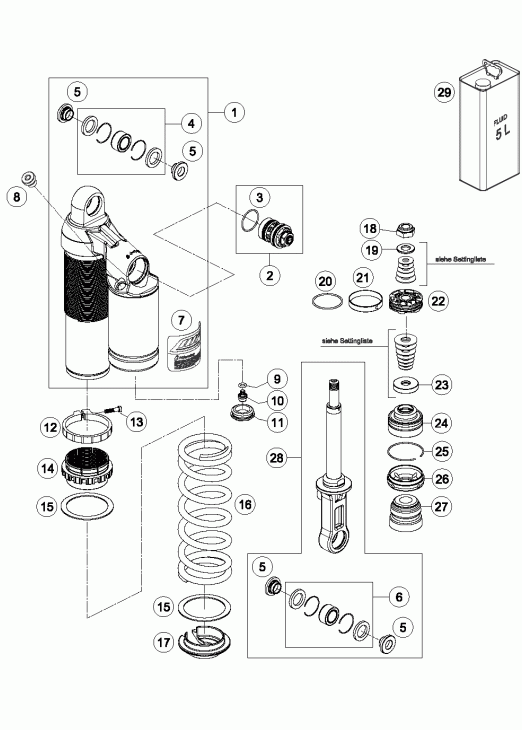

Амортизатор

KTM 1290 SD-R ORG CHASSIS
KTM
#oem кодцена
1
46181028S1
Monoshock Upper Part
2
50180213S10
Dcc-compr.damp.control Cpl. 07
3
50180217
O-ring 27x1, 5 Viton
4
R12012
Rep. Kit Bear./seal Up. 07
5
46181138
Bushing Kgw 1525 14x32
6
R15009
Bearing Kit Kgw 1525 990 Duke
7
52000087
Sticker Wp Monoshock
8
50180095
Bleed Plug R 1/8
9
46810893
O-ring Nbr 5, 28x1, 78
10
36120151
Screw Plug M5x6
11
46811208
Rubber Cap "do Not Open"
12
46181014
Tensioning Ring D64 H10
13
0912050203
Ah Screw Din0912-m 5x20
14
46181013
Adjusting Nut D46 Plastic
15
50180410
Interm.ring D=58
16
91010078S
Spring (59) 170-185 D 14 05
17
46180396
Spring Retainer H=15 D=28
18
46180597
Piston Rod Nut 06
19
46811258
Ring 12x24x2, 5
20
46810035
O-ring Viton 37, 82x1, 78
21
46810361
Кольцо поршневое
22
46810560
Piston 6+6d7
24
46180669S
Adaptor Cpl. D=46 H=28 07
25
46810010
Circlip 49x1, 5
27
46180365
Bump Rubber Wp60 H=30 D=18-26
29
50180751S1
Shock Absorber Fluid 5 Lt
