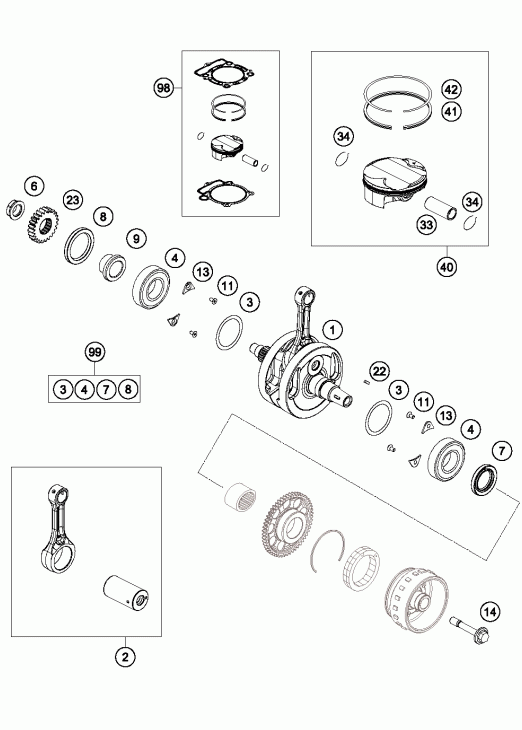

Коленвал и поршень Оригинальные запчасти для мотоциклов KTM 350 XCF ENGINE (2014)

Коленвал и поршень

KTM 350 XCF ENGINE

oem код

название

цена

77830018100

Crankshaft Cpl.

77830015144

Connecting Rod Repair Set

0988324510

Thrust Washer 988st 32x0, 1

0988324515

Thrust Washer 988st 32x0, 15

0988324530

Thrust Washer 988st 32x0, 30

77330082200

Bearing Nj 206 Ecp/hn3c4hva624

77230029000

Nut Primary Wheel

0760304772

Sh.seal Ring 30x47x7 Bsl Viton

0760405560

Shaft Seal Ring A40x55x6 Viton

77232022000

Spacer Bushing Primary Gear

0019050106S

Int. Torx Flat Head M5x10 10.9

75030085000

Retaining Plate F. Cs Bearing

77339010100

Flywheel Screw

0888030037

Woodruff Key Din6888-3x3, 7

77232023024

Primary Gear 24t.

33*

77230233200

Piston Pin 350

34*

77230274000

СТОПОРНОЕ КОЛЬЦО

40*

77230207100 I

Piston Cpl. 350 I

40*

Piston Cpl. 350 Ii

Scraper Ring 350

Compressionring 350

Piston Kit Gr.i 350 Sx-f 13-15

00050000221

Piston Kit Gr.ii 350 Sx-f13-15

00050002311

Crankshaft Rep. Kit Sx-f 13-15
