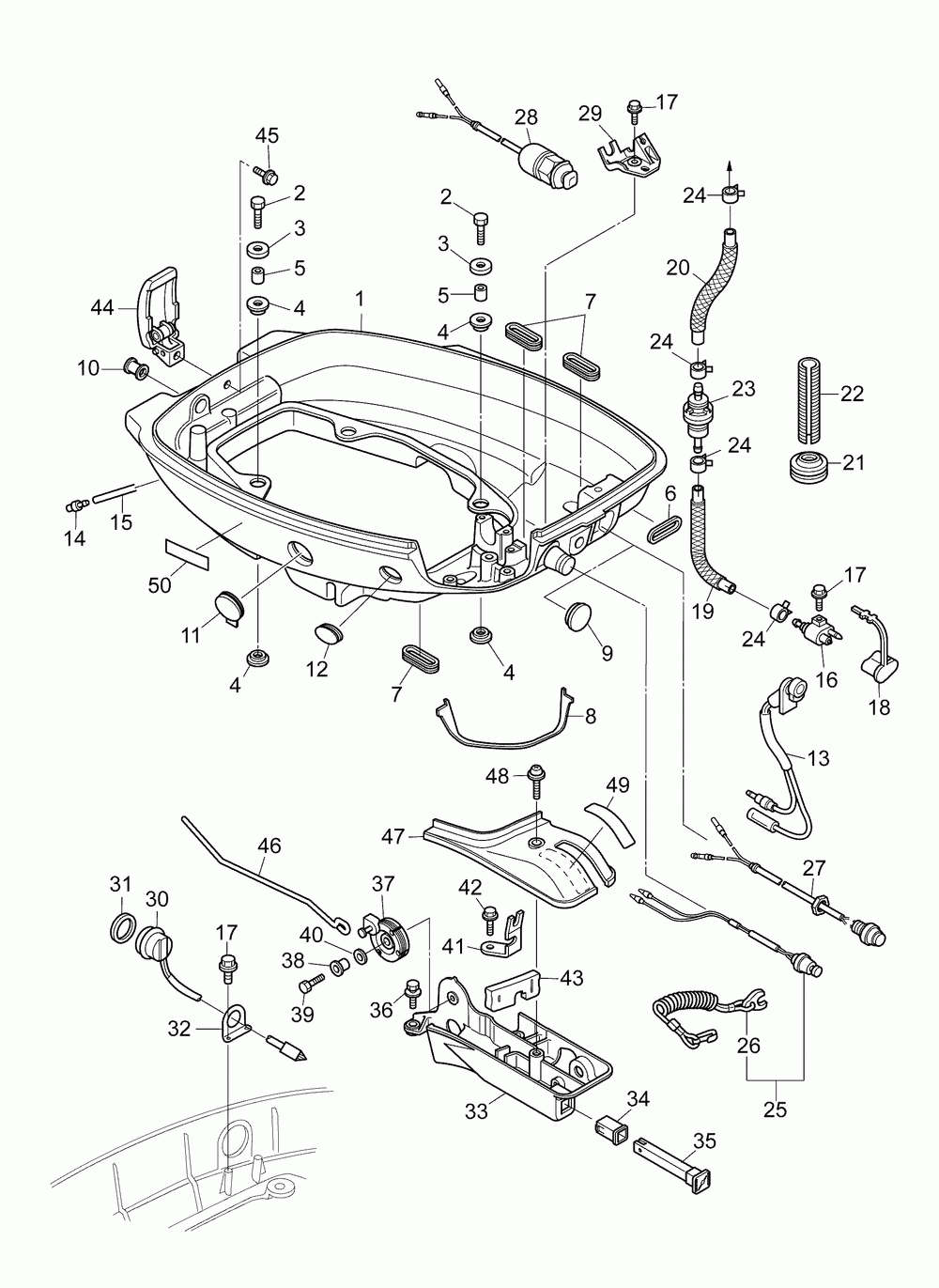

11-1_lower engine cover

Evinrude 15 PORTABLE E15TE4INS
Evinrude
#oem кодцена
1
5040593
Bottom Cowl
2
5041550
Болт
3
5040691
Шайба
4
5040082
Mount (010 Per Pack)
5
5040083
Spacer (010 Per Pack)
6
5041231
Уплотнитель резиновый
7
5041228
Уплотнитель резиновый
8
5040696
Уплотнение
9
5040064
Grommet R, Pl Models
10
5040532
Grommet (010 Per Pack)
11
5040583
Grommet (010 Per Pack)
12
5040581
Grommet (010 Per Pack)
13
5041233
Pilot Lamp Assy
14
5040564
Ниппель
15
5041730
Шланг
16
5040239
Fuel Conn-tohatsu
17
5041559
Bolt R, Te
18
5041041
Fuel Conect Prot
19
5041730
Hose Not Available In North America
19
5040565
Fuel Hs W/prot Us Epa Approved Fuel Hose
20
5041730
Hose Not Available In North America
20
5040596
Fuel Hs W/prot Us Epa Approved Fuel Hose
21
5040065
Grommet Std (010 Per Pack)
22
5040699
Fuel Hs Protector Std
23
5040140
Фильтр топливный
24
5040403
Clip (010 Per Pack)
25
5040241
Датчик тормоза
26
5040109
Stop Swch Lyrd Asy
27
5040347
Main Switch Assy Te Models
28
5040123
Neutral Switch Te Models
29
5040714
Neutral Swch Brckt
30
5040466
Ptt Switch Assy Pl, Te Models
31
5040830
Gasket Pl, Te Models
32
5040489
Ptt Swch Asy Brckt Pl, Te Models
33
5040738
Shift Lever Brckt R, Te
34
5040775
Bushing R, Te
35
5040774
Choke Rod R, Te
36
5041560
Bolt R, Te
37
5040604
Throttle Drum Assy R, Te
38
5040657
Collar R, Te
39
5041548
Bolt R, Te
40
5041147
Washer R, Te
41
5040679
Thrtl Wire Bracket R, Te
42
5041561
Bolt R, Te
43
5040690
Grommet R, Te
44
5040692
Cowl Latch Assy
45
5041557
Болт
46
5040571
Throttle Rod R, Te
47
5040695
Shft Lvr Brckt Cov R, Te
48
5041645
Screw R, Te
49
5041466
Shift Decal R, Te
50
5041039
Storage Decal
