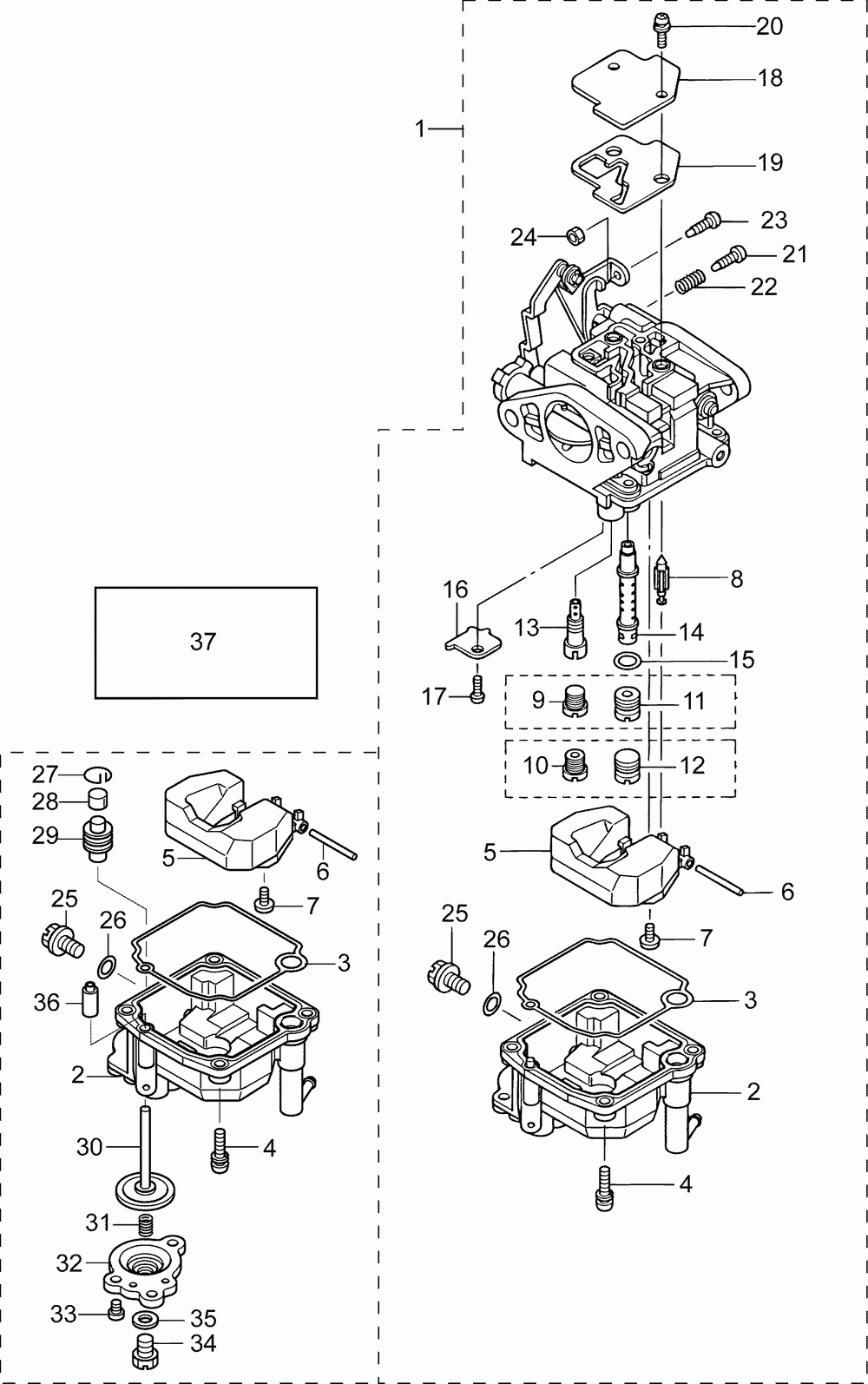

13-3_carburetor assembly

Evinrude 9.8 PORTABLE B10TPL4INS
Evinrude
#oem кодцена
1
5041432
Carburetor Assy For Use In North America
1
5040793
Carburetor Assy For Use Outside Of North America
1
5041433
Carb Assy (ep) For Use In North America
1
5040794
Carb Assy (ep) For Use Outside Of North America
2
5041480
Float Chamber For Use Outside Of North America
2
5041280
Поплавковая камера
3
5041281
Float Chamber Gskt
4
5041643
Винт
5
5040766
Поплавок
6
5040767
Float Arm Pin
7
5041637
Винт
8
5041283
Float Valve
9
5041291
Main Jet (#93) For Use Outside Of North America
10
5041284
Plug For Use In North America
11
5041438
Main Jet (#92) For Use In North America
12
5041436
Plug For Use In North America
13
5041292
Slow Jet (#39) For Use In North America
13
5041293
Slow Jet (#40) For Use Outside Of North America
14
5041434
Main Nozzle For Use In North America
14
5041481
Main Nozzle For Use Outside Of North America
15
5041279
Уплотнительное кольцо
16
5041282
Пластина
17
5041640
Винт
18
5040768
Carburetor Cover
19
5041286
Carb Cover Gasket
20
5041642
Винт
21
5041437
Stop Screw
22
5041435
Пружина
23
5041285
Stop Screw R, Te
24
5041287
Nut R, Te
25
5041288
Drain Screw
26
5041289
Прокладка
27
5040294
Retaining Ring For Use Outside Of North America
28
5040295
Cap For Use Outside Of North America
29
5040298
Rubber Boot For Use Outside Of North America
30
5040300
Plunger Complete For Use Outside Of North America
31
5040299
Coil Spring For Use Outside Of North America
32
5041469
Diaphragm Cover For Use Outside Of North America
33
5041607
Screw For Use Outside Of North America
34
5040296
Drain Screw For Use Outside Of North America
35
5040297
Gasket For Use Outside Of North America
36
5041482
Check Valve For Use Outside Of North America
37
5041396
Carb Repair Kit
NS
5041796
Kit, 9.8 High Alt Optional Accessory
