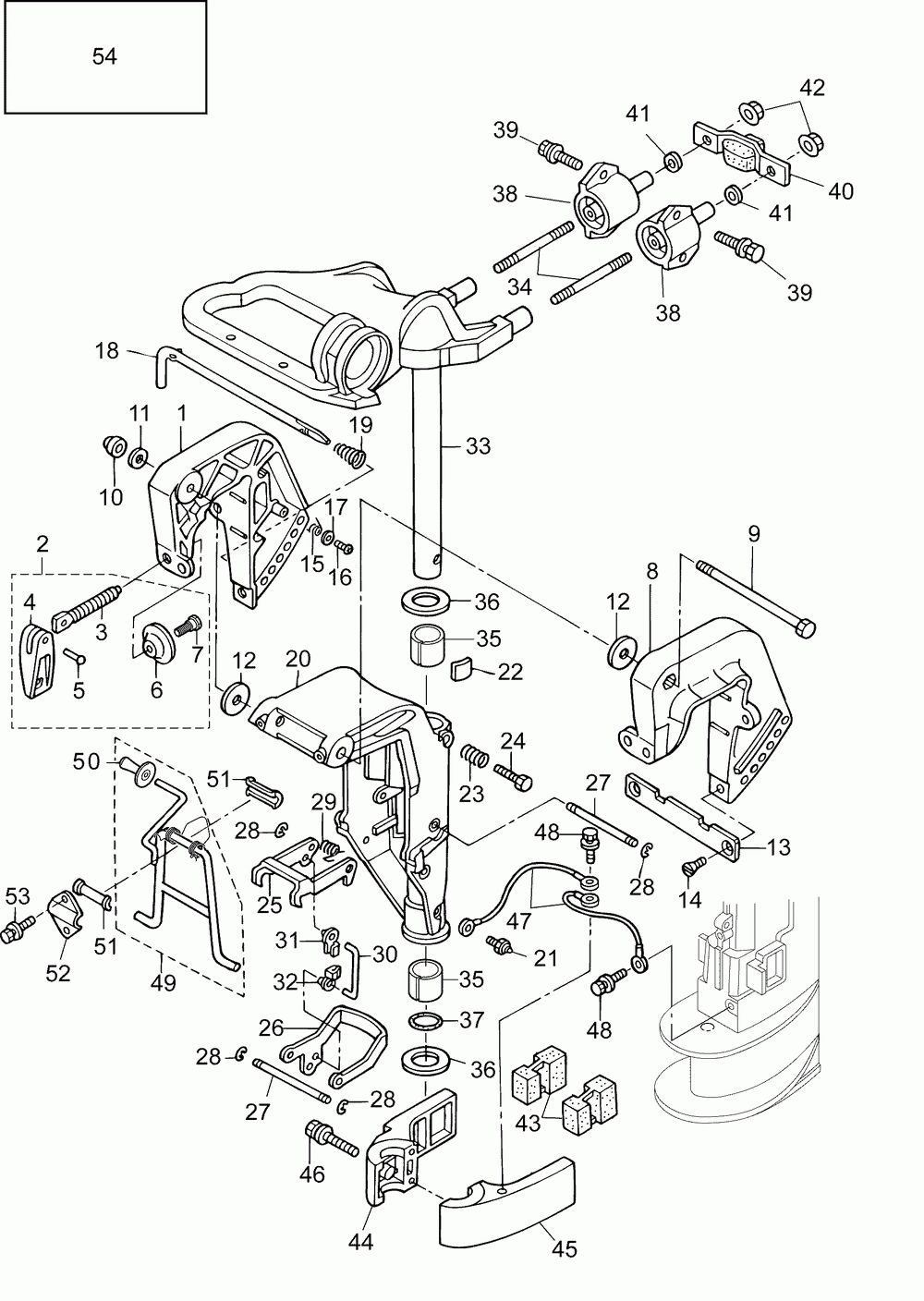

16-4_stern & swivel bracket (r, te models)

Evinrude 9.8 PORTABLE E10R4INS
Evinrude
#oem кодцена
1
5041418
Clamp Bracket (r) Starboard
2
5041416
Clamp Screw Kit
3
5041334
Clamp Screw
4
5040045
Clamp Screw Handle
5
5040769
Заклёпка
6
5040033
Clamp Screw Pad (010 Per Pack)
7
5040770
Shoulder Bolt
8
5041419
Clamp Bracket (l) Port
9
5040016
Болт
10
5041655
Nylon Nut
11
5041669
Шайба
12
5040011
Washer (010 Per Pack)
13
5040507
Distance Plate
14
5041636
Винт
15
5040151
Stern Brckt Spring (010 Per Pack)
16
5041637
Винт
17
5040152
Washer (010 Per Pack)
18
5040090
Штанга
19
5040150
Spring, Thrust Rod
20
5041420
Swivel Bracket
21
5040055
Масленка
22
5040060
Стопор фрикционный
23
5040071
Friction Spring (010 Per Pack)
24
5041553
Болт
25
5041377
Reverse Lock
26
5041376
Reverse Lock Arm
27
5040531
Reverse Lock Rod
28
5041681
Е-Кольцо
29
5040530
Rev Lock Spring
30
5041375
Reverse Lock Link
31
5040772
Rod Snap
32
5041118
Rod Snap
33
5041415
Steering Shft Assy
34
5041330
Шпилька
35
5040092
Втулка
36
5040093
Thrust Plate Upper
37
5040091
O-ring (010 Per Pack)
38
5041405
Rubber Mount Upper
39
5041573
Болт
40
5041332
Damper (upper)
41
5041669
Шайба
42
5041331
Гайка
43
5041329
Rubber Mount Lower
44
5041412
Mount Bracket (r) Starboard
45
5041413
Mount Bracket (l) Port
46
5041566
Болт
47
5040252
Ground Strap Drive Shaft Housing - Mount Bracket
48
5041557
Болт
49
5041335
Tilt Stopper Assy
50
5040496
Tilt Stopper Grip (010 Per Pack)
51
5040235
Втулка
52
5040154
Setting Plate
53
5041557
Болт
54
5041382
Rigging Bolt Set Standard Size
