FRONT CASE PART Запчасти для квадроциклов ATV Stels HiSun ATV 400 H (Все года)

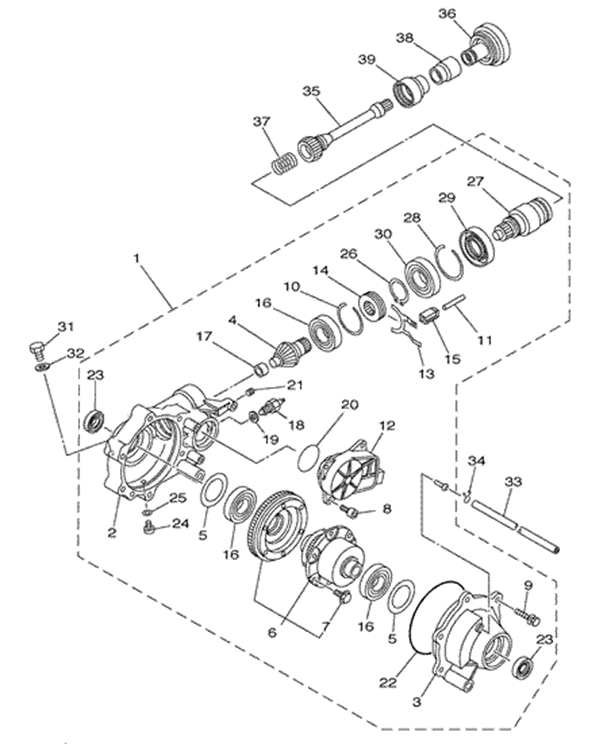

FRONT CASE PART

Stels HiSun ATV 400 H

oem код

название

цена

45600-023-04

gearshift assy,front bridge

45600-023-04-1

right crankcase cover

45600-023-04-7

left crankcase

45600-023-04-12

toper gear wheel,clutch

45600-023-04-5

fuel seal ?38

45600-023-04-17-2

differential speed outer

16674-10-25

Болт с фланцем M10х1.25х25мм , сталь

70.1-8-20

Болт с цил.головк.и вн.шестигр.M8х1.25х25мм, сталь

16674-8-25

Болт с фланцем M8х1.25х25мм, сталь

clip spring

cylinder pin ?5X46

divided move assy

fork

clutch gear gasket

rank

6007 bearing

rolled needle bearing 15BM2112

transducer

copper cushion M10

seal o-ring

copper fuel spout

O-seal ring ?140

fuel seal ?38

bolt M10X16

copper washer ?10

clip spring ?37

clutch gear wheel

clip spring ?72

fuel seal

16008 bearing

bolt M14X15

copper washer M14

front bridge fuel tube

45600-023-04-3

clip clamp,fuel tube

45600-023-02-3

long connecting ending

45600-023-02-2

dust cover B

45600-023-02-6

Пружина

45600-023-02-5

short connecting ending

45600-023-02-4

dust cover A

45600-023-04-17-30
