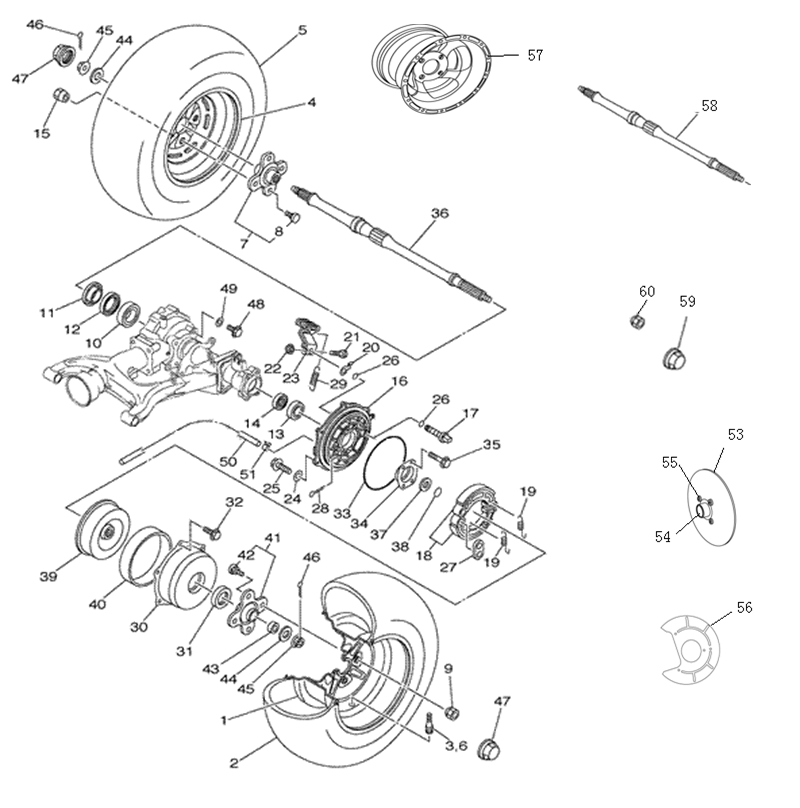

REAR BRIDGE PART

Stels HiSun ATV 400 H

REAR BRIDGE PART

#

oem код

название

цена

1

rear wheel rim 12?7.5

rear wheel rim 12?7.5

2

rear wheel tyre 25?10-12

rear wheel tyre 25?10-12

3

valve core

valve core

4

rear wheel rim 12?7.5

rear wheel rim 12?7.5

5

rear wheel tyre 25?10-12

rear wheel tyre 25?10-12

6

valve core

valve core

7

53200-023-04-1R

connecting plate,right flang

connecting plate,right flang

8

setting bolt,front wheel shaft

setting bolt,front wheel shaft

9

nut M10,wheel tyre

nut M10,wheel tyre

10

53200-023-03-21

bearing 6008

bearing 6008

11

fuel seal?69

fuel seal?69

12

fuel seal?68

fuel seal?68

13

53200-023-02-34

bearing 6228/2RS

bearing 6228/2RS

14

53200-023-02-33

fuel seal?52

fuel seal?52

15

nut M10,wheel tyre

nut M10,wheel tyre

16

53200-023-02-10

Basic plate,brake

Basic plate,brake

17

cam

cam

18

Тормозные колодки (барабан), комплект

Тормозные колодки (барабан), комплект

19

53200-023-02-22

draw spring

draw spring

20

53200-023-02-14

needle

needle

21

Болт с фланцем M6х1.0х30мм, сталь

Болт с фланцем M6х1.0х30мм, сталь

22

self-locked nutM6

self-locked nutM6

23

53200-023-02-13

brake draw wire comp

brake draw wire comp

24

53200-023-02-23

copper cushion ?6

copper cushion ?6

25

Болт с фланцем M6х1.0х12мм, сталь

Болт с фланцем M6х1.0х12мм, сталь

26

Indictator?14

Indictator?14

27

cushion

cushion

28

cotter pin 3?20

cotter pin 3?20

29

brake spring

brake spring

30

protection cover,brake plate

protection cover,brake plate

31

fuel seal?70??4

fuel seal?70??4

32

53200-023-02-26

bolt M6?12

bolt M6?12

33

53200-023-02-11

fuel seal ?69

fuel seal ?69

34

53200-023-02-12

pressure bowl

pressure bowl

35

bolt M8?40

bolt M8?40

36

long shaft,rear bridge

long shaft,rear bridge

37

?38 washer

?38 washer

38

seal o-ring ?26

seal o-ring ?26

39

brake drum

brake drum

40

rubber sheath,dustcover

rubber sheath,dustcover

41

53200-023-04-1L

connecting plate,left flang

connecting plate,left flang

42

setting bolt,front wheel shaft

setting bolt,front wheel shaft

43

rubber sheath,dustcover

rubber sheath,dustcover

44

plate cushion ?16

plate cushion ?16

45

open groove nut M16

open groove nut M16

46

pin 3?20,cotter

pin 3?20,cotter

47

Locked nut,wheelshaft

Locked nut,wheelshaft

48

Болт с фланцем M10х1.25х25мм , сталь

Болт с фланцем M10х1.25х25мм , сталь

49

cushion ?10

cushion ?10

50

53200-023-02-15

brake rubber tube

brake rubber tube

51

53200-023-02-16

clip spring,rubber tube

clip spring,rubber tube

52

rear bridge assy

rear bridge assy

53

brake plate

brake plate

54

53200-023-04-2L

connecting plate,left flang

connecting plate,left flang

55

brake plate

brake plate

56

rear brake plate cover(for rear disc brake)

rear brake plate cover(for rear disc brake)

57

rear wheel rim 12?8

rear wheel rim 12?8

58

53200-023-04-20

shaft,rear bridge

shaft,rear bridge

59

decorative cover(for aluminum rim)

decorative cover(for aluminum rim)

60

nut M10,wheel tyre

nut M10,wheel tyre
