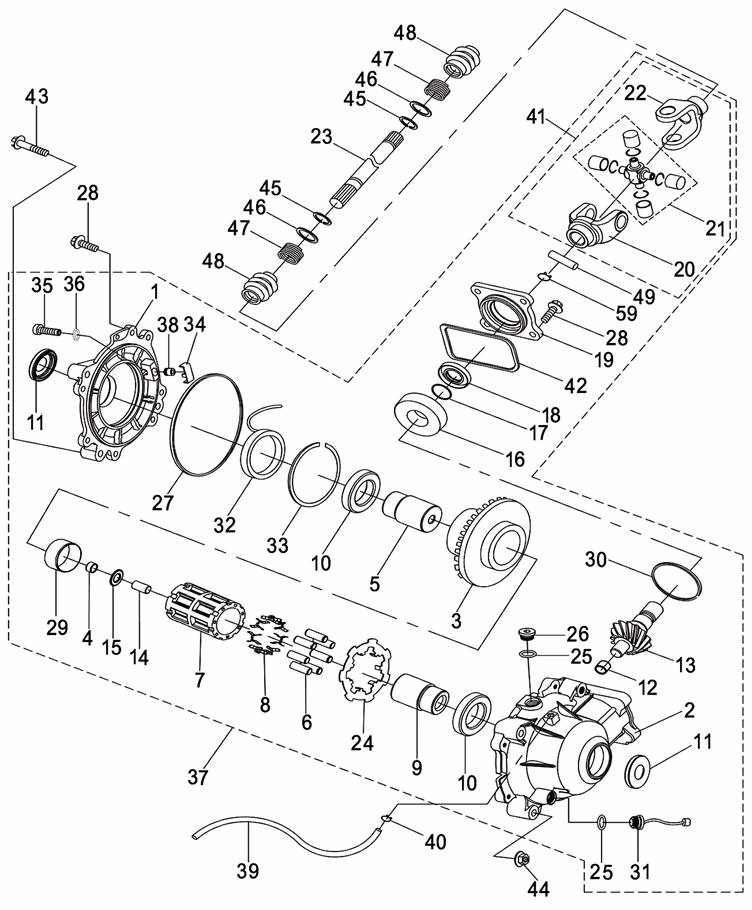

Передний редуктор

Stels HiSun ATV 800 GT

Передний редуктор

#

oem код

название

цена

1

Front Bridge Body

Front Bridge Body

2

Front Bridge Body Cover

Front Bridge Body Cover

3

Front Bridge Driven Gear

Front Bridge Driven Gear

4

Locating Shaft Sleeve

Locating Shaft Sleeve

5

Right C.V.Axle

Right C.V.Axle

6

Roller

Roller

7

Муфта блокировки полуосей переднего редуктора

Муфта блокировки полуосей переднего редуктора

8

Пружинный Зажим

Пружинный Зажим

9

Left C.V.Axle

Left C.V.Axle

10

Ball Bearing 6008C3

Ball Bearing 6008C3

11

Front Bridge Constant Velocity Universal Joint Oil Seal

Front Bridge Constant Velocity Universal Joint Oil Seal

12

Driving Gear Shaft Sleeve

Driving Gear Shaft Sleeve

13

Front Bridge Driving Gear

Front Bridge Driving Gear

14

Locating Shaft

Locating Shaft

15

Needle Spring

Needle Spring

16

Ball Bearing 6008C3

Ball Bearing 6008C3

17

Adjusting Washer

Adjusting Washer

18

Oil Seal 25X47X8

Oil Seal 25X47X8

19

Front Bridge Gasket Cover

Front Bridge Gasket Cover

20

Yokes 1

Yokes 1

21

Cross Axle

Cross Axle

22

Yokes 2

Yokes 2

23

Front Transmission Shaft

Front Transmission Shaft

Вал привода переднего моста

Вал привода переднего моста

24

Supporting Bracket Fixing Plate

Supporting Bracket Fixing Plate

25

O-Ring

O-Ring

26

Oil Drain Bolt

Oil Drain Bolt

27

Front Cover Duct

Front Cover Duct

28

Болт с фланцем M8х1.25х25мм, сталь

Болт с фланцем M8х1.25х25мм, сталь

29

Driven Gear Shaft Sleeve

Driven Gear Shaft Sleeve

30

Locating Plate Pad

Locating Plate Pad

31

Speed Sensor

Speed Sensor

32

Induction Coil Assy

Induction Coil Assy

33

Spring Circlip 106.5?1.2

Spring Circlip 106.5?1.2

34

Adjusting Pad

Adjusting Pad

35

Screw M5X18

Screw M5X18

36

Adjusting Pillar O-Ring

Adjusting Pillar O-Ring

37

Front Bridge Differential Comp.

Front Bridge Differential Comp.

Редуктор переднего моста в сборе

Редуктор переднего моста в сборе

38

Adjusting Column

Adjusting Column

39

Aeration Rubber Tube

Aeration Rubber Tube

40

Steel Wire Jump Ring

Steel Wire Jump Ring

41

Cross Universal Joint Assy

Cross Universal Joint Assy

42

Gasket Duct

Gasket Duct

43

Hex Flang Bolt M10?1.25?80

Hex Flang Bolt M10?1.25?80

44

Hex Flang Self-Locked Nut M10?1.25

Hex Flang Self-Locked Nut M10?1.25

45

Shaft Spring Circlip D=17.5??=1

Shaft Spring Circlip D=17.5??=1

46

Front Driving Shaft Circlip 20X26X1

Front Driving Shaft Circlip 20X26X1

47

Front Driving Shaft Spring

Front Driving Shaft Spring

48

Front Driving Shaft Dust Cover

Front Driving Shaft Dust Cover

49

Locating Pin

Locating Pin

50

Jump Ring

Jump Ring
