Задний редуктор Запчасти для квадроциклов ATV Stels HiSun ATV 800 GT (Все года)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

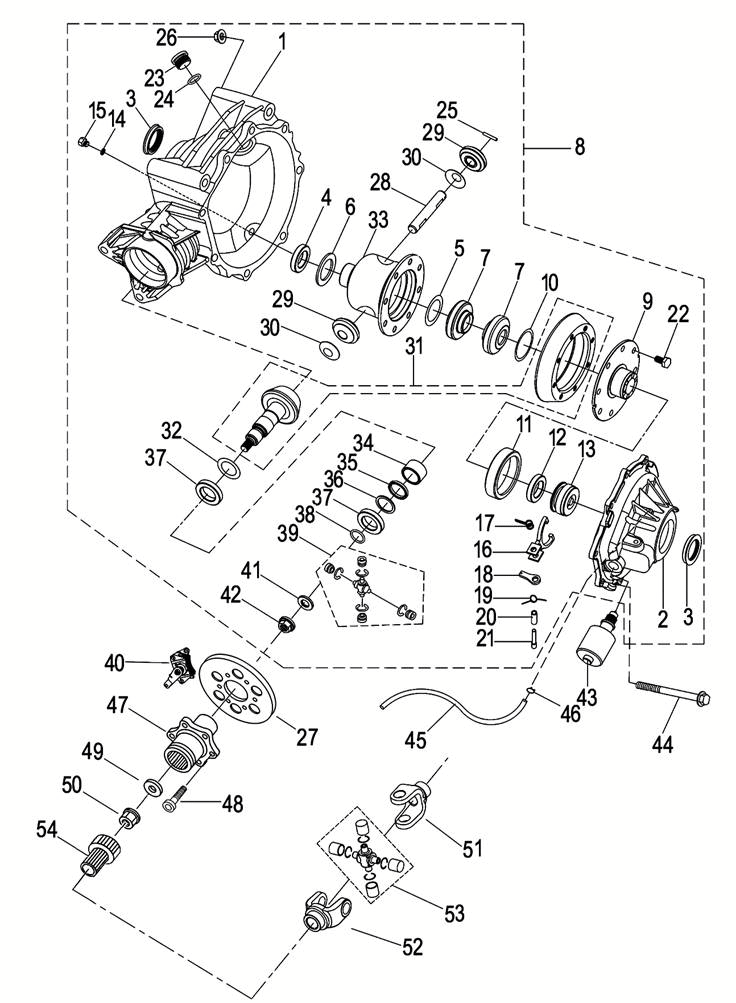

Задний редуктор

Stels HiSun ATV 800 GT

Задний редуктор

#

oem код

название

цена

1

Rear Bridge Reducer Body

Rear Bridge Reducer Body

2

Rear Bridge Reducer Body Cover

Rear Bridge Reducer Body Cover

3

Rear Constant Velocity Universal Joint Assy Oil Seal

Rear Constant Velocity Universal Joint Assy Oil Seal

4

Bearing 32008E

Bearing 32008E

5

Adjusting Pad 0.1

Adjusting Pad 0.1

6

Adjusting Pad 0.15

Adjusting Pad 0.15

7

Planet Driven Gear

Planet Driven Gear

8

Speed Reducer,Rear Bridge

Speed Reducer,Rear Bridge

Редуктор заднего моста в сборе

Редуктор заднего моста в сборе

9

Connecting Disc, Driven Gear

Connecting Disc, Driven Gear

10

Connecting Disc Pad 0.1

Connecting Disc Pad 0.1

Connecting Disc Pad 0.2

Connecting Disc Pad 0.2

11

Bearing 32010E

Bearing 32010E

12

Bearing Seat

Bearing Seat

13

Clutch Driving Claw

Clutch Driving Claw

14

Oil Drain Hole Gasket

Oil Drain Hole Gasket

15

Oil Drain Bolt

Oil Drain Bolt

16

Shifting Fork Assy

Shifting Fork Assy

17

Jump Ring

Jump Ring

18

Supporting Bracket

Supporting Bracket

19

Restore Spring

Restore Spring

20

Shifting Fork Shaft Sleeve

Shifting Fork Shaft Sleeve

21

Shifting Fork Column Pin

Shifting Fork Column Pin

22

Differential Bolt M10?1.25?20

Differential Bolt M10?1.25?20

23

Rear Bridge Filler Bolt

Rear Bridge Filler Bolt

24

Rear Bridge Filler O-Ring

Rear Bridge Filler O-Ring

25

Spring Column Pin ?4?28

Spring Column Pin ?4?28

26

Hex Flang Self-Locked Nut M10?1.25

Hex Flang Self-Locked Nut M10?1.25

27

Parking Brake Disc

Parking Brake Disc

Диск тормозной, стояночного тормоза

Диск тормозной, стояночного тормоза

28

Planet Gear Column Pin

Planet Gear Column Pin

29

Planet Gear

Planet Gear

30

Planet Gear Adjusting Pad

Planet Gear Adjusting Pad

31

Main Driven Gear

Main Driven Gear

32

Rear Bridge Driving Gear Pad

Rear Bridge Driving Gear Pad

33

Rear Differential Shell

Rear Differential Shell

34

Spacer

Spacer

35

Adjusting Spacer Pad

Adjusting Spacer Pad

36

Adjusting Spacer

Adjusting Spacer

37

Bearing 32206E

Bearing 32206E

38

O-Ring ?24??3

O-Ring ?24??3

39

Cross Universal Joint

Cross Universal Joint

40

Parking Brake Caliper

Parking Brake Caliper

41

Washer 14?30?4

Washer 14?30?4

42

Self-Locked Nut M14X1.5

Self-Locked Nut M14X1.5

43

Solenid Valve Assy

Solenid Valve Assy

44

Hex Flang Bolt M10?1.25?145

Hex Flang Bolt M10?1.25?145

45

Rear Bridge Aeration Rubber Pipe

Rear Bridge Aeration Rubber Pipe

46

Steel Wire Jump Ring

Steel Wire Jump Ring

47

Disc Brake Mounting Seat

Disc Brake Mounting Seat

48

Hex Flang Bolt M6?11-?8?17

Hex Flang Bolt M6?11-?8?17

49

Washer ?12??30?4

Washer ?12??30?4

50

Nut M12?1.25

Nut M12?1.25

51

Yokes 1

Yokes 1

52

Yokes 2

Yokes 2

53

Cross Axle

Cross Axle

54

Connecting Spline,Rear Bridge Driving Shaft

Connecting Spline,Rear Bridge Driving Shaft

Вал привода заднего моста

Вал привода заднего моста
