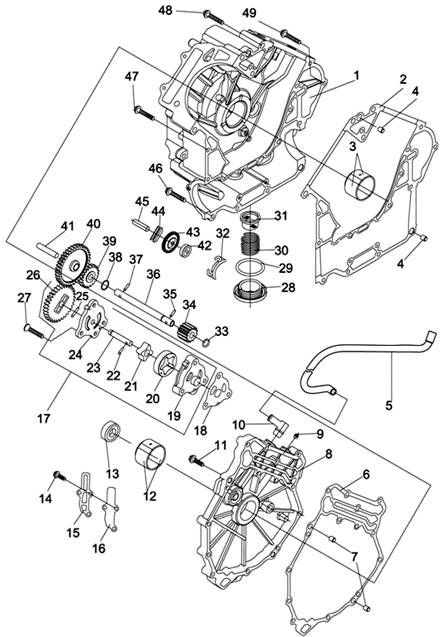

Right crankcase

Stels HiSun ATV 800 GT
Stels
#oem кодцена
1
11200-F68-0000
Right Crankcase Assy
2
11101-F68-0000
Gasket, Middle Crankcase
3
92201-F68-0000
Crankshaft Bearing Bushing Rb9173Kl/Rb9173Ku
4
90803-F68-0000
Pin ?10?15.8
5
18630-F68-0000
Выхлопная труба
6
21241-F68-0000
Gasket, Crankcase Cover
7
90802-F68-0000
Pin ?8?11.8
8
11400-F68-0000
Cover, Crankcase
9
92007-F68-0000
Crankcase Block
10
11402-F68-0000
Exhaust Pipe,Crankcase
11
30.06.5787
Bolt M6?30
12
92202-F68-0000
Bearing Bushing,Crankshaft Cover Mb9340Ks-Std
13
91104-F68-0000
Oil Seal ?34??52?7
14
15.06.5789
Bolt M6?15
15
15307-F68-0000
Plate Valve Piece
16
15306-F68-0000
Valve Piece
17
15100-F68-0000
Oil Pump Assy
18
15101-F68-0000
Gasket, Oil Pump
19
15110-F68-0000
Топливный Насос
20
15130-F68-0000
Outer Rotor
21
15140-F68-0000
Inner Rotor
22
15141-F68-0000
Column Pin ?4?16
23
15150-F68-0000
Shaft,Oil Pump
24
15120-F68-0000
Cover,Oil Pump
25
19713-F68-0000
Column Pin
26
15161-F68-0000
Gear,Oil Pump
27
819-6-30
Bolt M6?30
28
11107-F11-0000
Cover,Bolt
29
91205-F11-0000
O-Ring ?53?3.4
30
14761-F11-0000
Spring, Oil Filter Net
31
15203-F11-0000
Oil Filter Net
32
14631-F68-0000
Baffle ,Chain
33
90710-F68-0000
Circlip ?10
34
19714-F68-0000
Gear,Water Pump ?
35
19722-F68-0000
Column Pin ?4?21
36
19709-F68-0000
Shaft ?10?171
37
19722-F68-0000
Column Pin ?4?21
38
90601-F68-0000
Washer ?10.3??17??1
39
19712-F68-0000
Gear,Water Pump ?
40
15160-F68-0000
Wheel,Oil Pump
41
31230-F68-0000
Shaft ?10?50
42
276-6200RS
Bearing 6200Rs
43
15320-F68-0000
Separator(Fuel&Air) Assy
44
91214-F68-0000
V Gasket
45
31230-F68-0000
Shaft ?10?50
46
5787-6-65
Bolt M6?65
47
5787-6-80
Bolt M6?80
48
5787-8-55
Bolt M8?55
49
5787-8-65
Bolt M8?65
