Left crankcase & Water pump Запчасти для квадроциклов ATV Stels HiSun ATV 800 GT (Все года)

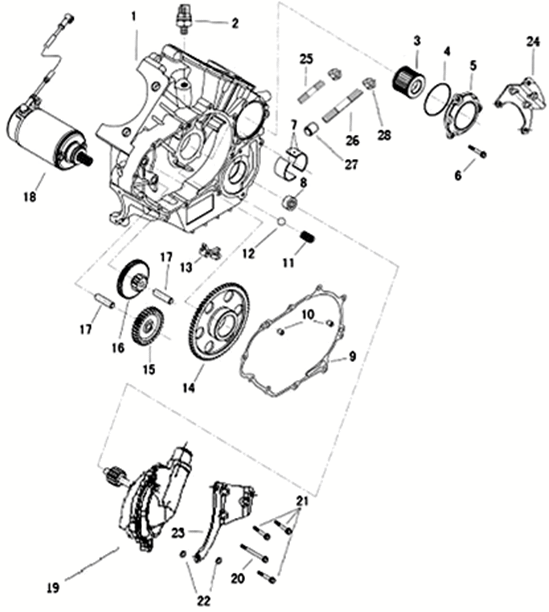

Left crankcase & Water pump

Stels HiSun ATV 800 GT

oem код

название

цена

11100-F68-0000

Left Crankcase Assy

15308-F68-0000

Sensor, Oil Pressure

15201-F68-0000

Element Assy Oil Cleaner

15210-F68-0000

Element Assy Oil Cleaner

91204-F68-0000

O-Ring ?61.5?2.4

15201-F68-0000

Cover,Element Assy Oil Cleaner

20.06.5787

Bolt M6?20

15308-F68-0000

Crankshaft Bearing Bushing Rb9173Kl/Rb9173Ku

276-1010

Needle Bearing 1010

11323-F68-0000

Gasket, Left Crankcase Cover

90802-F68-0000

Pin ?8?11.8

16363-F68-0000

Spring, Relief Valve

15361-F68-0000

Steel Ball, Relief Valve Sr11.2

Plate,Chain

Dish-Shaped Gear

Middle Gear

Dual Gear

Shaft ?10?50

Starting Motor Assy

Water Pump Assy

Bolt M6?65

Bolt M6?40

Washer ?6??12?1.5

Engine Right Cover Mounting Bracket 4

54281-F68-0000

Engine Right Cover Mounting Bracket 1

92002-F68-0000

Bolt M10?62

92001-F68-0000

Bolt M10?70

90805-F39-0000

Locating Pin ?12?15.8

6187-10-00

Self-Locked Nut M10?1.25
