Left crankcase cover & Magnetor

Stels HiSun ATV 800 GT

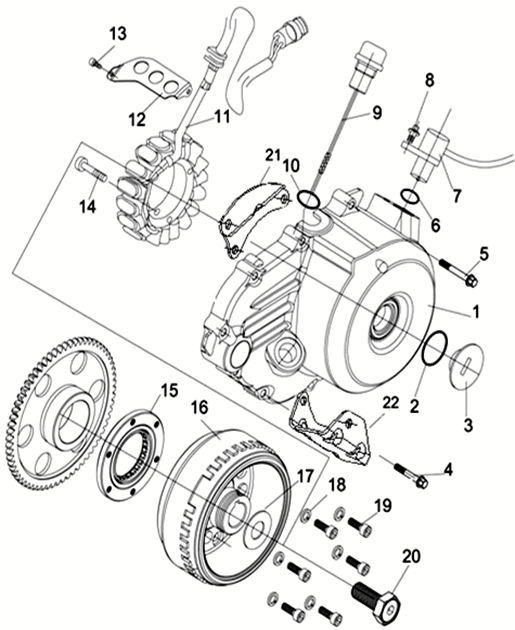

Left crankcase cover & Magnetor

#

oem код

название

цена

1

Left Crankcase Cover

Left Crankcase Cover

2

O-Ring ?24?2.5

O-Ring ?24?2.5

3

Cover

Cover

4

Bolt M6?30

Bolt M6?30

5

Bolt M6?40

Bolt M6?40

6

O-Ring ?18??1.8

O-Ring ?18??1.8

7

Sensor,Crankcase Location

Sensor,Crankcase Location

8

Bolt M6?14

Bolt M6?14

9

Plug Oil Level

Plug Oil Level

10

O-Ring ?19?2.5

O-Ring ?19?2.5

11

Stator Assy

Stator Assy

12

Clip,Generator

Clip,Generator

13

Bolt M5?10

Bolt M5?10

14

Bolt M6?35

Bolt M6?35

15

Спрага Клатч

Спрага Клатч

16

Rotor Assy

Rotor Assy

17

Washer ?17.2??30?3

Washer ?17.2??30?3

18

Spring Washer ?8

Spring Washer ?8

19

Bolt M8?25

Bolt M8?25

20

Bolt M16?35

Bolt M16?35

21

Engine Right Cover Mounting Bracket 2

Engine Right Cover Mounting Bracket 2

22

Engine Right Cover Mounting Bracket 3

Engine Right Cover Mounting Bracket 3
