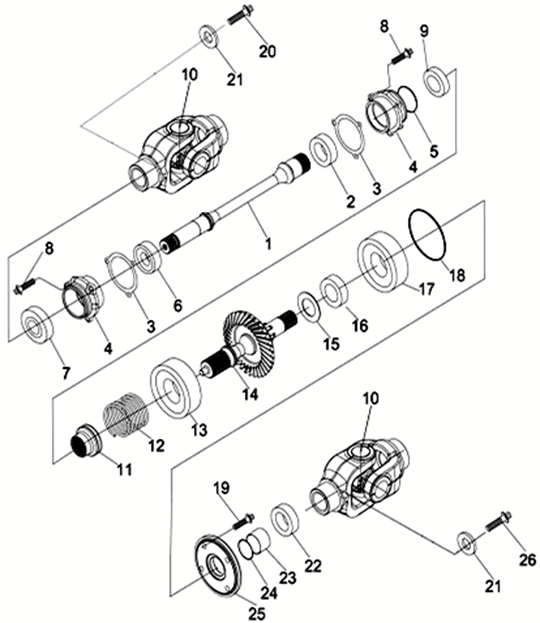

Shaft Y transmissions

Stels HiSun ATV 800 GT

Shaft Y transmissions

#

oem код

название

цена

1

Output Shaft Y-2

Output Shaft Y-2

2

Bearing 6906

Bearing 6906

3

Gasket.,Shaft Seat

Gasket.,Shaft Seat

4

Bearing Seat, Middle Drive

Bearing Seat, Middle Drive

5

O-Ring ?51?2.4

O-Ring ?51?2.4

6

Bearing 6005/P6

Bearing 6005/P6

7

Oil Seal ?25??47?7

Oil Seal ?25??47?7

8

Bolt M6?20

Bolt M6?20

9

Oil Seal ?30??47?7

Oil Seal ?30??47?7

10

Universal Joints Comp

Universal Joints Comp

11

4 Drive Combine Cover

4 Drive Combine Cover

12

Spring, Transmission Shaft

Spring, Transmission Shaft

13

Bearing 6206

Bearing 6206

14

Output Shaft Y-1

Output Shaft Y-1

15

Adjust Washer ?31.2??47?S

Adjust Washer ?31.2??47?S

16

Bushing

Bushing

17

Bearing 6305/Cm

Bearing 6305/Cm

18

O-Ring ?90?2

O-Ring ?90?2

19

Bolt M6?25

Bolt M6?25

20

Bolt M10?30?1.25

Bolt M10?30?1.25

21

Washer ?10??32?5

Washer ?10??32?5

22

Oil Seal ?32??47?7

Oil Seal ?32??47?7

23

Bushing

Bushing

24

O-Ring ?25?2.4

O-Ring ?25?2.4

25

Bearing Seat,Rear Drive

Bearing Seat,Rear Drive

26

Bolt M10?25?1.25

Bolt M10?25?1.25
