Gear box transmission Запчасти для квадроциклов ATV Stels HiSun ATV 800 GT (Все года)

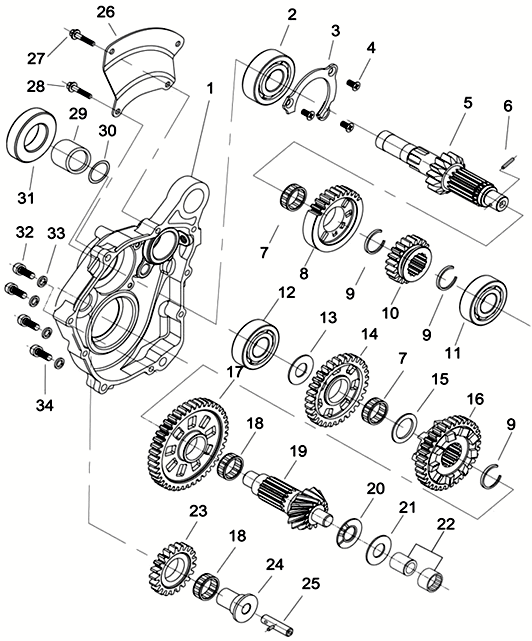

Gear box transmission

Stels HiSun ATV 800 GT

oem код

название

цена

22720-F68-0000

Cover,Gear Case

276-6305/C3

Bearing 6305/C3

22729-F68-0000

Bearing Press Plate 25?29?12.6

Bolt M6?12

Main Shaft

Column Pin ?2?18

Needle Bearing 25?29?12.6

Drive Gear (H Gear)

Circlip ?27??32?2

Drive Gear (L Gear)

Bearing 6204 Rs

Bearing 6403

Washer I ?17.3??34?2

Driven Gear (R Gear)

Washer ?25.4??33?1

Driven Gear ( H Gear )

22223-F68-0000

Driven Gear (L Gear)

92302-F68-0000

Needle Bearing 25?29?9.6

22221-F68-0000

Передаточный (или промежуточный) вал

92303-F68-0000

Needle Bearing Axk15?28?2

22232-F68-0000

Washer Ii ?15.3??32?1.5

276-NBI19?27?16

Needle Bearing Nbi15?27?16

22242-F68-0000

Idle Gear (R Gear)

22241-F68-0000

Idle Gear Shaft(R Gear)

22511-F68-0000

Reverse Gear Shaft Assy, ?12?56

21401-F68-0000

Seat Bracket,Clutch Cover

Bolt M6?35

Bolt M6?40

Bushing

O-Ring ? 25??2.4

Oil Seal ?30??47?7

Bolt M8?40

Spring Washer ?8

Bolt M8?45
