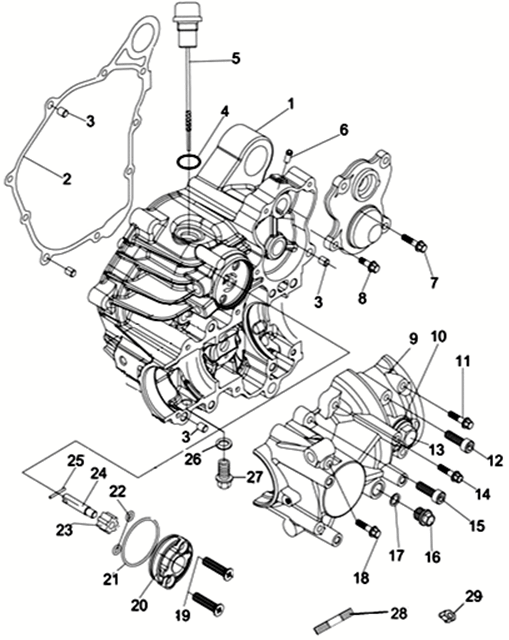

Gear box

Stels HiSun ATV 800 GT
Stels
#oem кодцена
1
22711-F68-0000
Gear Box
2
22711-F68-0000
Gasket, Gear-Box
3
90802-F68-0000
Pin ?10?14
4
91210-F11-0000
O-Ring ?19??2.5
5
15651-F68-0000
Oil Ruler
6
25162-F68-0000
Exhaust Cock
7
5787-6-35
Bolt M6?35
8
15.06.5787
Bolt M6?15
9
22730-F68-0000
Cover,Gear Case
10
91216-F39-0000
O-Ring ?20?2
11
5787-6-55
Bolt M6?55
12
70.1-8-55
Bolt M8?55
13
90120-F68-0000
Bolt M20?12?15
14
30.06.5787
Bolt M6?30
15
70.1-8-30
Bolt M8?30
16
15.12.5787
Bolt M12?15?1.25
17
90616-F68-0000
Washer ?12??18?1.5
18
5787-6-85
Bolt M6?85
19
819.1-6-30
Bolt M6?30
20
13901-F68-0000
Oil Pump
21
13504-F68-0000
O-Ring ?44??2.5
22
13505-F68-0000
O-Ring ?6??2
23
13507-F68-0000
Inner Roter
24
13501-F68-0000
Shaft,Oil Pump
25
22739-F68-0000
Column Pin ?2??18
26
90609-F39-0000
Washer ?14??20?1.5
27
90135-F68-0000
Bolt(Magnetism) M14?20?1.5
28
92004-F68-0000
Bolt M10?40
29
6187-10-00
Self-Locked Nut M10?1.25
